Product Description

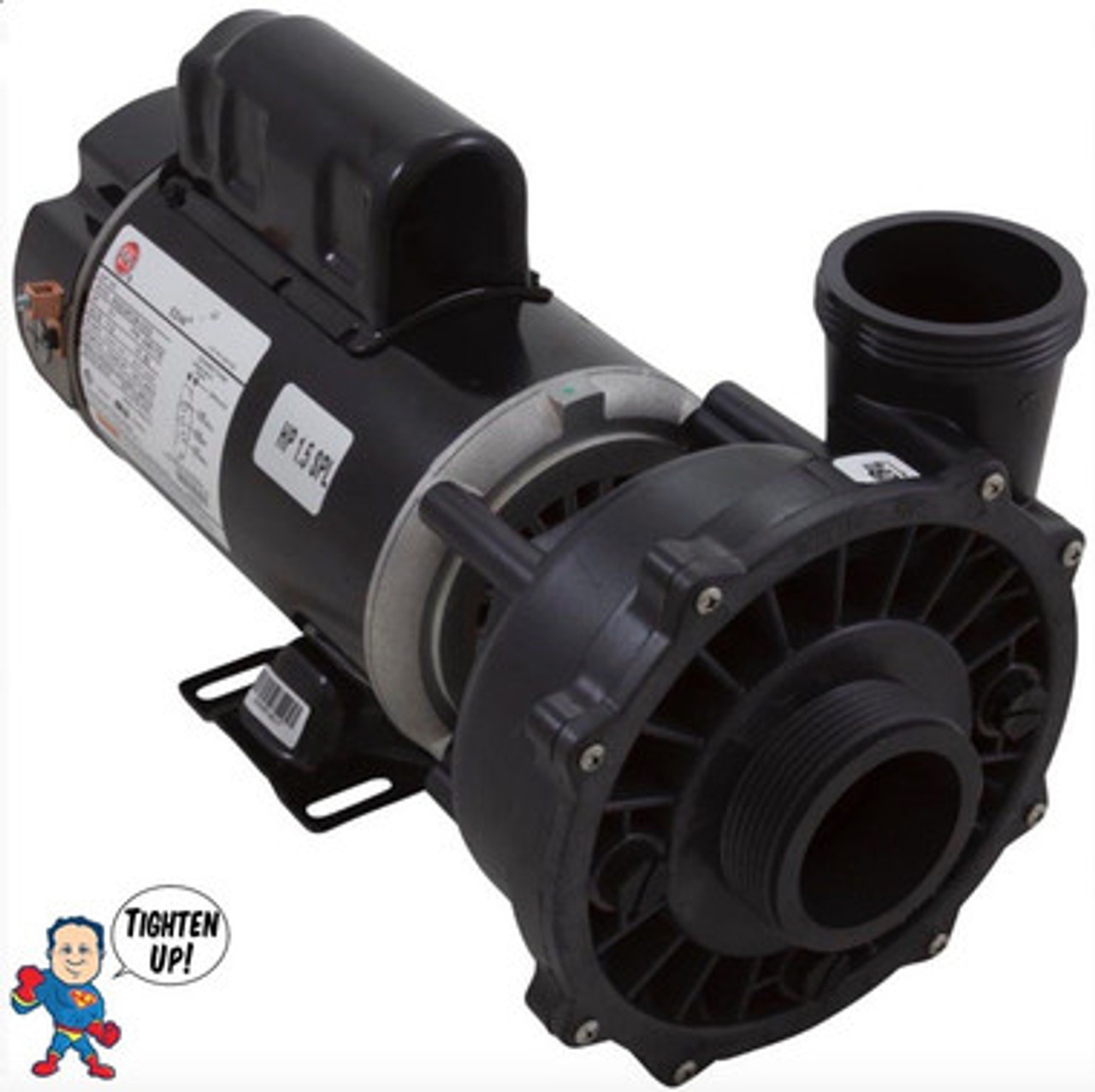

This pump is a 115V 48 Frame 2" X 2" Waterway Executive (2) Speed 1.5HP 13.3Amp on High and 4.1A on Low..
The Pressure and Suction sides measure about 3" edge to Edge across the threads..
The Waterway Executive 48 pump is thermally protected to extend the life expectancy of the motor with a highly versatile wet end.
Spa Pump Features:
- Executive wet end designed specifically for 48-frame motors
- Large 6-1/2" diameter wet end for higher head pressure
- 2" intake and discharge
- Wet end can be rotated for easy installation
- Thermally protected to extend life expectancy of motor
- Dimensions (H x W x L): 8.34" x 8.13" x 15.20"
| Complete Pump Type | Portable Spa Pump |
| Speed | 2 Speed (2-Spd) |
| Motor Voltage | 115v |
| Drain Plug Location | 3,6,9 o`clock |
| Pump to Motor Foot Types | 4a |
| Suction Style | Center |
| Suction Connection (Physical Dimension) | 3-1/16"od |
| Suction Connection Type | Male Buttress Thread (mbt) |
| Suction Pipe Size | 2" |
| Discharge Style | Side |
| Discharge Connection (Physical Dimension) | 3-1/16"od |
| Discharge Connection Type | Male Buttress Thread (mbt) |
| Discharge Pipe Size | 2" |
| Horsepower | 1.5hp |
| Motor Frame | 48 Frame Thru-Bolt |
| Motor Amperage/Wattage | 13.3A/4.1A |
| Manufacturer | Waterway |
| Pump Model | Executive |
| Volute Fastening Type | 8 Screws |
| Volute/Sealplate Number | 315-1240 |
