Product Description

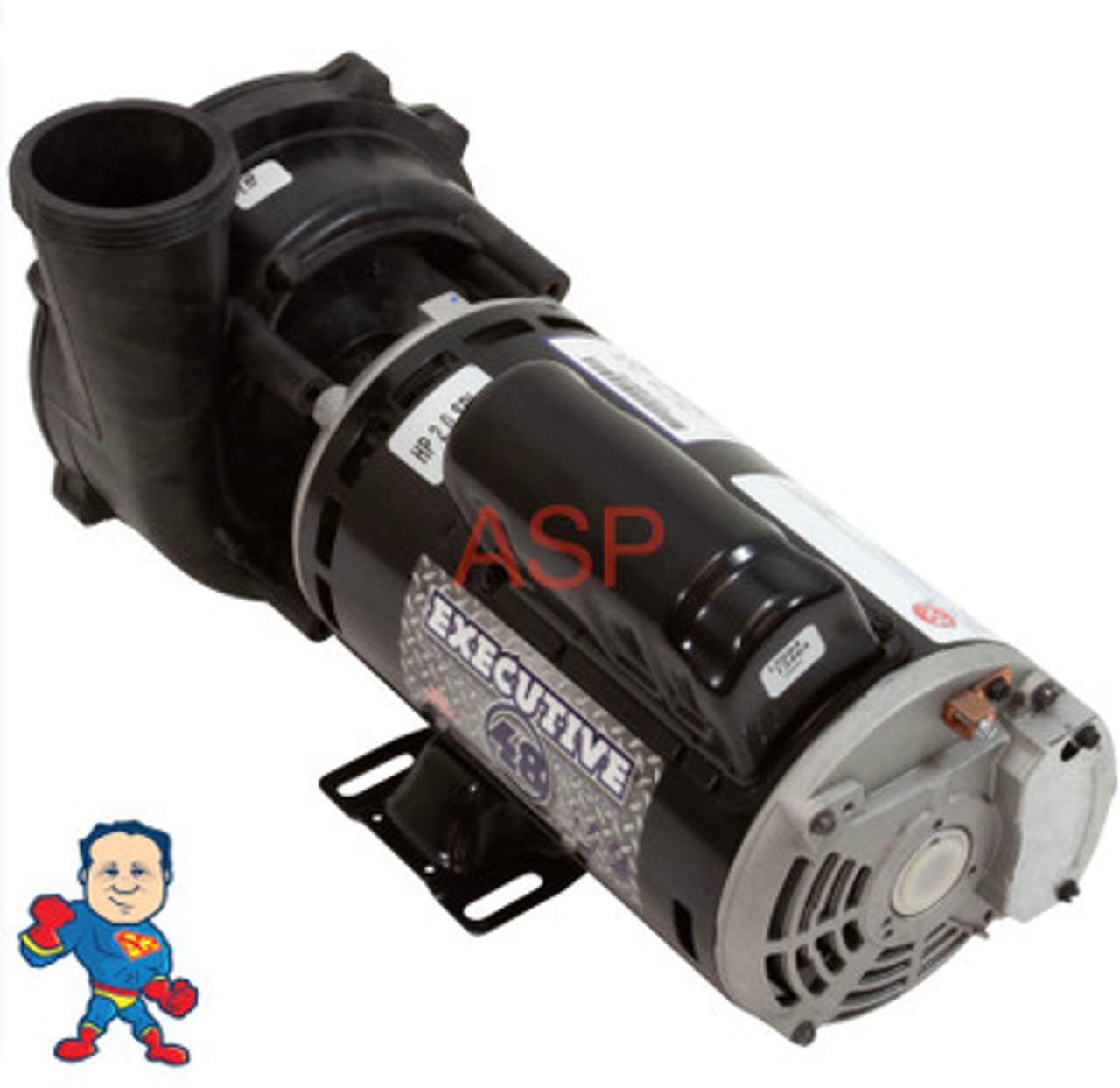

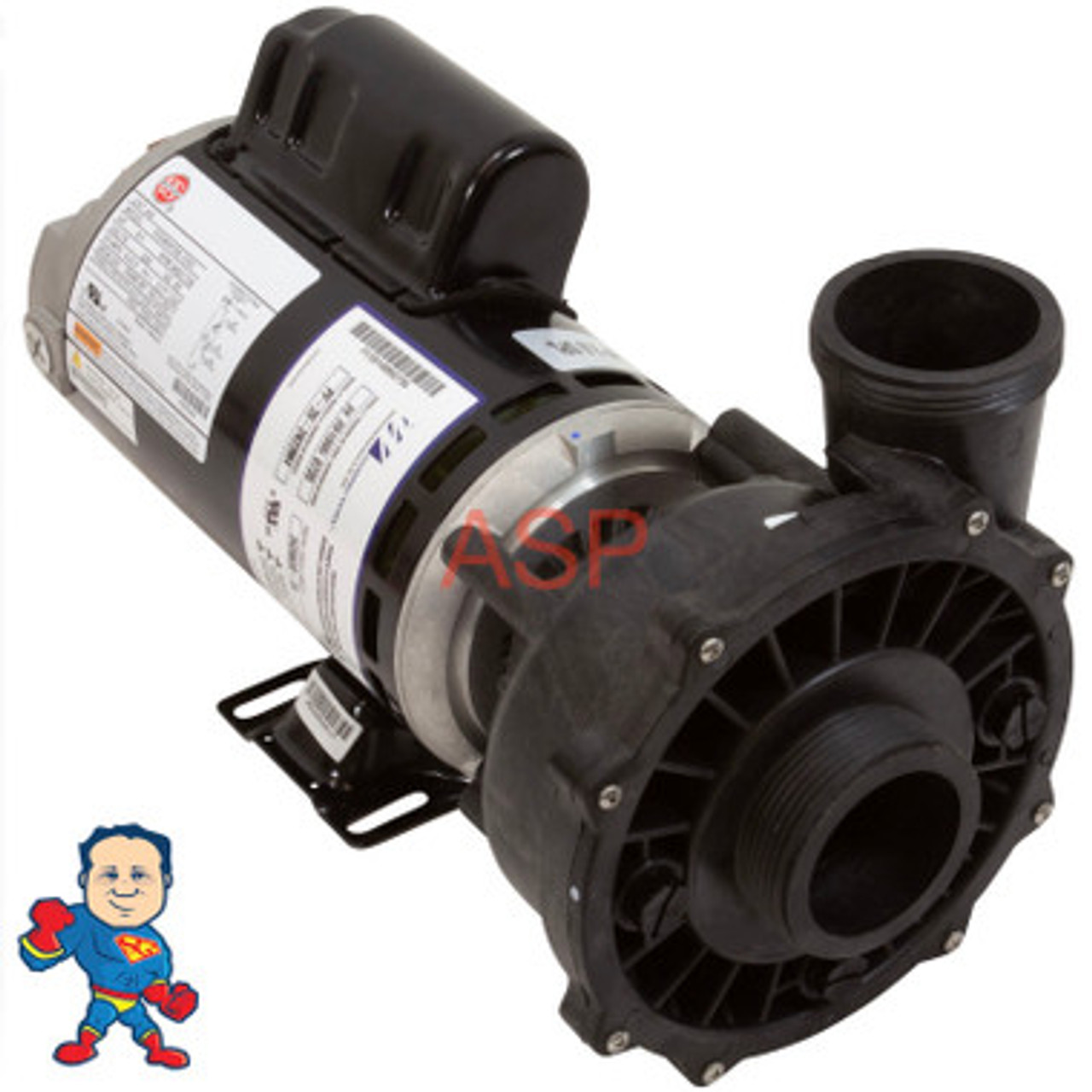

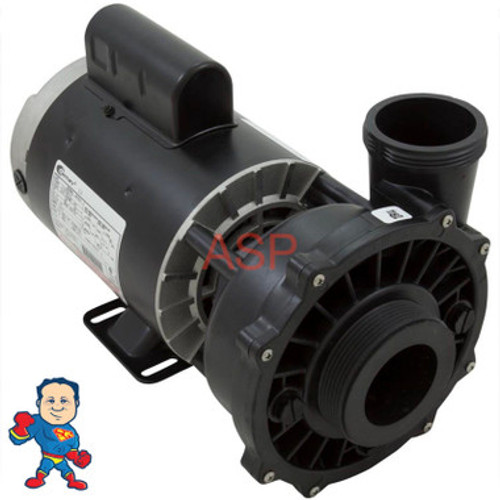

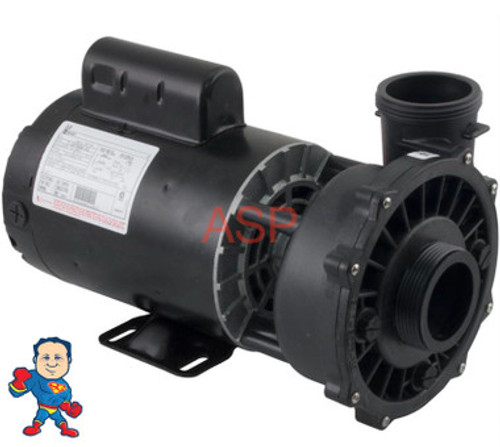

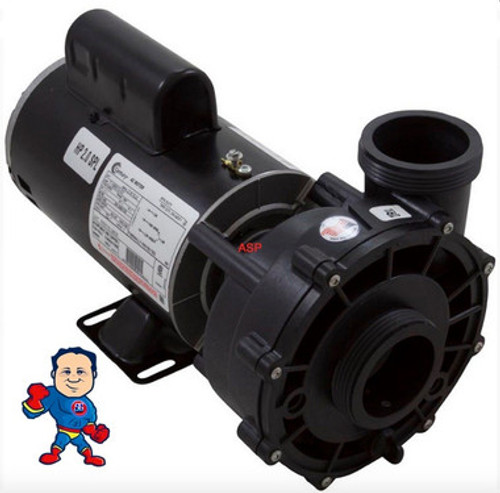

This Pump is a Waterway Executive, 2.0hp, 230v, 2-spd, 48fr, 2" x 2"..
The 2" X 2" measures about 3" across the threads..
Spa Pump Features:

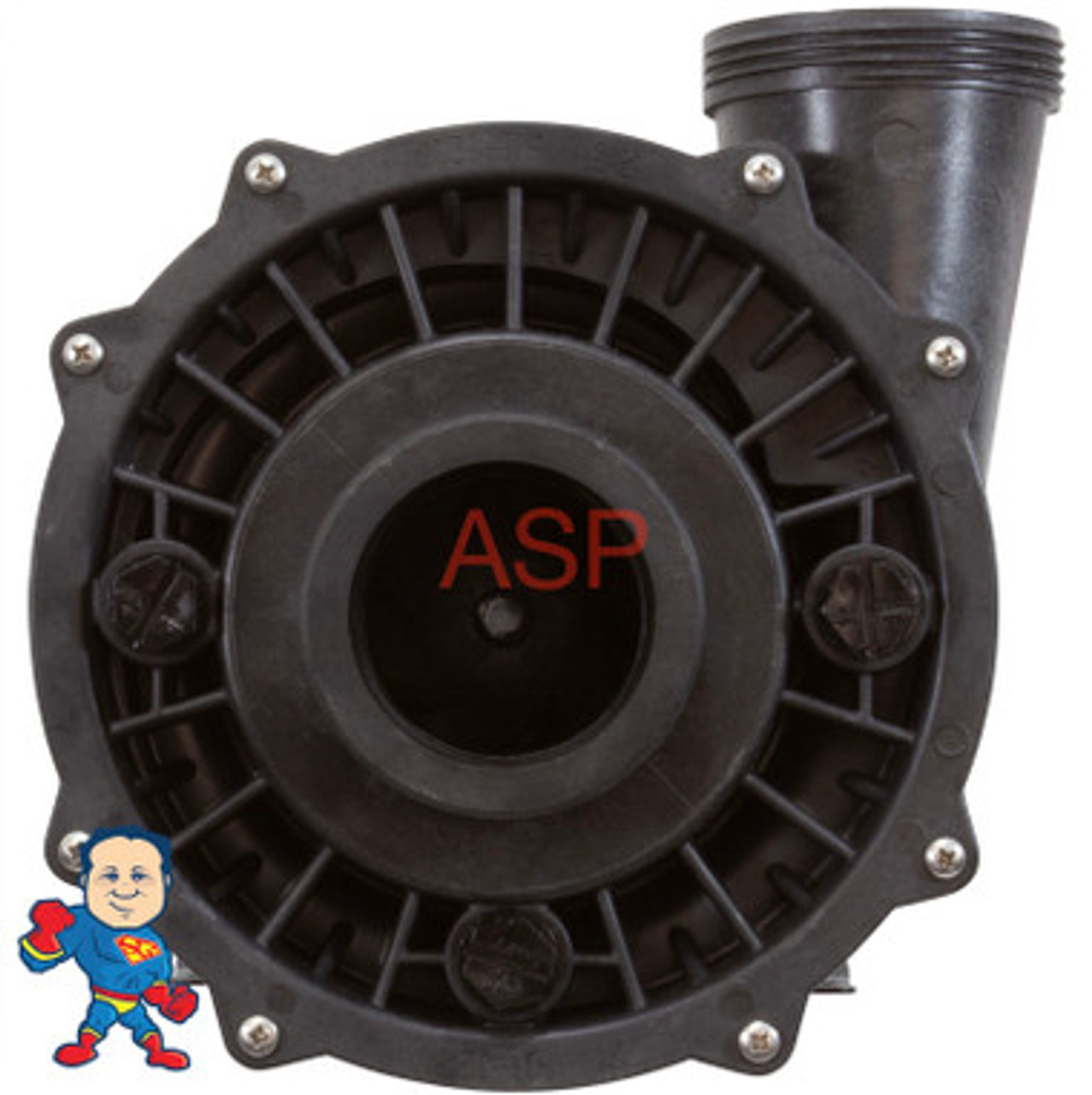

- Executive wet end designed specifically for 48-frame motors
- Large 6-1/2" diameter wet end for higher head pressure
- 2" intake and discharge
- Wet end can be rotated for easy installation
- Thermally protected to extend life expectancy of motor
- Dimensions (H x W x L): 8.34" x 8.13" x 15.72"
- Available in 1 to 4.5Hp and in single or dual speed
| Complete Pump Type | Portable Spa Pump |
| Speed | 2 Speed (2-Spd) |
| Motor Voltage | 230v |
| Drain Plug Location | 3,6,9 o`clock |
| Pump to Motor Foot Types | 4a |
| Suction Style | Center |
| Suction Connection (Physical Dimension) | 3-1/16"od |
| Suction Connection Type | Male Buttress Thread (mbt) |
| Suction Pipe Size | 2" |
| Discharge Style | Side |
| Discharge Connection (Physical Dimension) | 3-1/16"od |
| Discharge Connection Type | Male Buttress Thread (mbt) |
| Discharge Pipe Size | 2" |
| Horsepower | 2.0hp |
| Motor Frame | 48 Frame Thru-Bolt |
| Motor Amperage/Wattage | 10.5A/2.6A |
| Manufacturer | Waterway |
| Pump Model | Executive |
| Manufacturer Impeller Number | 310-4210 |
| Volute Fastening Type | 8 Screws |
| Volute/Sealplate Number | 315-1240 |
