Product Description

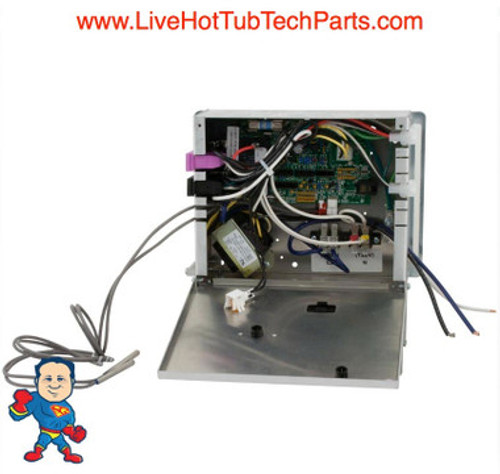

The ePACK is a universal replacement spa control system that features a water sensor instead of a pressure or flow switch so this pack will work plumbed in the pressure or suction side. Heater assembly is 15″ long, 4.0 KW and is mounted on the bottom of the spa pack.
This pack is designed to run either (1) Pump, (2) Pumps or (1) pump and (1) Blower, a Light and an ozonator as well. It can be wired 115v or 230V and it comes with a new cable for both pumps, a light and an ozonator.. The topside is 5 3/8" x 2 1/2" on the face and the hole size for the topside would be about 4 3/4" x 1 3/4".. If the hole you are trying to use the topside is is larger than this we offer blackout plates to take up the space..
We offer another easy to install retrofit kit made by Balboa that has the same support as this Modpack but in a more compact design with a fixed and remote heater here:
Balboa Fixed Heater Version: Retrofit Base Control, Balboa BPBEE, (1) or (2) Pump with 4.0kW Heater, TP200T
Balboa Remote Heater Version: Retrofit Base Control, Balboa BPBEE, (1) or (2) Pump with 4.0kW Remote Heater, TP200T
If you need a blackout plate click here.. Adapter Blackout Plate, Hydro-Quip 8-1/2" x 3-1/2". For Eco-401 or Balboa E4 Duplex Topside
If you need your ePack to run Fiber Optic add this option.. Retrofit MODPACK Fiber Optic Option This is in Addition to a New Modpack purchase
The ePack controls a 2 speed primary pump, a single speed air blower or a single speed secondary pump, a 12 volt spa light, an auxiliary light and an ozonator. This system is convertible and may be run on 120 volts.
| NAME | MODEL # | PUMP 1 | AIR BLOWER OR PUMP 2 | LIGHT | HEATER | POWER | AMPERAGE |
|---|---|---|---|---|---|---|---|
| ePack | SMTD-1500 | 1 or 2 Speed 120V/240V | 1 Speed 120V/240V | 12VAC | 4KW | 240V / 120 V | 41A / 24A 16A |
Includes the topside Keypad - 2.5 x 5.5", User's Manual, warranty card, with heater connections for 2" PVC pipe size, and power cords for your existing 2-speed pump (4-wire 40" cord), air blower (simple pigtail to splice to your existing air blower cord), light pigtail, and ozonator pigtail. Topside keypad has 57" long cable, and an optional extension cable is available.
Dimensions 11.25" tall, 10.5" wide, 3.5" deep. Heater is standard 15 inches flange to flange, and is a 4000 watt heater on 240 volts. 1000 watts on 120 volts.
The factory default settings are:
230v 4-wire incoming power
230v to heater
115v to pump
115v to air blower or second pump
12v to light
115v output for an accessory, ozonator, etc.
All of these circuits can be converted easily. See the sticker on the inside cover of your new system for details on the conversion.
