Product Description

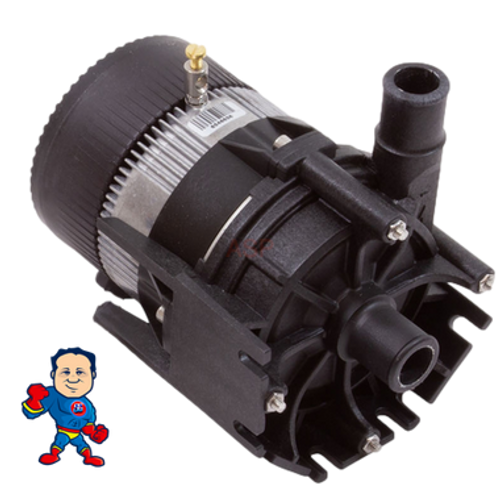

This item is a Grundfos Circulating Pump 115V with 3/4" Barbs... In my opinion this is a better pump than the Laing Brand... Spa Guy
This kit features an 18" piece of 3/4" Clear which should be enough to convert from a Laing to this pump..

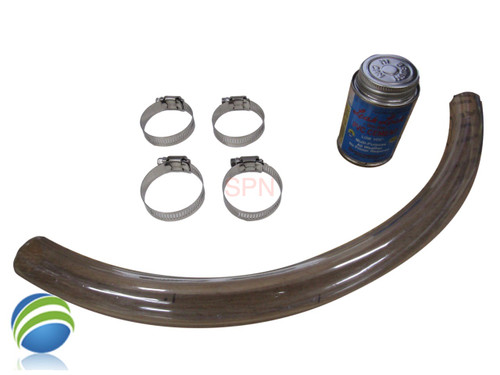

This kit comes with 18" of Clear 3/4" Tubing, (1) 3/4" Barbed Coupler, (2) Roto Clamps, (2) Worm Clamps, (2) 3/4" Street 90's and (2) 3/4" Slip x slip couplers and the wiring conversion kit to make it an Amp plug..
This pump can be used in place of a Laing Circulation pump but will require a few more parts to extend the pressure output side back to the output hose. This pump features 3/4" Barbs which will allow for 3/4" clear tube to attach to 3/4" Clear tube with a 3/4" Barbed coupler for retrofitting.
| Complete Pump Type | Circulation Pump |
| Speed | 1 Speed (1-Spd) |
| Motor Voltage | 115v |
| Suction Style | Bottom |
| Suction Connection (Physical Dimension) | 1"od, 3/4"od |
| Suction Connection Type | Smooth Barb (sb) |
| Suction Pipe Size | 1", 3/4" |
| Discharge Style | Side |
| Discharge Connection (Physical Dimension) | 1"od, 3/4"od |
| Discharge Connection Type | Smooth Barb (sb) |
| Discharge Pipe Size | 1", 3/4" |
| Horsepower | 1/15hp |
| Manufacturer | Grundfos |
Complete Pump Type Circulation Pump
Speed 1 Speed (1-Spd)
Motor Voltage 230v
Drain Plug Location 4 o`clock
Pump to Motor Foot Types Footless
Suction Style Center
Suction Connection (Physical Dimension) 1"od
Suction Connection Type Barb (b)
Suction Pipe Size 1"
Discharge Style Side
Discharge Connection (Physical Dimension) 1"od
Discharge Connection Type Barb (b)
Discharge Pipe Size 1"
Motor Amperage/Wattage 0.41A, 94w
Manufacturer Grundfos
Pump Model 59896292
Volute Fastening Type 4 Screws
