Product Description

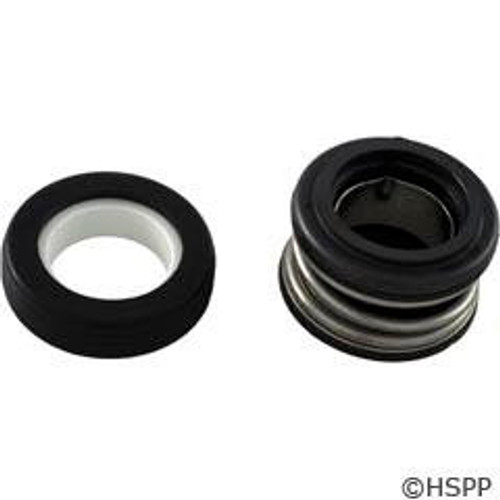

This Seal is a (BEST) Silicon Carbide Salt Resistant Upgraded Version of a PS-201 Seal used Primarily in Vico, Sta-Rite and Power Right Wetends.
Silicon Carbide’s exceptional wear and chemical resistance, enhanced dry running capability and high hardness means it is an excellent choice for aggressive, corrosive and high temperature environments.
It is 1 3/8" Across the back of the Spring Seal part that goes onto the Impeller and the Ceramic & Rubber part that goes into the Volute or Wet End Back is 1 3/8". The Hole in both parts is about 3/4". The Spring Seal part goes onto the shaft of the Impeller and the Ceramic & Rubber part that goes into the Volute. The Hole in both parts is about 3/4". To Install you should put silicon sealant on the shaft of the Impeller and gently push it onto shaft after you have put a small amount of silicon on the Impellor Shaft. Also the rubber part can use a light coat of silicon to slide it into place in the Volute or Wet End Body. This Seal fits Sta-Rite and Vico Pumps and Most Cal Spa Pumps including Power Right
The Links below are for this style seal in other kits and singles:
Pump Seal PS-3868 Viton Like a PS-201 (Better) Fits Most Vico, Sta-Rite and Power Right Spa Pumps
Shaft Seal, PS-201, 3/4" Shaft, Buna Fits Most Vico, Sta-Rite and Power Right Spa Pumps
201 Seal Pump Parts Kit with Silicon Fits Most Vico Sta-Rite Spa Hot Tub Pumps
(1) Front Bearing & Seal Pump Parts Kit Fits Most Vico Sta-Rite Spa Hot Tub Pumps
(2) Front Bearing & Seal Pump Parts Kit Fits Most Vico Sta-Rite Spa Hot Tub Pumps
Please note: When you have a seal leaking in most cases you will need an impeller because the leak caused water to get into the metal shaft area that the impeller is screwed onto and expands and damages the impeller.
