Product Description
This 1.5 Horse Power 230V 8.0/2.6 Amp (2) Speed 48 Frame Complete Pump is a Lingxiao LX Brand Pump. These pumps usually have the part number 48WUA1502C-II on the label for a Watkins Version. Watch the video for instruction on how to Identify this pump and also how to determine if this is the correct pump. It is about 7 1/4"" across the face of the pump, it measures about 7 3/8" from the bottom to the top of the pressure side of the volute, it also measures 15" from the back to front edge. The Suction and Pressure side thread fittings are called 2" x 2" but measure 3" from the edge of the thread to the edge of the thread.
This model LX pump is commonly used to replace Aqua Flo XP2e 1.5 HP 230 Volt 48 frame pump, 2 speed, 2" inlet, 2" discharge pumps
Dimensions: 17-1/2"L x 8-7/16"W x 8-7/16"H

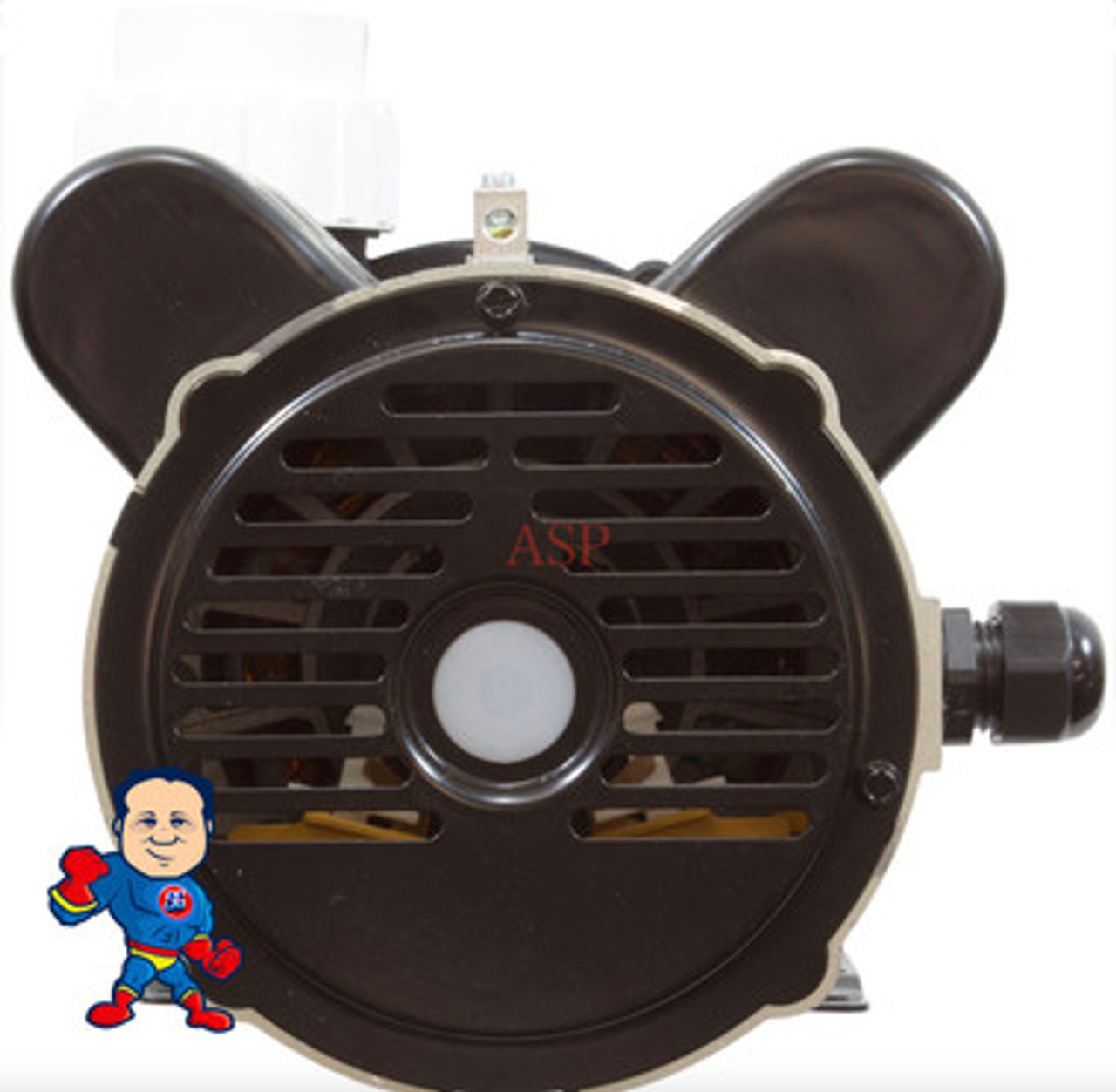

NOTE: This Pump looks a lot like an Aqua-Flo and a CMP Pump and they will interchange if you replace the entire pump! Also note make sure you are choosing correctly between the 48 and 56 frame versions this one is a 48 which measures less than 6" across the back of the motor the 56 measures more than 6"..
If your original Wet End has a Bleeder Barb and the heads of the Bleeder Screws in your old wet end have a spot for a flat screw driver you will need a new bleeder barb... If the original has a wing nut style you already have the newer style bleeder barb and will only need a new one if your original one breaks..
Click this link for the new Style Bleeder Barb: Barbed Bleeder Plug WUA Intertek LX 48 or 56 Frame Wet End Fine Threads
For the Bleeder Barb That fits this pump click Either of these links one is a 1/4" and one is a 1/2":
Barbed Bleeder Plug WUA Intertek LX 48 or 56 Frame Wet End Fine Threads
Pump Bleeder Barb, Watkins, Wavemaster, LX, 1/2" Barb x 1/4"Mpt
