Product Description

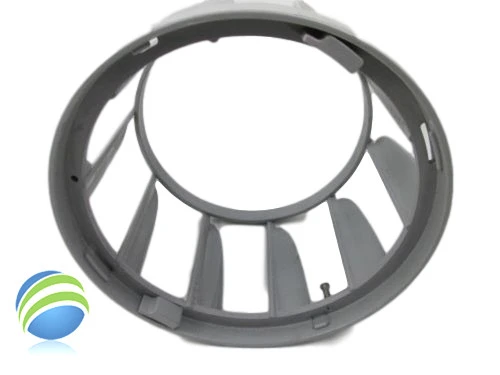

You are buying a Replacement Elite Vane Style Filter Weir in Gray. It measures 7 3/4" edge to edge across the bottom of the vane and it about 5 5/8" tall including the cap. The cap measures about 7 3/8" edge to edge. It has 2 phillips screws that hold it into place and (2) locking long pins that lock it into the filter body when twisted. This part fits a lot of brands of spas including Infinity , Keys Backyard , Artesian and others.
NOTE: If you have a newer tub made by L.P.I. like Waters Edge, Dr. Wellness, Hudson Bay, Lifestyle, American Select and others then this Vane Weir will not fit. LPI has their own version available only through them.
The basket that fits under this Vane Style Weir is here: Basket Assembly, Filter, CMP, Standard Top Load Skim Filter, Gray
These are possible filters that filter this housing.. Be sure to measure before ordering:
Filter 35sqft 9 1/4" Tall x 4-15/16" with 2 1/8" Hole on Top and Bottom C-4335 FC-2385 PRB-35-IN
Spa, hot tub, spa part, hot tub part, spa filter part, hot tub filter part,weir,vane,25349-907-001,X320300,
