Product Description

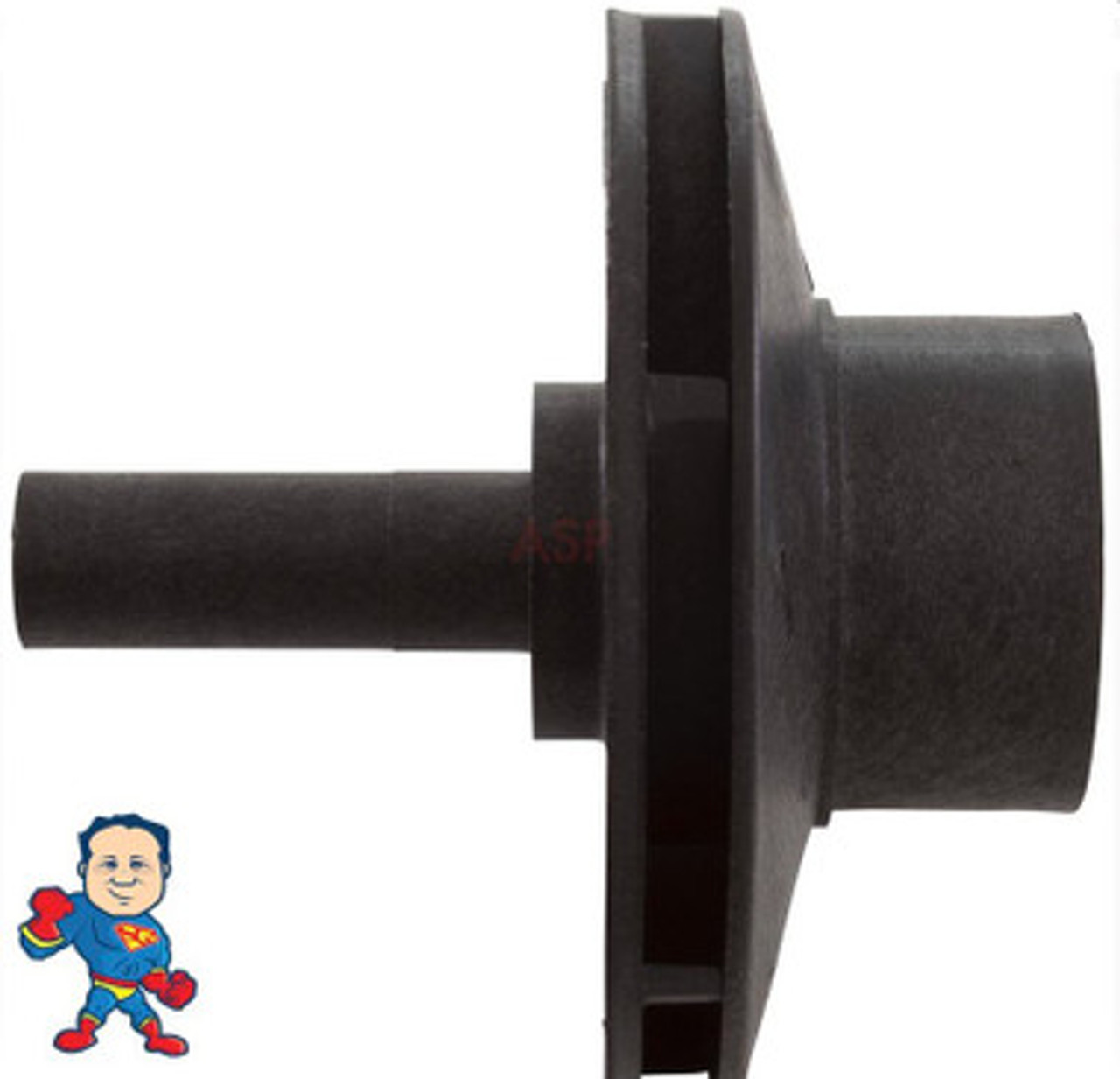

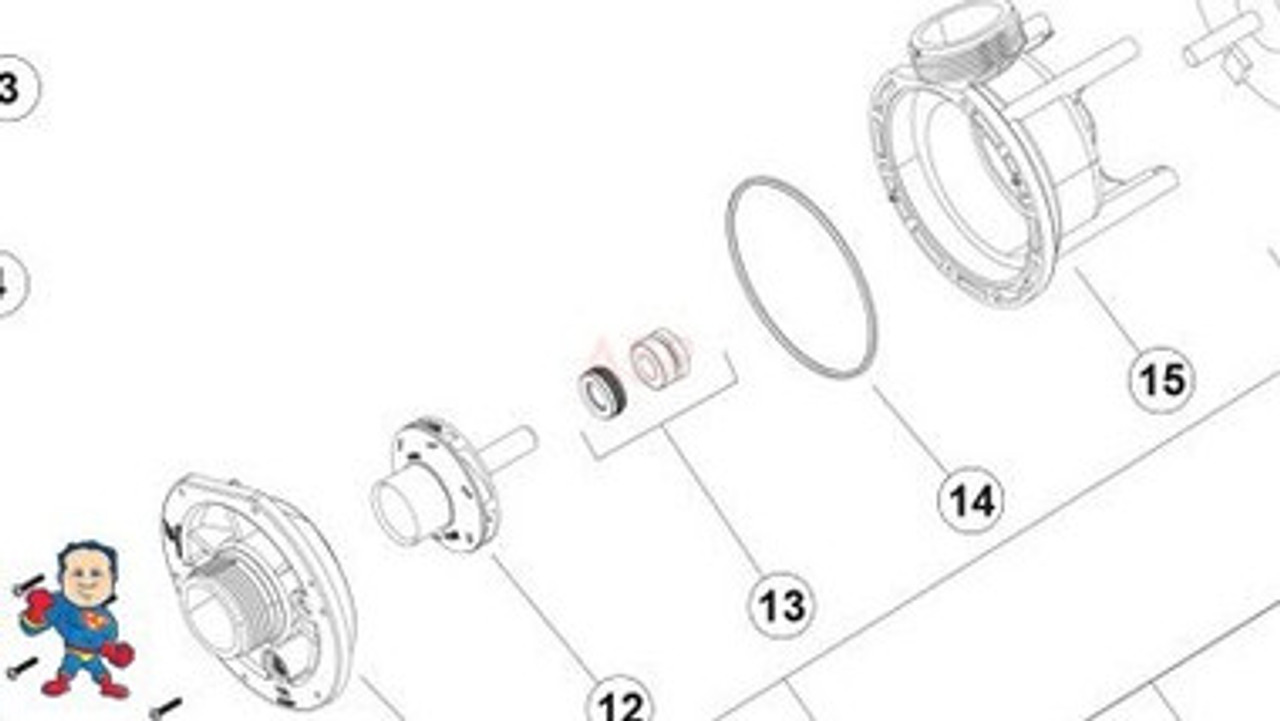

This Part is a 1HP Impeller that fits an E-Series 48 Frame 1 1/2" Center discharge Wet End which is found in hot tubs some but on Above Ground pool pumps many times. This Impeller fits between the Face and the Volute of an E-Series Wet End. I would advise replacing the Seal when you replace the Impeller. Please compare the measurements below and also note that if you pump has the spring part in the volute this impeller is not correct.. This is an unusual Waterway impeller as it uses a different seal than almost all Waterway pumps.. The Spring part on the seal will be on the back of the impeller on this pump..
Click below for the seal kit options:
Pump Seal (Better) PS-3867 Viton Like a PS-200 Fits Most Aqua-Flo Wet Ends
Impeller Type Closed Face
Impeller Diameter OD 3-3/4"
Vane Width ID 1/4"
Eye Diameter OD 1-3/4"
Eye Length 15/16"
Impeller Width OD 7/16"
Seal Seat Depth 1/4"
Shaft Length 1-3/4"
Shaft Diameter OD 5/8"
Seal Seat Diameter OD 1-1/4"
Manufacturer Waterway
Pump Application E-Series
