Product Description

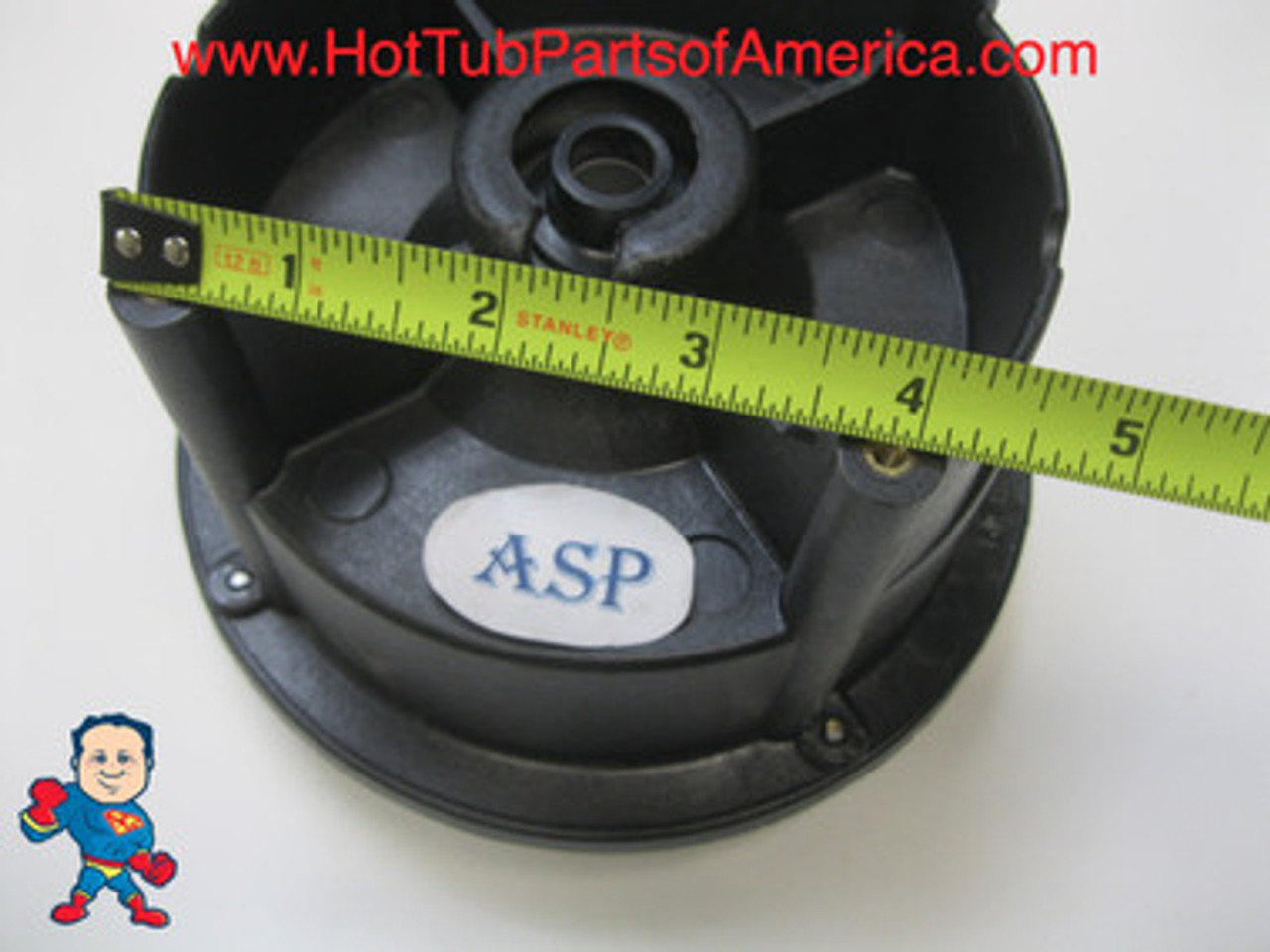

This part is a Complete Flo-Master FMCP 1.5HP Aqua-Flo 1-1/2" x 1-1/2" ( Which measures about 2 3/8" Across the Threads) Center discharge 48 frame wet end for 48FR pumps. This wet end is used with a 48 frame motor that would have about 9.0 Amps on High Speed on a 230V motor and Would be about 13.0 Amps on High Speed on a 115V motor. The motor used may be either a single or dual speed. The wet end may be rotated 90 degrees to change the discharge position. The complete wet end includes: the volute, seal, impeller, wear ring, suction cover, suction cover o-ring, drain plug, drain plug o-ring and suction cover screws.
Note: You always base your choice of HP on the Amperage of the motor it is going on see the chart below.. a 48 frame motor measures about 5 1/2" across the motor and will have 1/4" heads on the thru-bolts and will measure about 5 3/16" between the thru-bolts in a cross pattern and 56 frame motor measures about 6 1/4" across the motor and will have 5/16" heads on the thru-bolts and will measure about 5 7/8" between the thru-bolts in a cross pattern..
Horsepower VS Amperage Chart
