Product Description

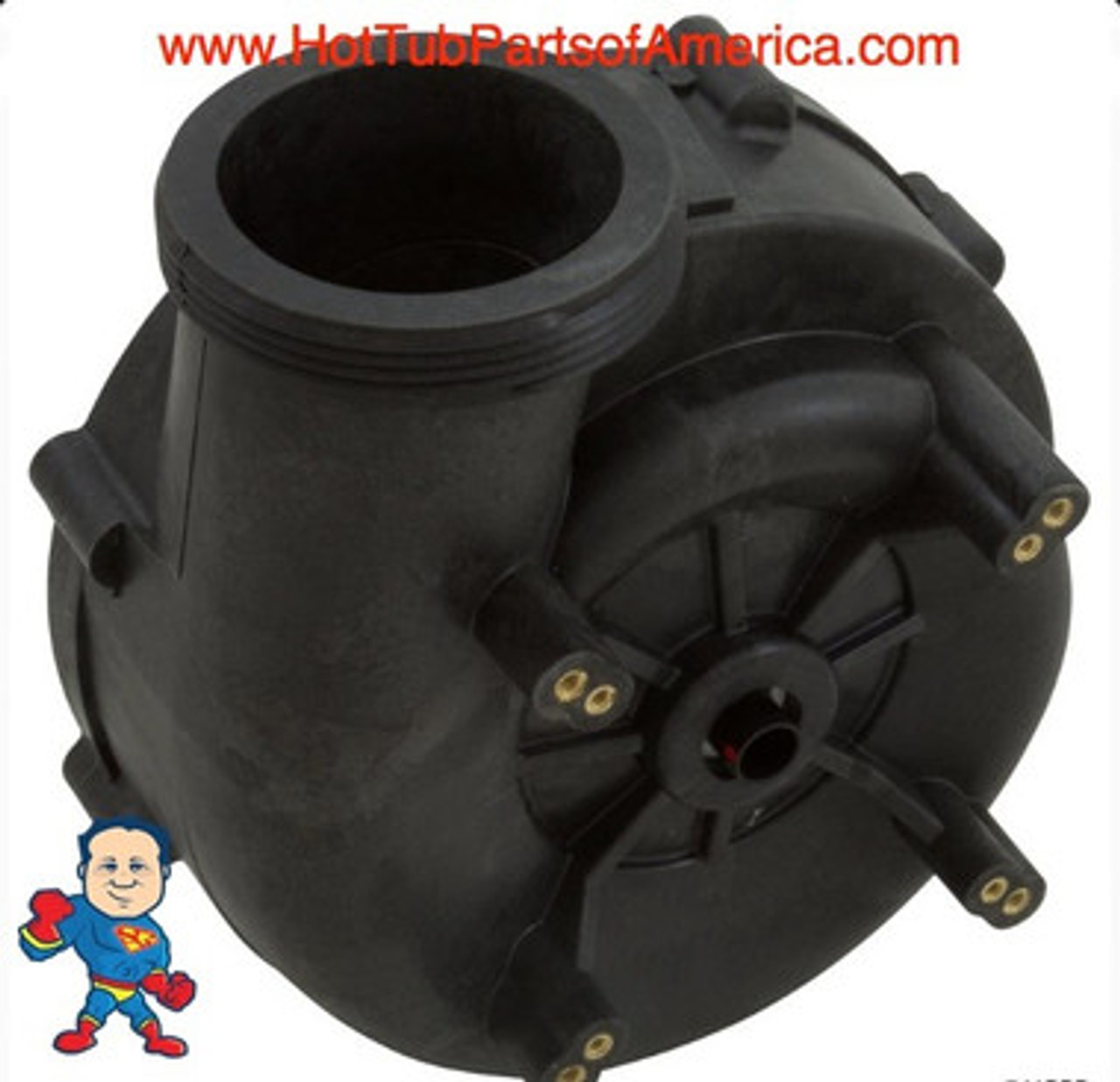

Aqua-Flo XP3 Complete 3HP Wet End fits on a Aqua-Flo Xp3 pump which has 2 1/2" inlet and outlet which measures about 3 9/16" across the threads...
If you don't need a complete wet end a list of parts are below...
Note: All of the below parts fit this wet end even thought the parts will say they are for a Waterway Viper pump but they are both the same thing...
Click Here for the Face Plate
Click Here for the Face Plate O-Ring
Click Here for the Volute
This pump uses a different seal than all other Waterway pumps click here for the Seal Kit only
Click here for a Seal and (1) Bearing Kit
Click Here for an additional bearing if needed
Click Here for 3HP Impeller
Click Here for 4HP Impeller
Click Here for 5HP Impeller
Click Here for Wear Ring
Pump to Motor Foot Types 3
Motor Frame 48 Frame Thru-Bolt, 56 Frame Thru-Bolt
Drain Plug Location 3,4,6,9 o`clock
Suction Auxillary Port None
Suction Style Center
Suction Connection (Physical Dimension) 3-1/16"od
Suction Connection Type Male Buttress Thread (mbt)
Suction Pipe Size 2"
Discharge Auxilary Port None
Discharge Style Side
Discharge Connection (Physical Dimension) 3-1/16"od
Discharge Connection Type Male Buttress Thread (mbt)
Discharge Pipe Size 2"
Horsepower 3.0hp
Manufacturer AquaFlo/Gecko
Pump Model Flo-Master XP3
Manufacturer Impeller Number 91698300
Volute Fastening Type 8 Screws
Volute/Sealplate Number 92770735
