Wet End,Bath, Garden, Tub, GG Mark III, 0.75hp, 1-1/2",mbt, 48fr

Product Description

Note: This Wet End is no longer available but we do have an alternative which is not an exact replacement but will work as long as your connecting plumbing is not rigid and can be move a little.. Meaning your pump is plumbed with flexible pipe so the union connections can be adjusted..

Here is the link to the replacement wet end that will work.. in this case.. Wetend, Bath Pump Wet End, Aqua-Flo TMCP, 3/4HP, CD, 48-Frame, 1-1/2"MBT, (Self-Drain)

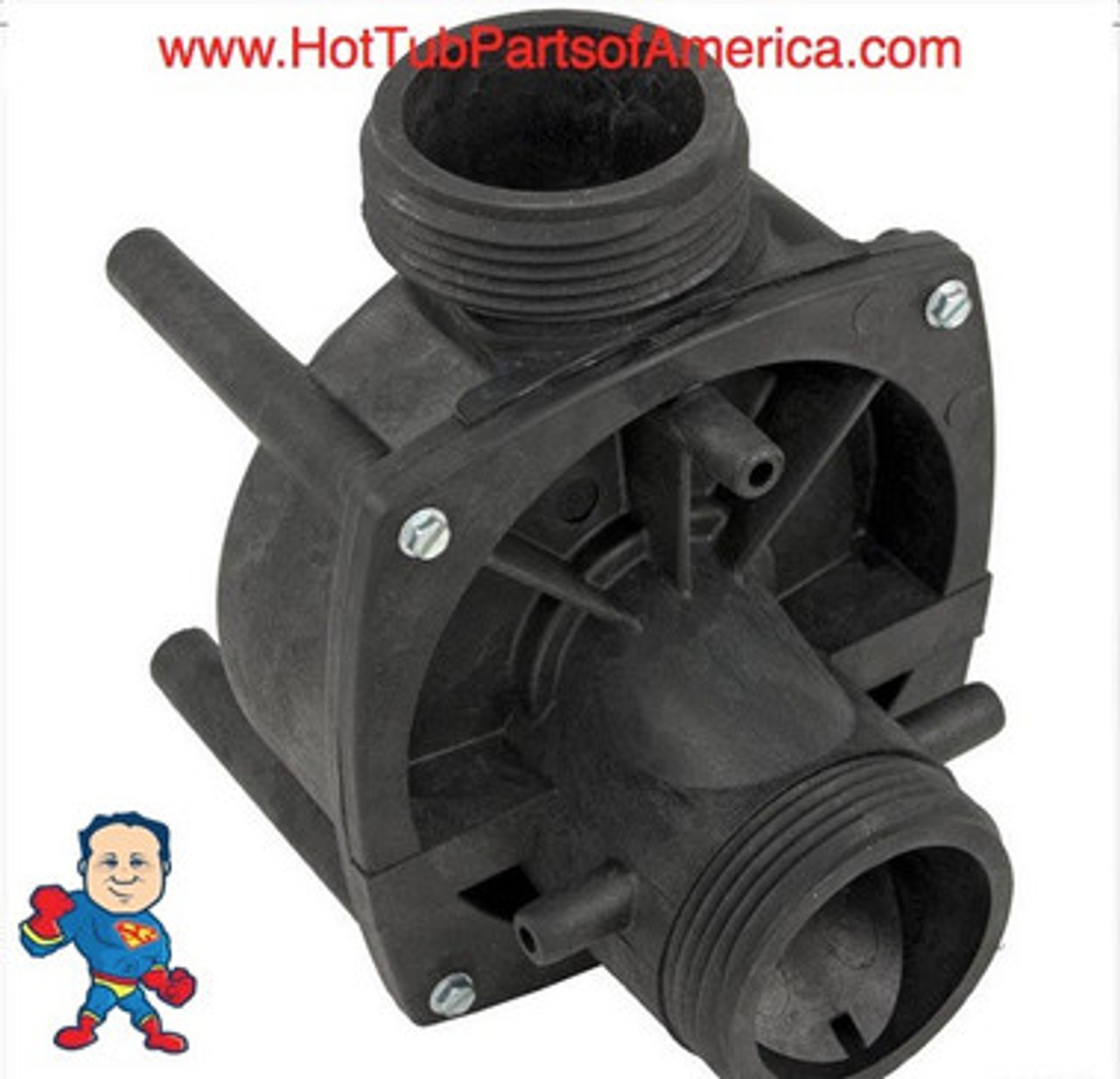

This Part is a G&G Olympian Mark III 48fr 3/4HP 1-1/2" x 1-1/2" Wet End. The Threads are consider to be 1 1/2" which would measure about 2 3/8" across the threads... This wet end features a bottom suction and center discharge. This bath pump is designed for quiet and efficient performance. This is a replacement wet end only. This wet end is used with a 3/4hp, 48 frame thru-bolt style motor whose amperage would about 10-11 amps. The motor used may be either a single or dual speed. The complete wet end includes: the volute, seal, impeller, wear ring, suction cover, suction cover o-ring, drain plug, drain plug o-ring and suction cover screws.

For complete motors & pumps and other related parts click this Link... Garden Tub Parts

Pump to Motor Foot Types
