Product Description

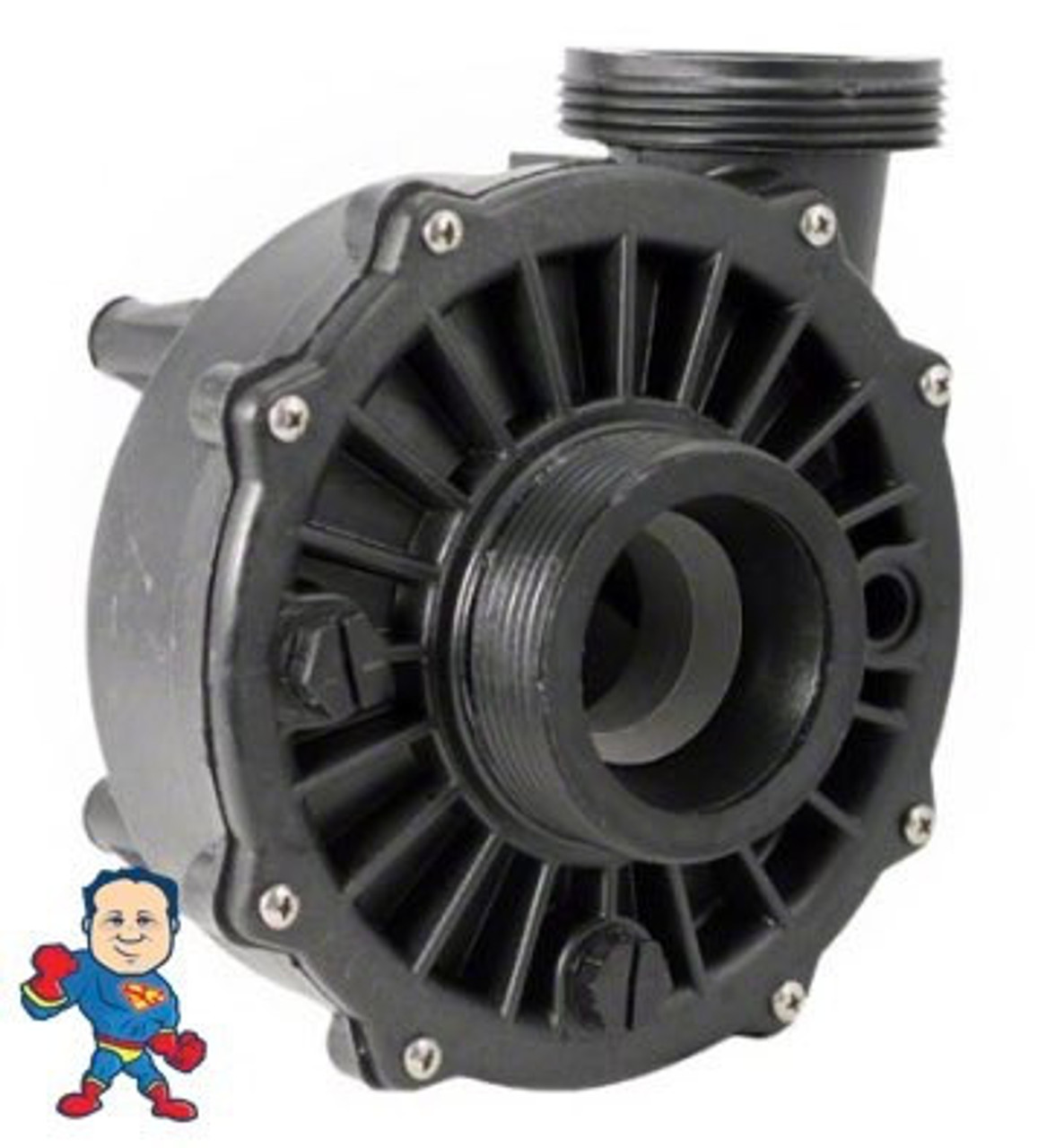

Waterway Hi-Flo Wet End
Side discharge, 2"mbt suction/discharge, 48 frame wet end for the Waterway Hi-Flo pump. This wet end is used with a 12.0 Amp 3.0hp, 48 frame, thru-bolt style motor. The motor used may be either a single or dual speed. The wet end may be rotated 90° to change the discharge position. The complete wet end includes: the volute, seal, impeller, wear ring, suction cover, suction cover o-ring, drain plug, drain plug o-ring and suction cover screws. Motor and unions sold separately.
| Pump to Motor Foot Types | 17 |
| Motor Frame | 48 Frame Thru-Bolt |
| Drain Plug Location | 3,6,9 o`clock |
| Suction Auxillary Port | None |
| Suction Style | Center |
| Suction Connection (Physical Dimension) | 3-1/16" od |
| Suction Connection Type | Male Buttress Thread (mbt) |
| Suction Pipe Size | 2" |
| Discharge Auxilary Port | None |
| Discharge Style | Side |
| Discharge Connection (Physical Dimension) | 3-1/16" od |
| Discharge Connection Type | Male Buttress Thread (mbt) |
| Discharge Pipe Size | 2" |
| Horsepower | 3.0hp |
| Manufacturer | Waterway |
| Pump Model | Hi-Flo Old Style |
| Manufacturer Impeller Number | 310-4020 |
| Volute Fastening Type | 8 Screws |
| Volute/Sealplate Number | 315-2500 |
