Product Description

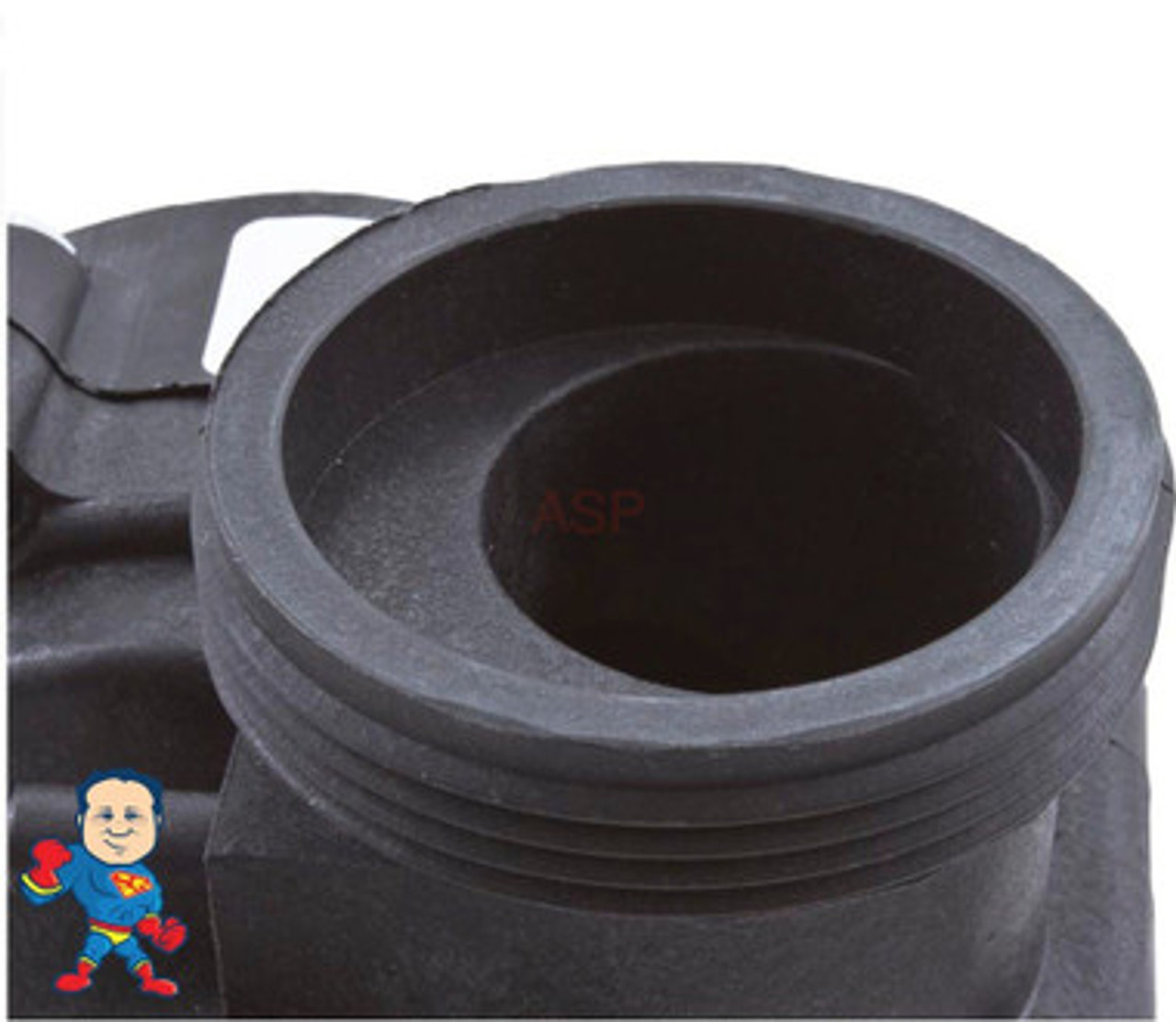

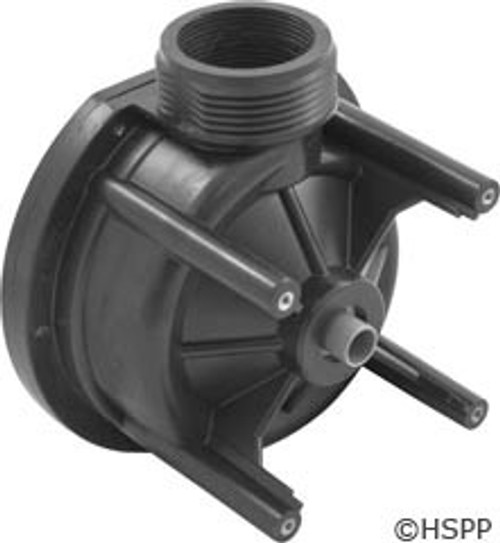

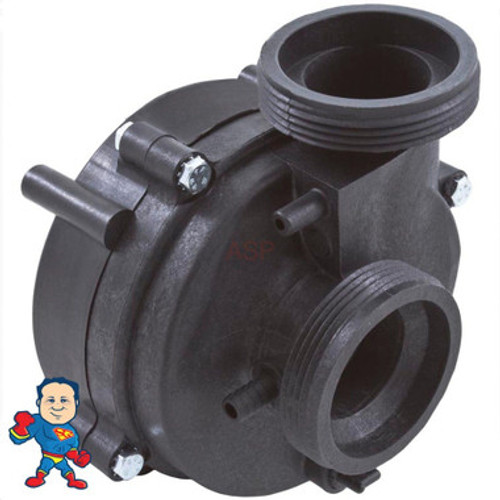

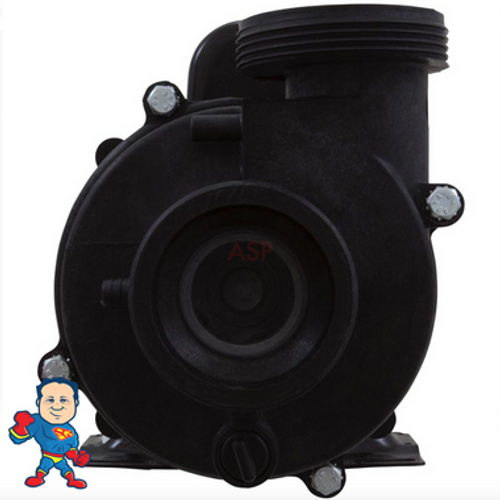

This item is a 48 Frame Vico Wet End with 2" x 2" inlet and outlet that would measure about 3" across the threads and it has a 2.0HP impeller which would fit a motor that has 10.0 amps at 230V and 16.0 amps at 115V..
Pump to Motor Foot Types 1a
Motor Frame 48 Frame Thru-Bolt
Drain Plug Location 6 o`clock
Suction Auxillary Port 3/8" barb (b) 1ea.
Suction Style Center
Suction Connection (Physical Dimension) 3-1/16"od
Suction Connection Type Male Buttress Thread (mbt)
Suction Pipe Size 2"
Discharge Auxilary Port 3/8" barb (b) 1ea.
Discharge Style Side
Discharge Connection (Physical Dimension) 3-1/16"od
Discharge Connection Type Male Buttress Thread (mbt)
Discharge Pipe Size 2"
Horsepower 2.0hp
Manufacturer Vico
Pump Model Ultima
Volute Fastening Type 4 Bolts
