Product Description

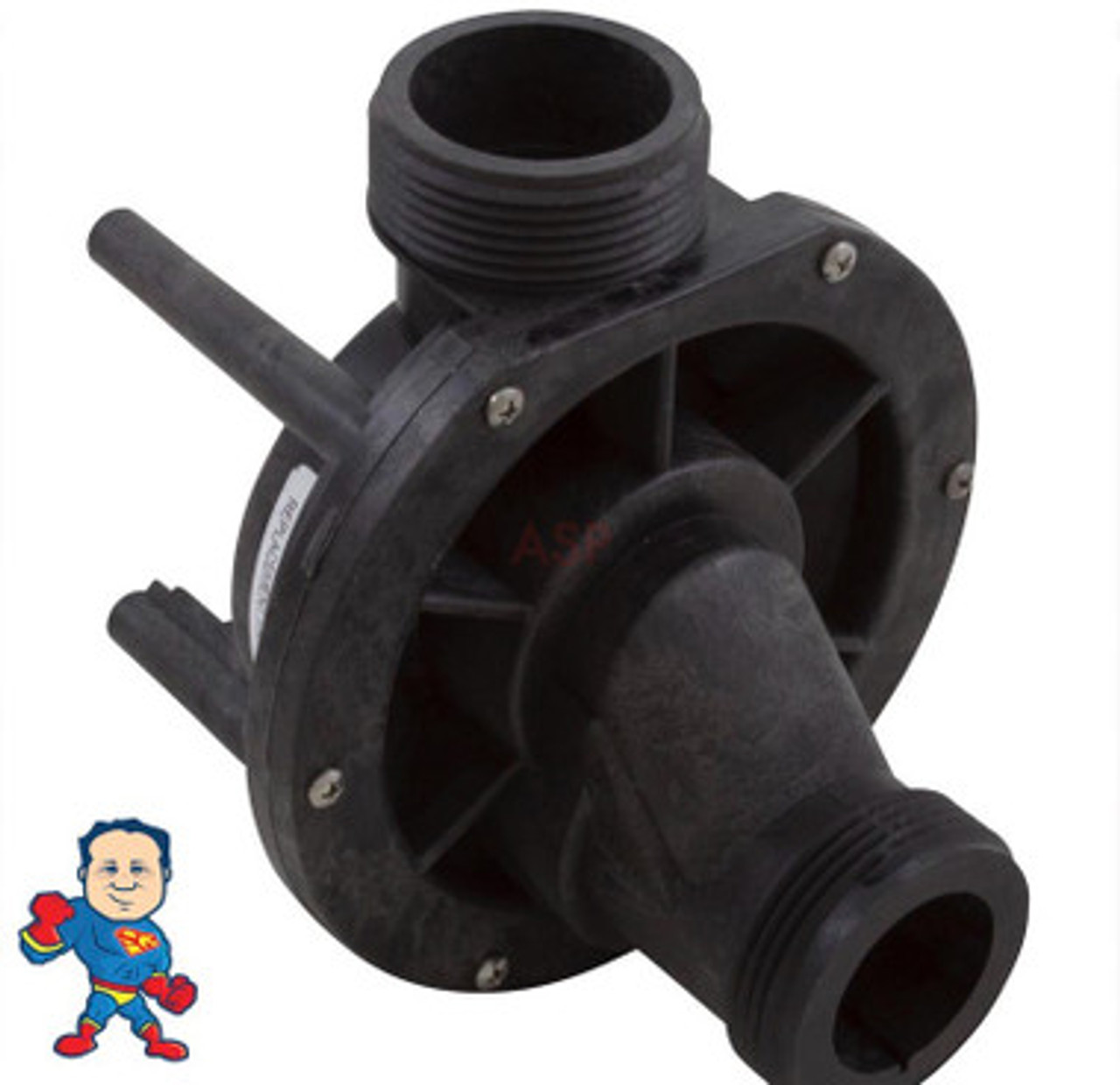

This Part is an 48 Frame 1.0HP TMCP Aqua-Flo Wet End for a Garden Tub Bath Pump that has a voltage of 115V and an Amperage of about 12 Amps..
Note: The outside measurement of the threads on this wet end are about 2 3/8" meaning the inside measurement of your existing Pump Union would be about 2 3/8" as well..
The bolt pattern in an X pattern measures about 5 1/8" and in a square pattern it would measure about 3 5/8" Center to Center..
This Wet End is an automatic bleed style built for Bath Garden tub Applications Specifically..
It Features a Bottom suction, center discharge, 1-1/2"mbt suction/discharge, 48 frame 100% drain wet end for TMCP pump. This wet end is used with a 1.0hp, 48Y frame, thru-bolt style motor. The motor used may be either a single or dual speed. The complete wet end includes: the volute, seal, impeller, wear ring, suction cover, suction cover o-ring, drain plug, drain plug o-ring and suction cover screws. Motor and unions sold separately.
For complete motors & pumps and other related parts click this Link... Garden Tub Parts
Pump to Motor Foot Types 15
Motor Frame 48 Frame Thru-Bolt
Drain Plug Location None
Suction Auxillary Port None
Suction Style Center
Suction Connection (Physical Dimension) 2-7/16"od
Suction Connection Type Male Buttress Thread (mbt)
Suction Pipe Size 1-1/2"
Discharge Auxilary Port None
Discharge Style Side
Discharge Connection (Physical Dimension) 2-7/16"od
Discharge Connection Type Male Buttress Thread (mbt)
Discharge Pipe Size 1-1/2"
Horsepower 1.0hp
Manufacturer AquaFlo/Gecko
Pump Model Flo-Master TMCP
