XP2 3.0 HP 2 1/8" Eye Impeller & Seal (1) Bearing Kit Aqua-Flo 230V 12 Amp

Product Description

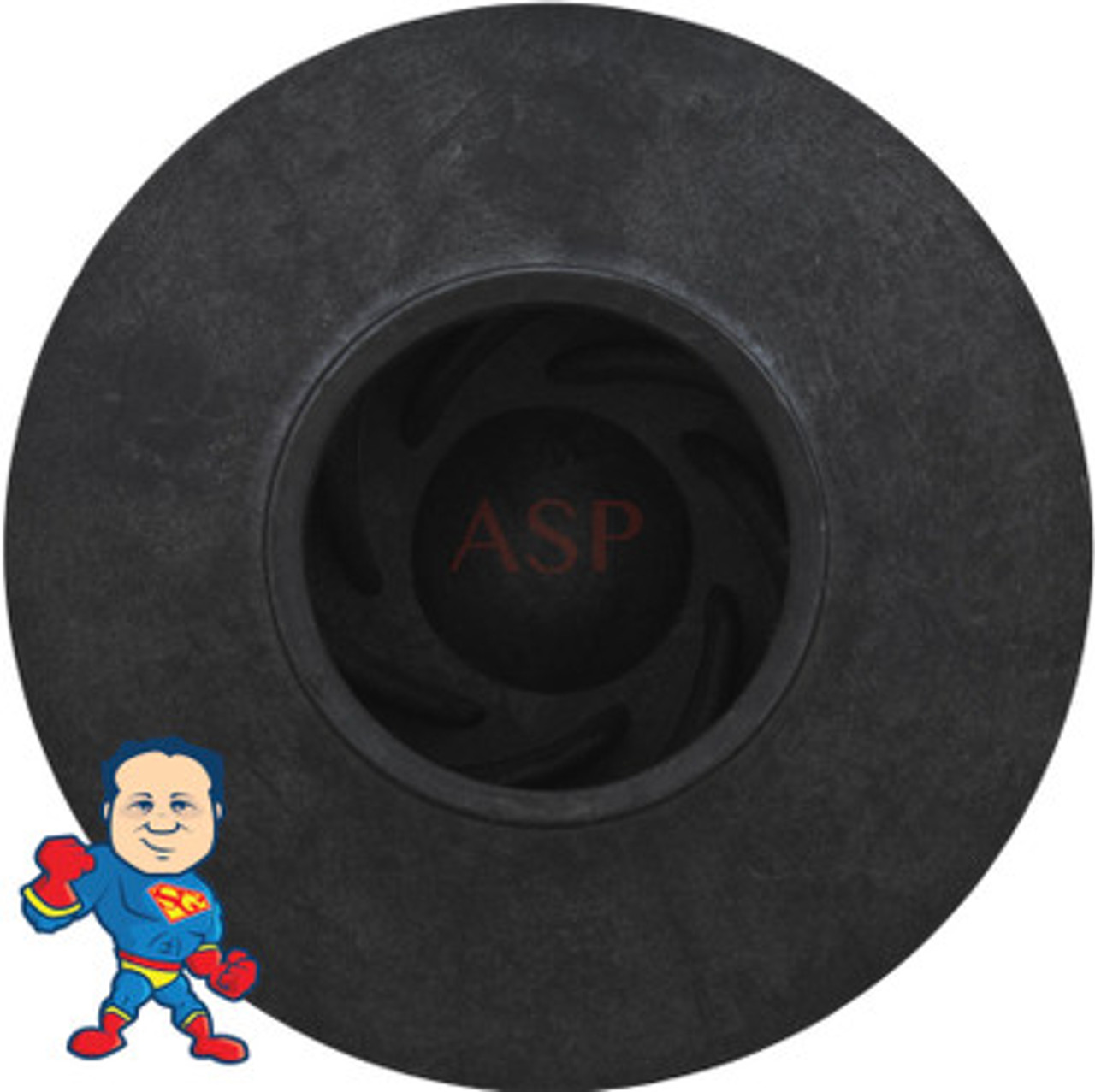

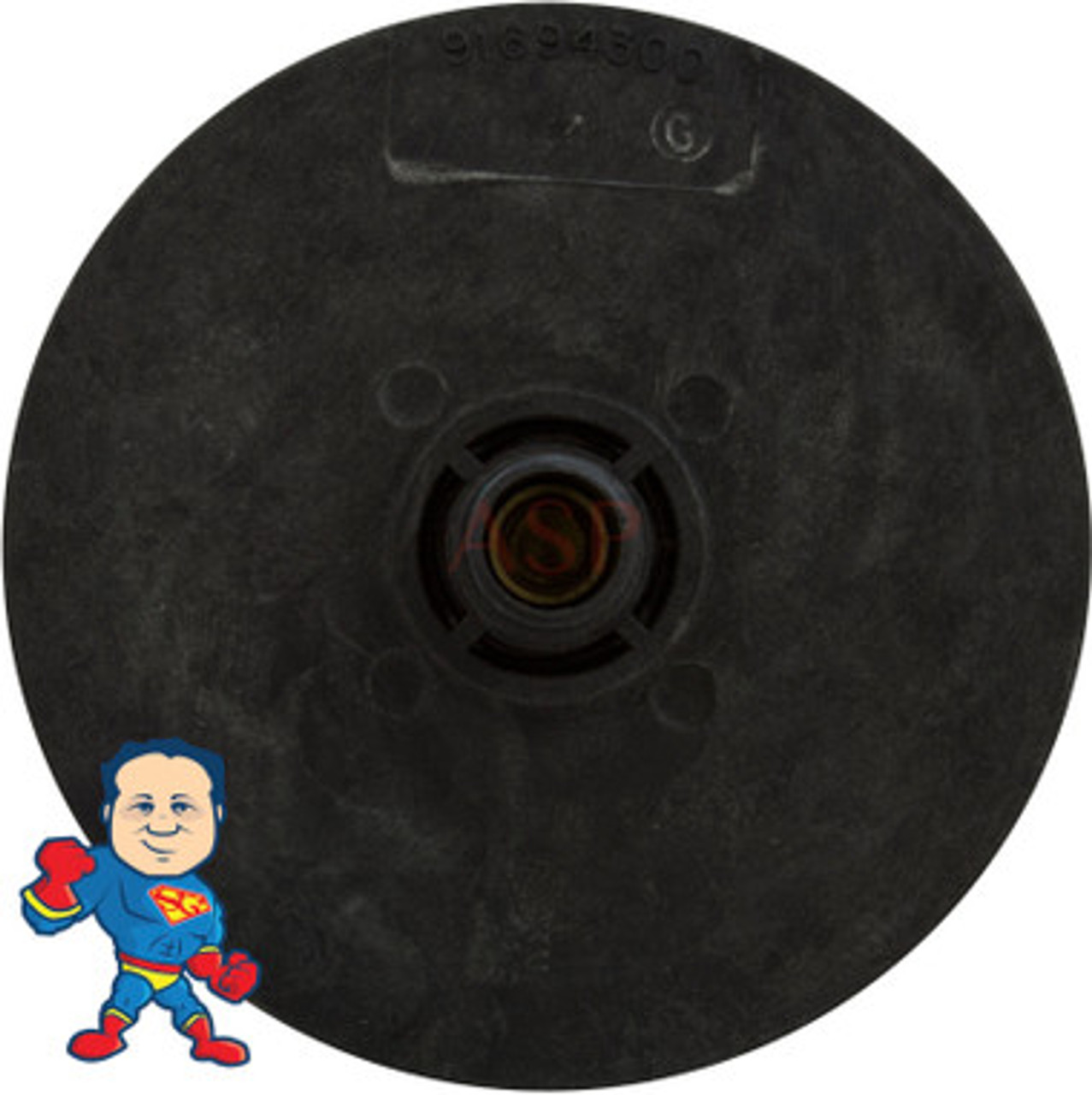

This is a 3HP Seal, (1) Bearing and Impeller Kit.. The Impeller has a 2 1/8" Eye width for an Aqua-Flo 48 or 56 Frame Wet End 3.0HP Motor would be about 12.0 Amps on high speed at 230V.

Note: The three things you need to know to get the correct Aqua-Flo XP2 or XP2e Impeller is the Eye Width, Voltage and Amperage.. Use the chart with the Voltage and Amperage to determine the HorsePower.. DO NOT rely on the HorsePower on the pump it is usually “Overrated” not accurate.. See Chart Below.. The Eye Size Choices are 2 ⅛”, 2 ⅜” and 2 ⅝”..

This Impeller fits between the Face and the Volute of an Aqua-Flo XP2 Wet End.

This Impeller uses PS-200 Seal kits that can be found Click Here.

Note: This Bearing has a 17mm bearing center hole; some motors on Aqua-Flo pumps have a 15.9mm bearing center hole so measure before ordering.. Put a Note in the space during check out and we will ship a 15.9mm instead..

Note: A 115v motor that uses a 1 HP Impeller would show about 11-12.0 Amps on high speed a 230V motor would show about 8.0 Amps on High. See chart below for other Horsepowers. Do Not choose a Larger Impeller thinking that it will make your Hot Tub Stronger it will only damage the Motor and make it run hot on high speed. To determine the HP refer to the chart below.. The difference between a 48 or 56 Frame wet end is the spacing of the Motor Thru bolts. The 48 Frame will be 3 5/8" between or 5 3/16" in a X Pattern and have a 1/4" Bolt Head and the 56 Frame will be 4 1/8" Between or 5 3/4" in a X Pattern and have a 5/16" Bolt Head.

This Impeller uses PS-200 Seal kits that can be found Click Here.
