Product Description

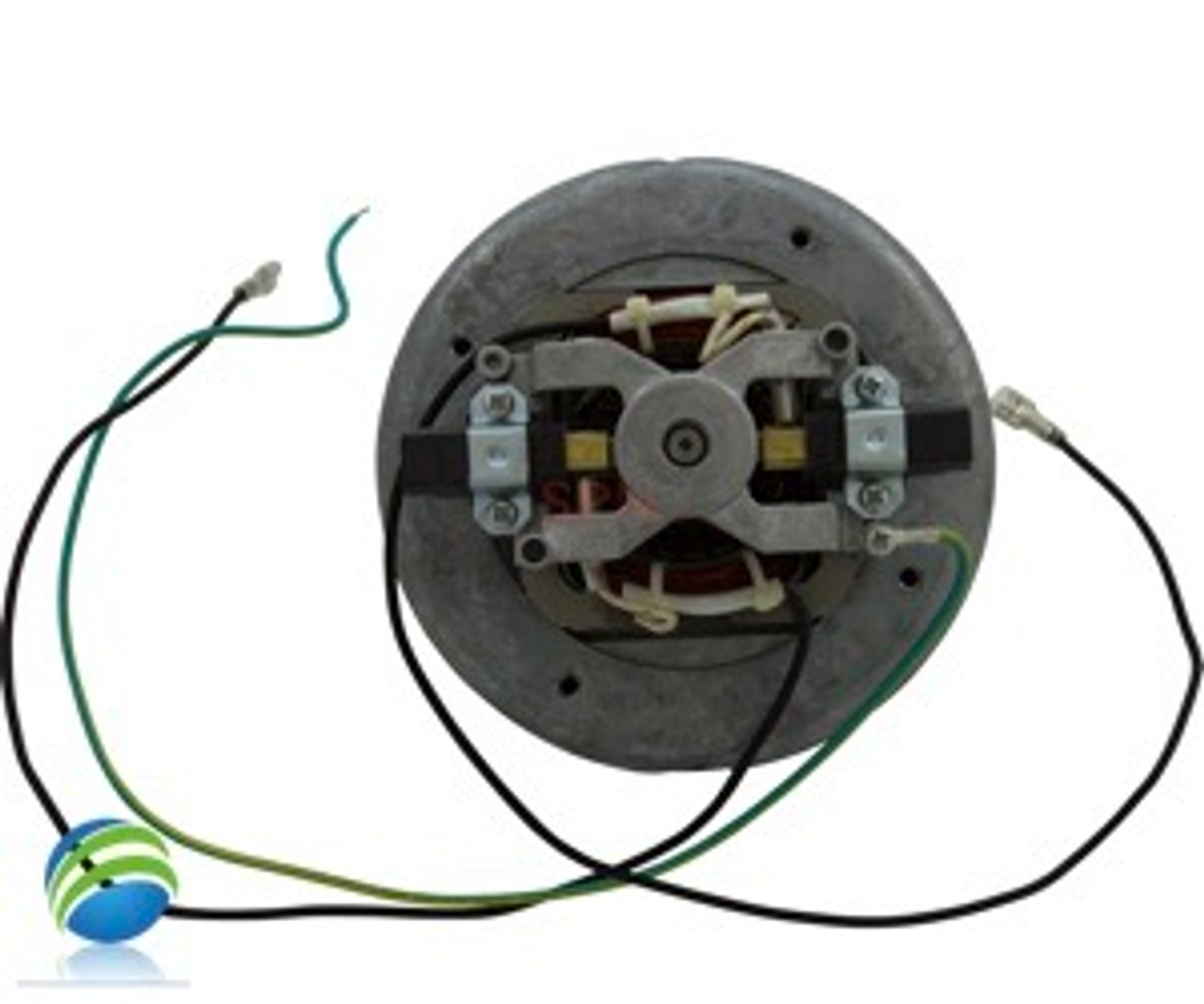

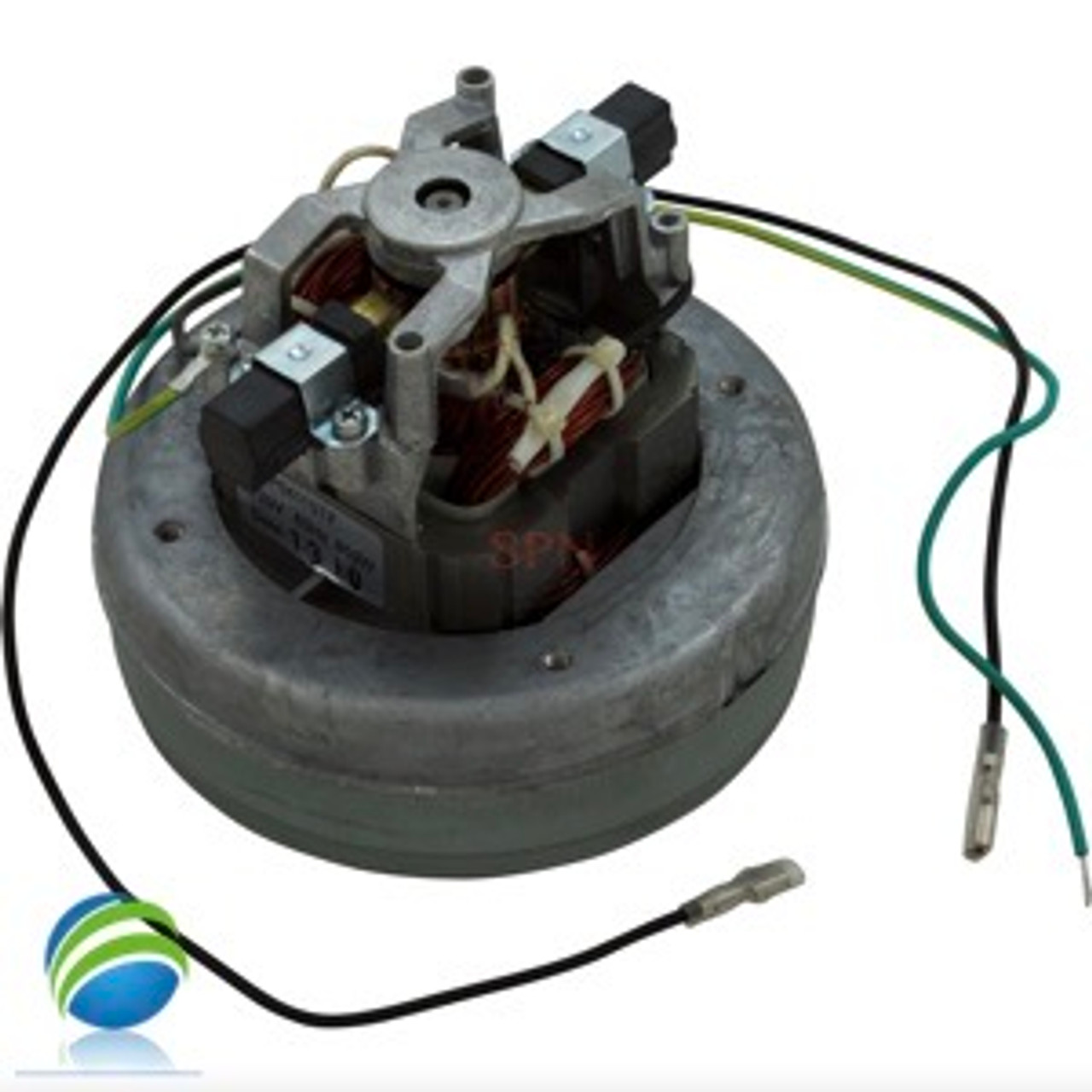

Single speed air blower in 1 HP that can replace virtually all underskirt and some outdoor blowers regardless of brand. We recommend verify your current motors sizing against the dimensions provided below to ensure fit in your housing.
AKA/Replaces: ASF3010101, HHP041-1STF, T041-3531-04140, 994-51000-7A, 609659, 9267-01, 1.0110BLR, 70-01455, 13-0001, 116309, 6500-107, 1.0110BLR
AS3010101 Features:
- 1 HP Single Stage
- 110/115 Volt, 7 Amp
- 4-1/2" height top to bottom
- 1-3/4" lower fan housing
- Outside diameter of 5-7/8"
| Blower Motor Horsepower | 1.0hp |
| Air Blower Part Type | Blower Motor |
| Motor Type | Blower |
| Voltage | 115v |
| Motor Amperage | 7.0A |
| Blower Amperage | 7.0A |
| Blower Motor Style | Standard |
| Phase | 1 Phase (1ph) |
| Speed | 1 Speed (1-Spd) |
| Horsepower | 1.0hp |
| Capacitor On Top | No |
| Manufacturer | Ametek |
For use in older style blowers using vacuum cleaner motors
| Item # | HP | Amps | Volts | "A" Height | "B" Height |
| SPN-AS3010101 | 1 | 7 | 110v | 4-1/2" | 1-3/4" |
| SPN-AS3010201 | 1 | 3.5 | 220v | 4-1/2" | 1-3/4" |
| SPNAS-3015101 | 1.5 | 8 | 110v | 5-3/4" | 2-3/4" |
| SPNAS-3015201 | 1.5 | 4 | 220v | 5-3/4" | 2-3/4" |
| 35-555-1020 | 2 | 9 | 110v | 6" | 2-3/4" |
| 35-555-1050 | 2 | 6 | 220v | 6" | 2-3/4" |
