Product Description
Gecko's new In.Ye-5 control system with heater. The In.Ye has built in heater probes which provide for self diagnostics, freeze control and verification of water flow - No more Pressure Switch! Also WiFi Ready via In.Touch 2 system (Sold separate). Can setup for various configurations right from the topside control. These settings make the in.ye system work with spas that have a single pump all the way up to dual pumps with circ Pumps. This is truly a versatile system.
Compatible Topsides: In.K450, In.K.200, In.K.35, In.K.19 (Dual and Single Pump Versions)
If you would like to control your tub through an app on your smart phone, the WiFi module for this pack is available here:Gecko / HydroQuip In.Touch 2 WiFi Module
Features:
- Supports topside, heater, and 5 configurable relays/circuits
- Solid-state water flow detection: No pressure switch to adjust
- IPX5 rated waterproof design
- Preloaded configuration allows fast and easy installation
- in.touch WiFi module compatible (Sold Separately)
- 115v/230v Convertible
- Each output voltage can be configured to 115v or 230v
- Standard 15" 4.0 KW Heater w/ 2" unions, Fixed
Control Box Dimensions:
| Height | Width | Depth |
| 10-3/4" | 19-5/8" | 5" |

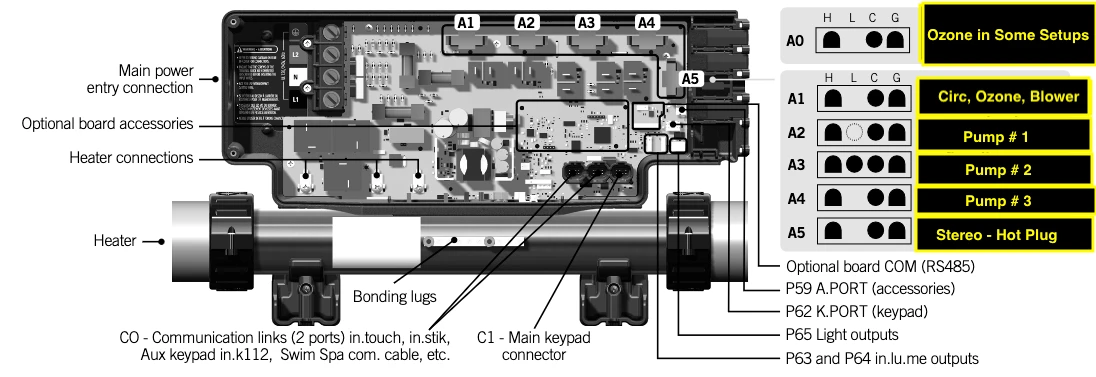

Location of receptacles for MOST setups. Check the configuration sheet below for specific locations. Each setup may route a certain component to another receptacle other than what is shown below. This is because this versatile system can be set many ways depending on needed support:
| Manufacturer | Gecko |
| Model | in.ye-5 |
| Supply Voltage | 115v, 230v - 4 Wire |
| Heater Type | Fixed - Bottom - 15" Flange to Flange - 2" Union (3" female thread) |
| Heater Wattage | 1.0kW, 4.0kW |
| Circ Pump Ready | Yes 115v/230v |
| Auxiliary Topside Ready | Yes |
| Fiber Optic | No |
| Accessory Ready | Yes |
| Wi-Fi Compatible | Yes |
| 50/60 HZ | 60Hz |
Here is some information on getting into the Low Level (LL) and Breaker (BR) Settings. The LL setting is set depending on what equipment you need to support:

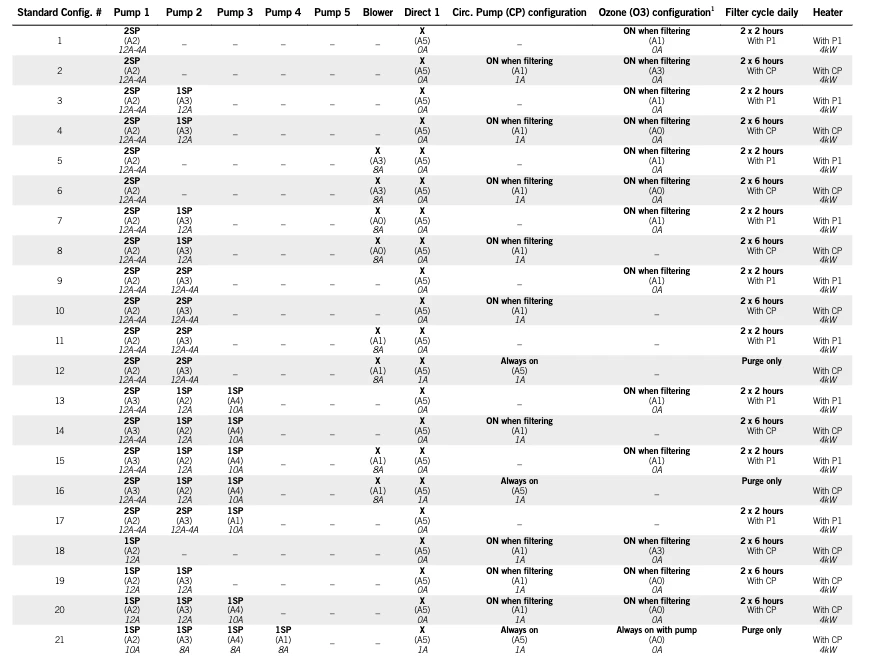

Here are the Low Level Config Settings for this system. Once you find the configuration you need check under each item for the location of the receptacle - For example, Pump 1 = A2 :
