Product Description
This part is a Complete Heater Tube and Element that fits Vita Spas build by DM Industries..

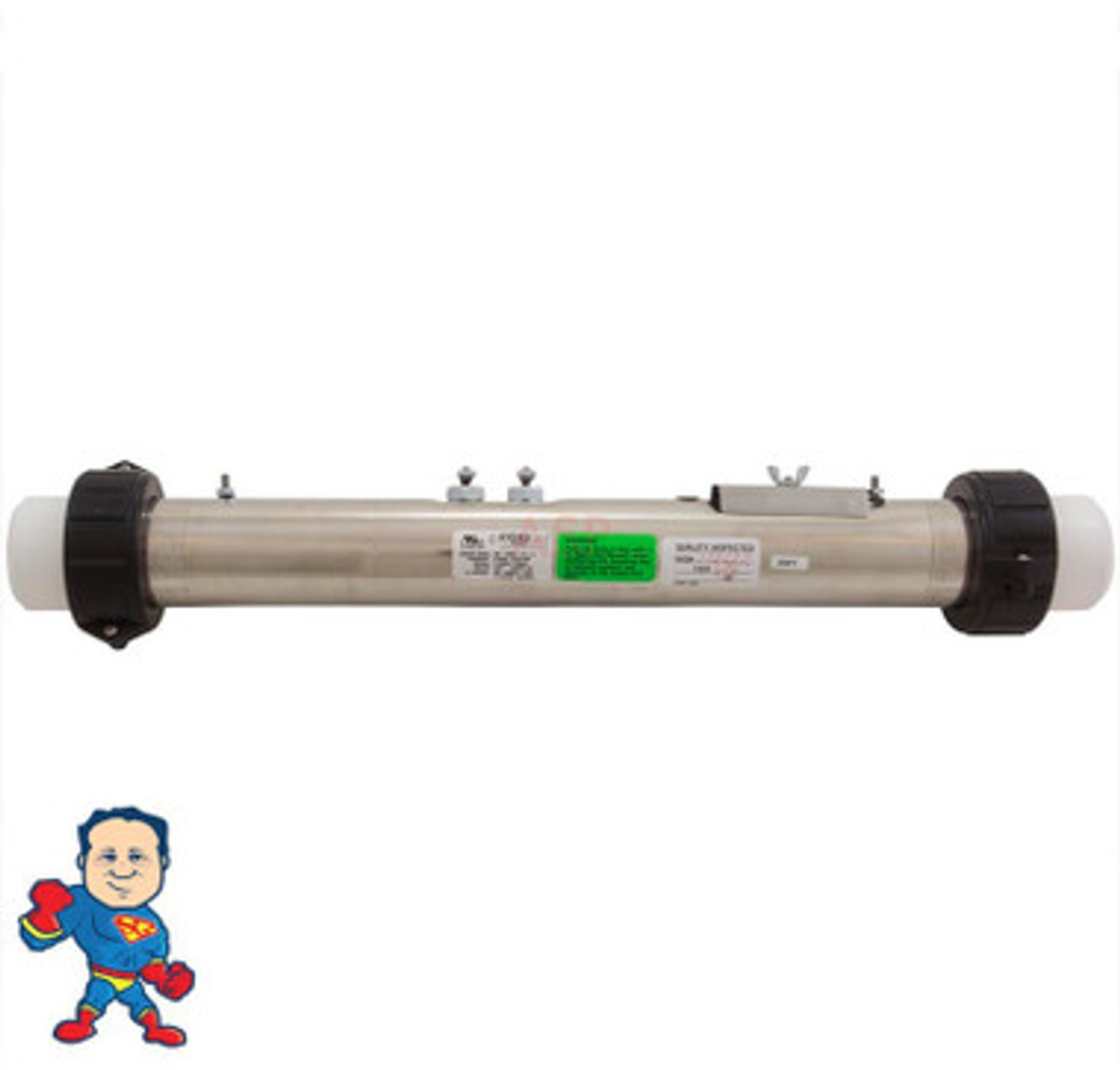

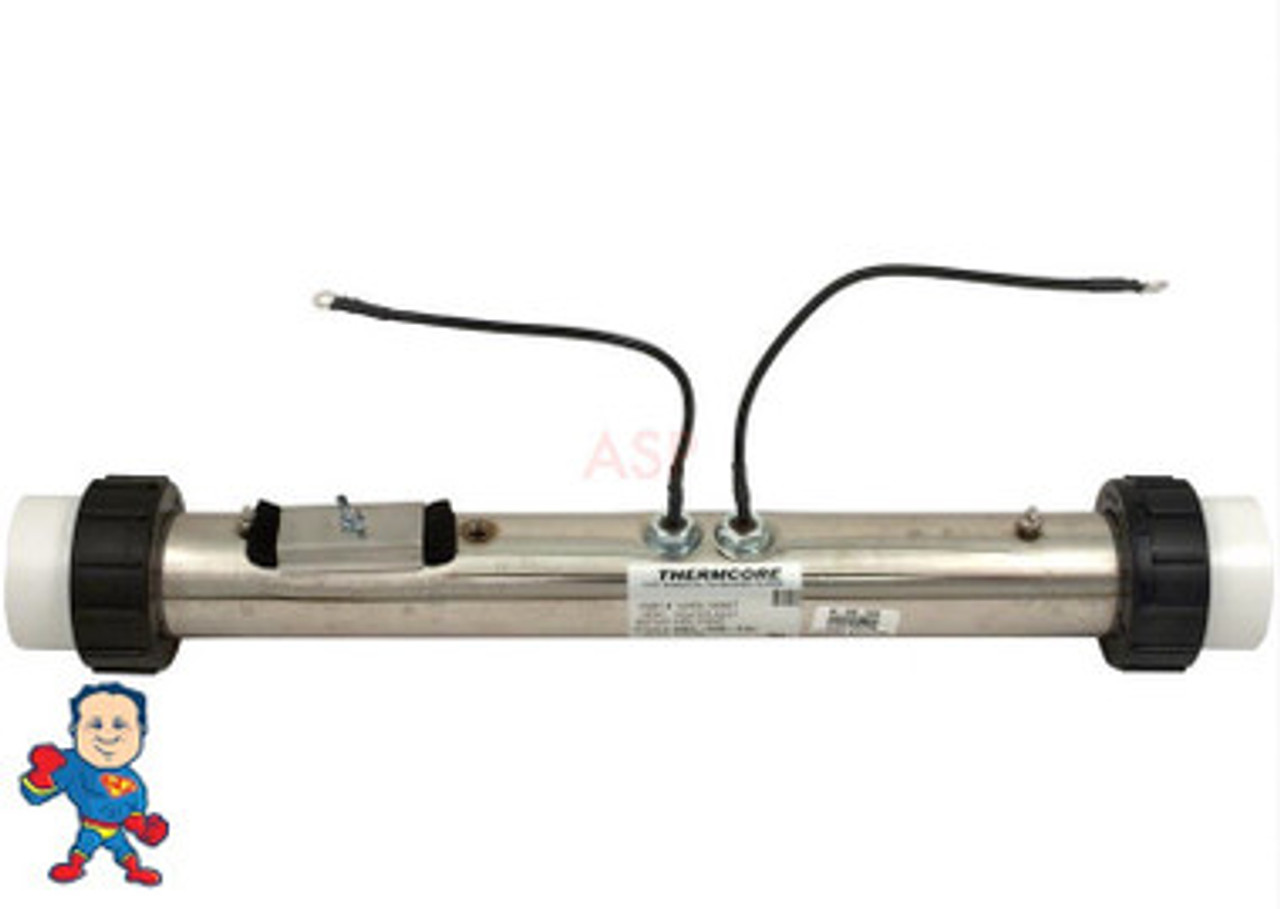

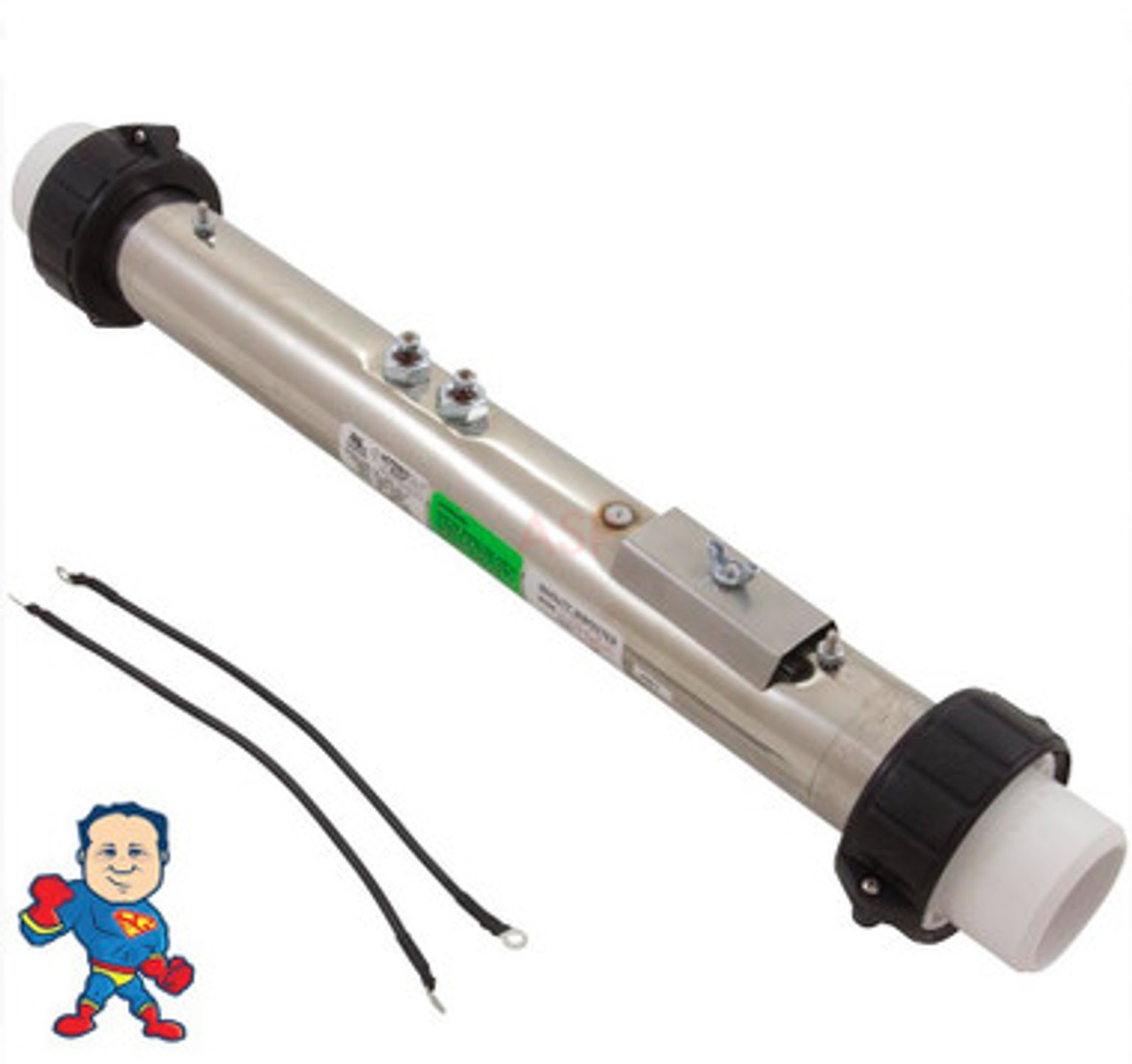

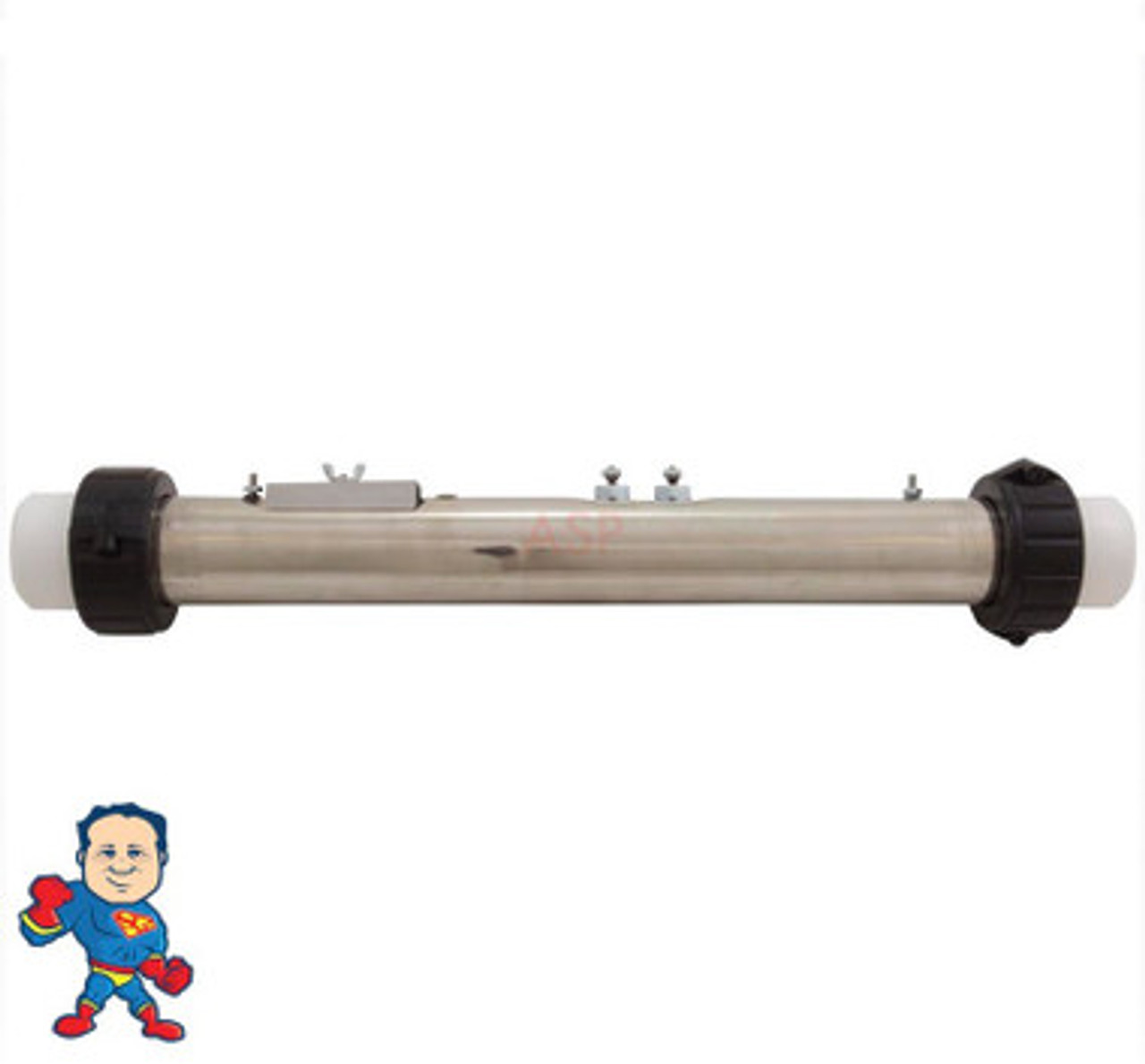

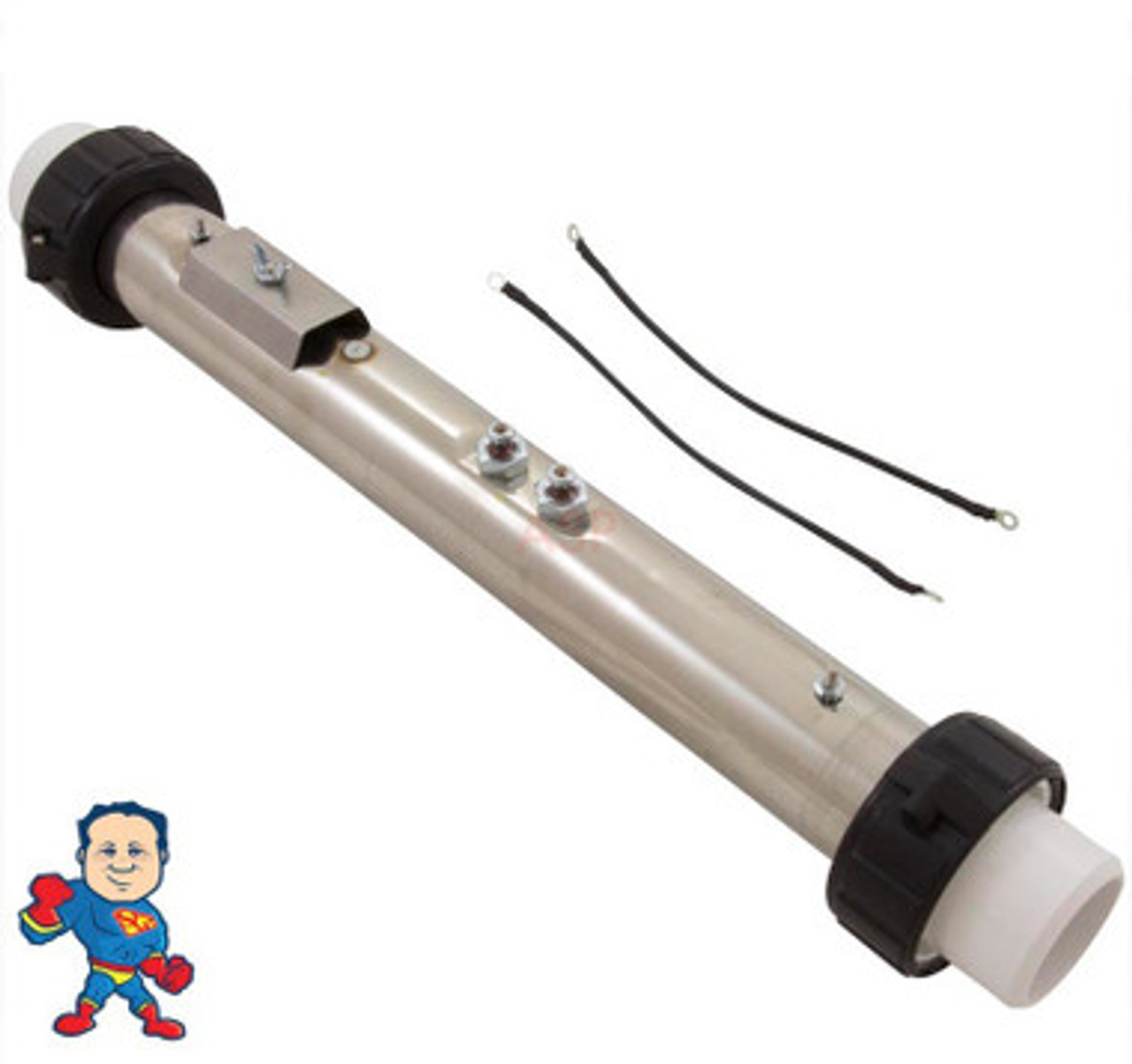

Stainless steel 5.5kW/230v, 2" x 17-3/4" flow thru replacement heater assembly with a pressure switch tap at 0 degrees from the heater terminals. Includes a coated heater element, (2) 2" split nuts, (2) gaskets and (2) tail pieces. Pressure switch not included
Note: This heater is a suitable replacement for the 4.5Kw version of the Vita Spa Heater and as long as your tub is wired correctly the only difference you will find in the two heaters is this one will heat slightly faster other than that there will be no difference..
Housing Configuration Straight
Heater Length 17-3/4"
Lead End Terminal Location 7"
Threaded Tap Orientation 12 O`Clock
Threaded Tap Location 11-11/16" From Leading End
Kilowatts 1.375kW, 5.5kW
Voltage 115v, 230v
Sensor Stud Location 13-3/4"
Sensor Stud Orientation 12 O`Clock
Mounting Stud Type Fixed
Heater Size 2"
Heater Application DM Industries, Vita Spas
