Product Description

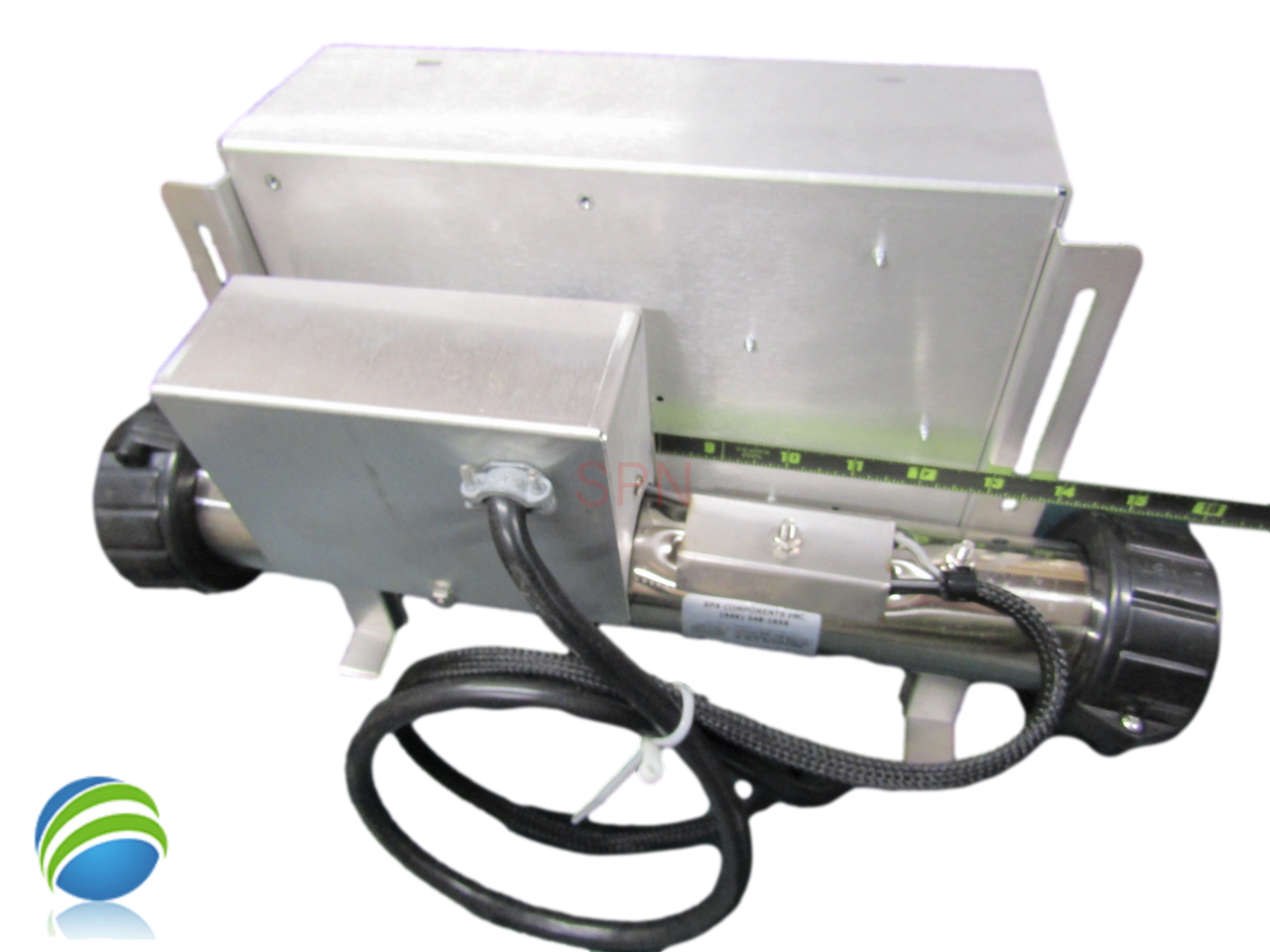

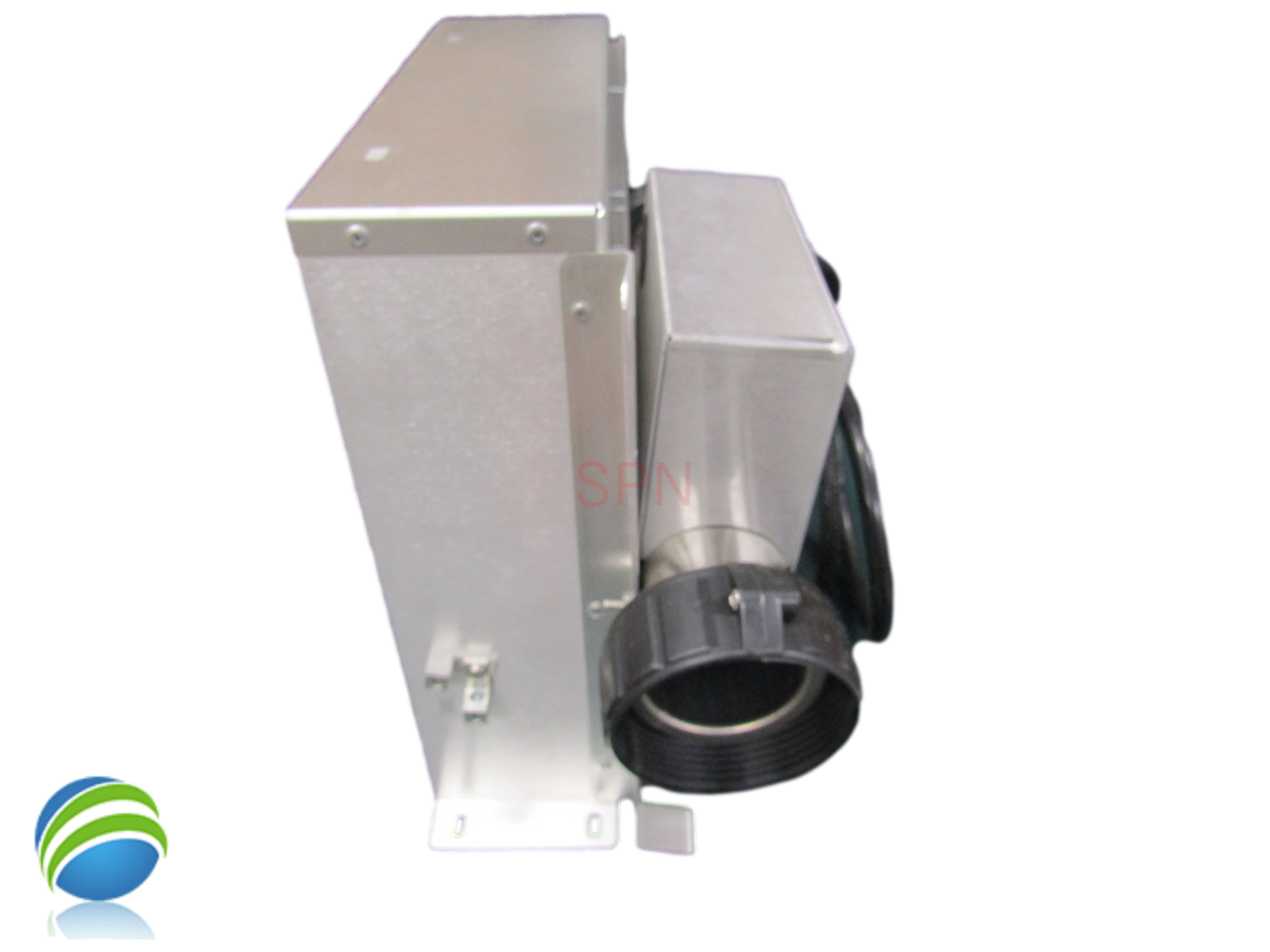

The MODPACK UNI 202 is a universal replacement spa control system for a (2) Pump and Blower System with or without a Circulation Pump. Heater assembly is 15″ long, it is mounted to the back of the enclosure. To simplify the replacement process, heater tube height is adjustable up and down the rear of the control box so it aligns to the existing plumbing. It is also detachable and can be plumbed with 3 feet from the control box.
The heater relay on this system is located off of the circuit board and instead uses a larger mechanical contactor that can be changed during failure, rather than complete circuit board. This feature allows the circuit board to last longer, as heater relays are the #1 reason folks need to replace their board.
This pack is designed to run either (1) Pump, (2) Pumps or (2) pumps and (1) Blower, Circ Pump, a Light and an ozonator as well. Each component can be wired 115v or 230V and it comes with a new cable for both pumps, a light and an ozonator.. The topside is 7 1/4" x 3 1/4" on the face and the hole size for the topside would be about 6 3/8" x 2 3/8".. If the hole you are trying to use the topside is is larger than this we offer blackout plates to take up the space..
If you need a spa pack with the same support but with a bottom mounted stationary heater click here!
If you need a blackout plate click here.. Adapter Blackout Plate, Hydro-Quip 8-1/2" x 3-1/2". For Eco-401 or Balboa E4 Duplex Topside
If you need your ModPack to run Fiber Optic add this option.. Retrofit MODPACK Fiber Optic Option This is in Addition to a New Modpack purchase
- Pump One circuit, two speeds, 220V, 12A Max
- Pump Two circuit, up to 2 speeds (When activated), 220V, 12A Max
- Blower circuit, 110/220V, 7A Max
- Circ Pump circuit, 110/220V, 4A Max (24Hr when activated, Requires 25 GPM)
- Ozone circuit, 110/220V, 1A Max
- 12V 12W Light circuit
- 1.4/5.5KW, 120/240V Flo-Thru heater, stationary
- 48" amp motor, blower, and ozone cords
- Topside Panel Included
- UL and ETL Listed
- Freeze protection
- High-limit protection
- Filtration mode
- Economy Mode
