Product Description

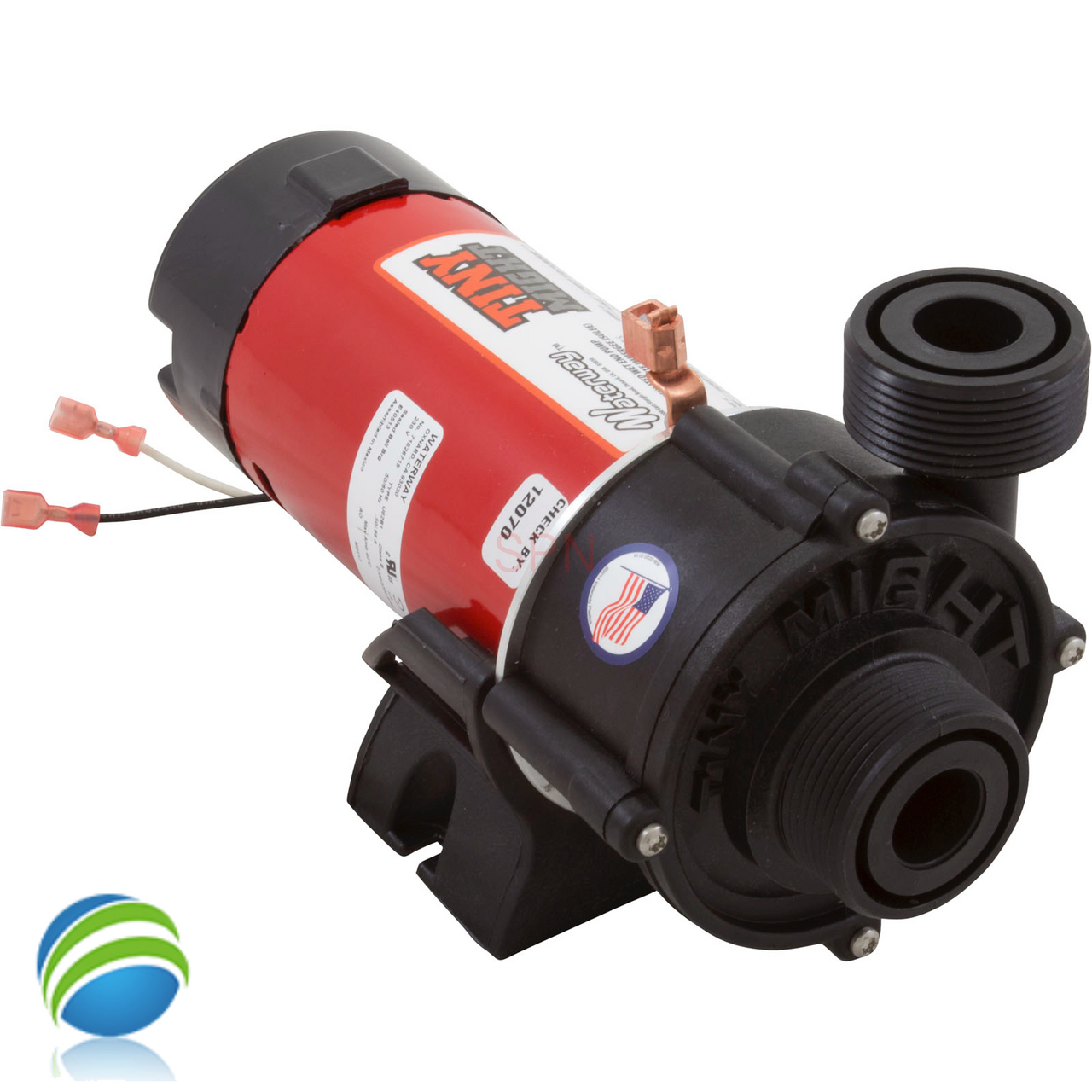

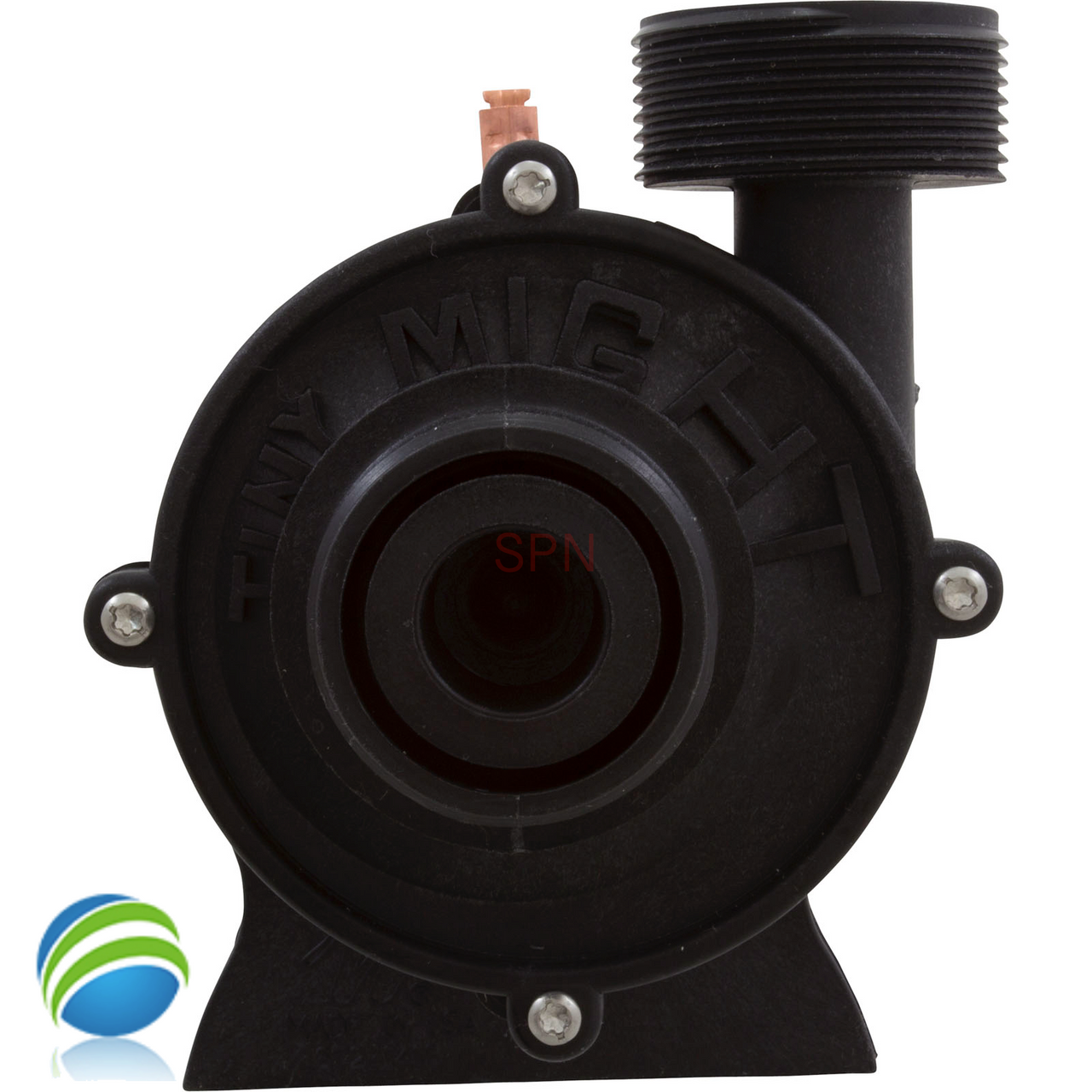

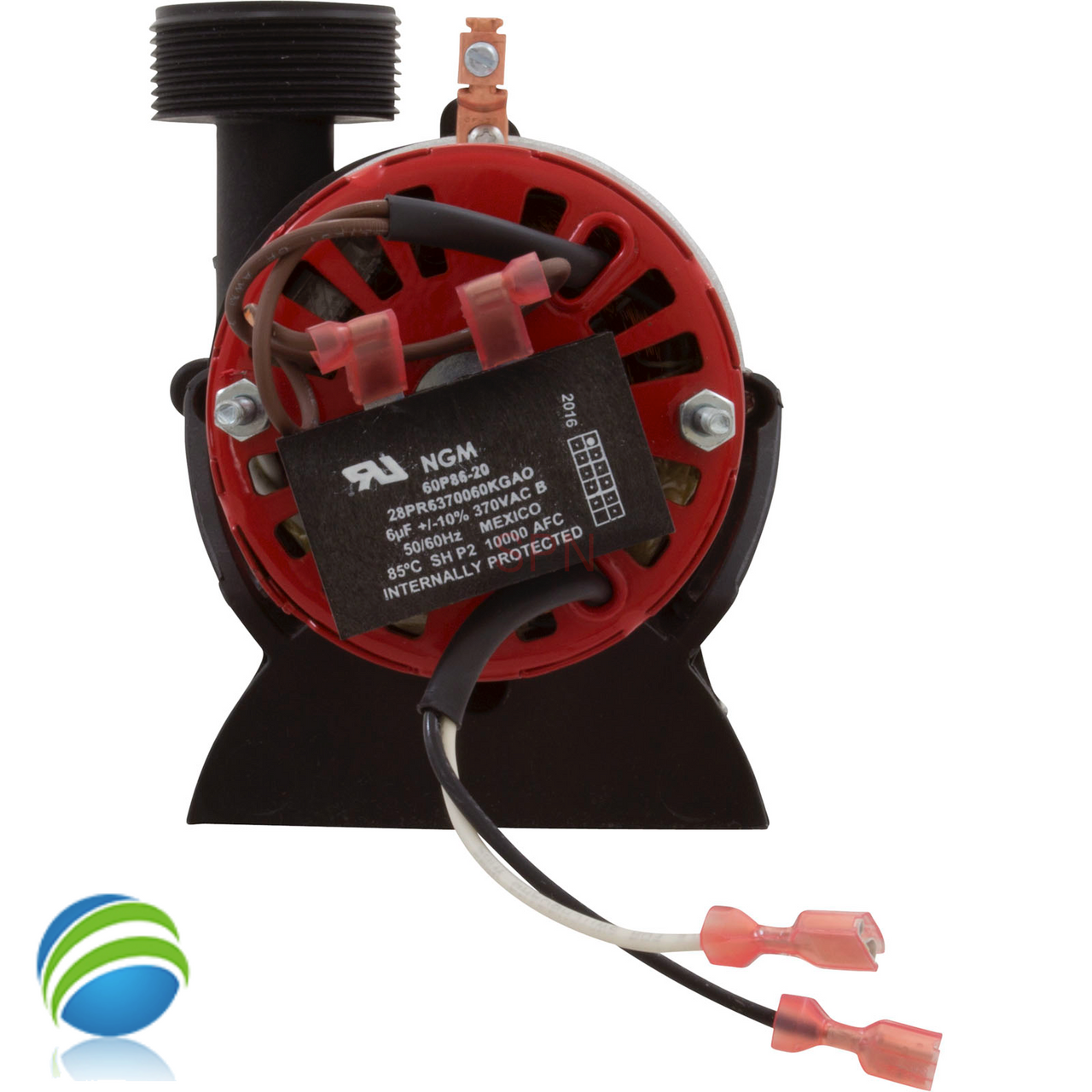

This is a Waterway Tiny Might Circulation Pump that is 1" x 1" which measures about 1 7/8" to the outside of the threads. It is high in efficiency and low on power use. Tiny Might packs a not-so-tiny punch. The Tiny Might offers you a great low flow alternative with high volume. It's quiet, dependable and will maintain your water flow during winter and warmer climates.
We offer this in a 230V verison as well Click here for that version HTP34-270-1020
Spa Pump Features:
- High volume side discharge efficiency
- 60% more efficient than similar center discharge pumps
- Side discharge for optimum flow
- 1" union or 1" barb
- Wetend can be rotated for easy installation
- Large 6-1/2" diameter wet end for higher head pressure
- Dimensions (H x W x L): 5.9" x 3.4" x 10.1"
- The shaft seal for this pump comes in two separate parts. Both are needed to complete a shaft seal replacement.
| Complete Pump Type | Circulation Pump |
| Speed | 1 Speed (1-Spd) |
| Motor Voltage | 115v |
| Drain Plug Location | None |
| Pump to Motor Foot Types | Footless |
| Suction Style | Center |
| Suction Connection (Physical Dimension) | 1-15/16" od, 3/4" id |
| Suction Connection Type | Male Buttress Thread (mbt), Slip (s) |
| Suction Pipe Size | 1", 1/2" |
| Discharge Style | Side |
| Discharge Connection (Physical Dimension) | 1-15/16" od, 3/4" id |
| Discharge Connection Type | Male Buttress Thread (mbt), Slip (s) |
| Discharge Pipe Size | 1", 1/2" |
| Horsepower | 1/16hp |
| Motor Amperage/Wattage | 0.8A |
| Manufacturer | Waterway |
| Pump Model | Tiny Might |
| Volute Fastening Type | 4 Screws |
