Product Description

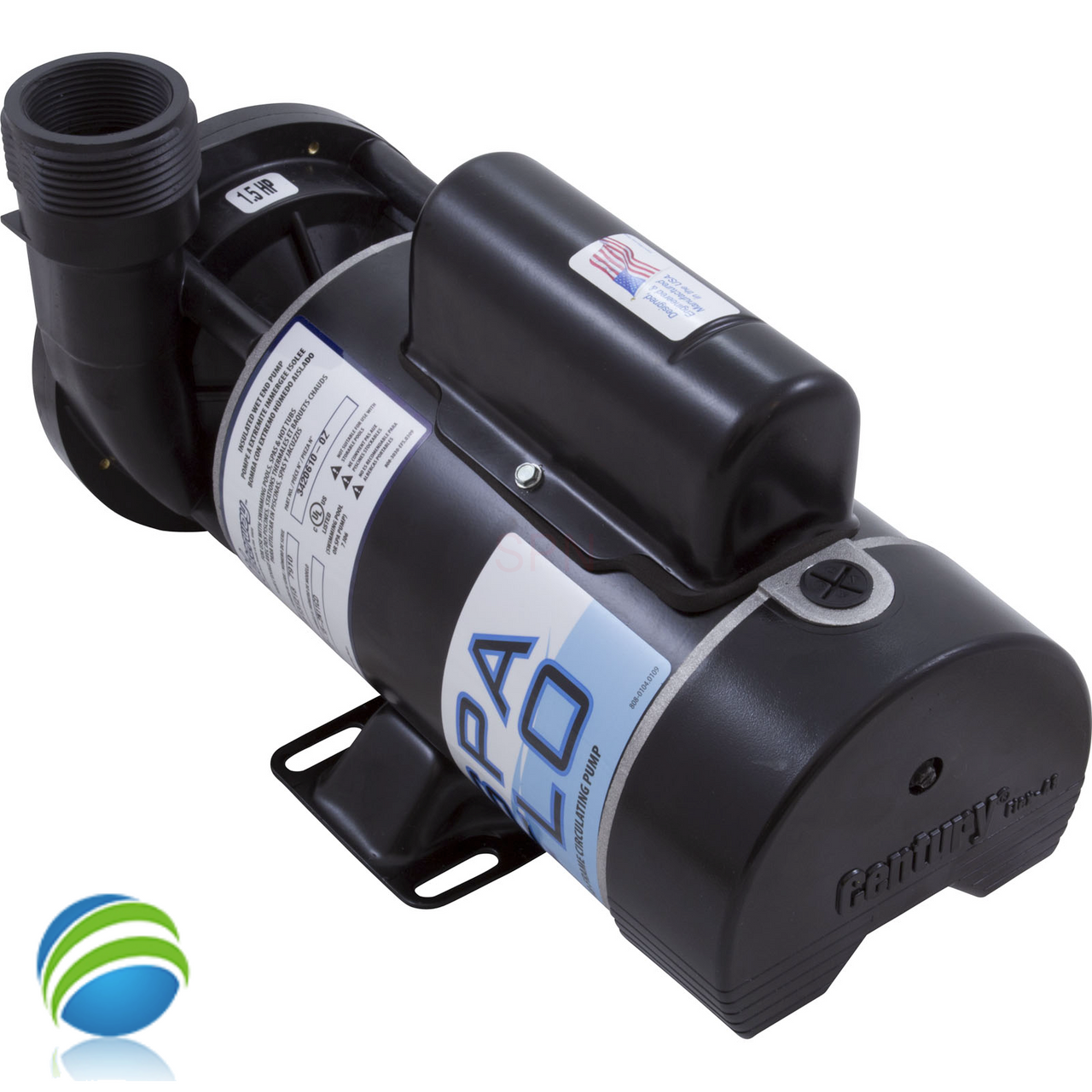

Waterway Spa-Flo II side discharge 1.5 Hp pump assembly in 115 Volt. Made as a direct replacement for the Aqua-Flo FMHP pump and backed by Waterways proven reliability. Can be used as a generic replacement in the pool or spa environment and is made with efficiency and power in mind. This two speed pump will replace all single speed versions - Just wire up the high speed!
| Motor Voltage | 115v |
| Speed | 2 Speed (2-Spd) |
| Motor Amperage/Wattage | 13.4A/4.8A |
| Horsepower | 1.5hp |
| Manufacturer | Waterway |
| Pump Model | Spa Flo |
| Suction Pipe Size | 1-1/2" |
| Suction Connection Type | Female Pipe Thread (fpt), Male Buttress Thread (mbt) |
| Suction Style | Center |
| Discharge Pipe Size | 1-1/2" |
| Discharge Connection Type | Female Pipe Thread (fpt), Male Buttress Thread (mbt) |
| Discharge Style | Side |
| Motor Frame | 48 Frame Thru-Bolt |
| Drain Plug Location | 7,10 o`clock |
Please Note: Many of these pumps were marked with the break or uprated horsepower (BHP, SPL), but what you want is actually a pump voltage, amperage rating and frame size that closely matches yours. Waterway reserves the right to change amperage or capacitor placement without notice
