Product Description

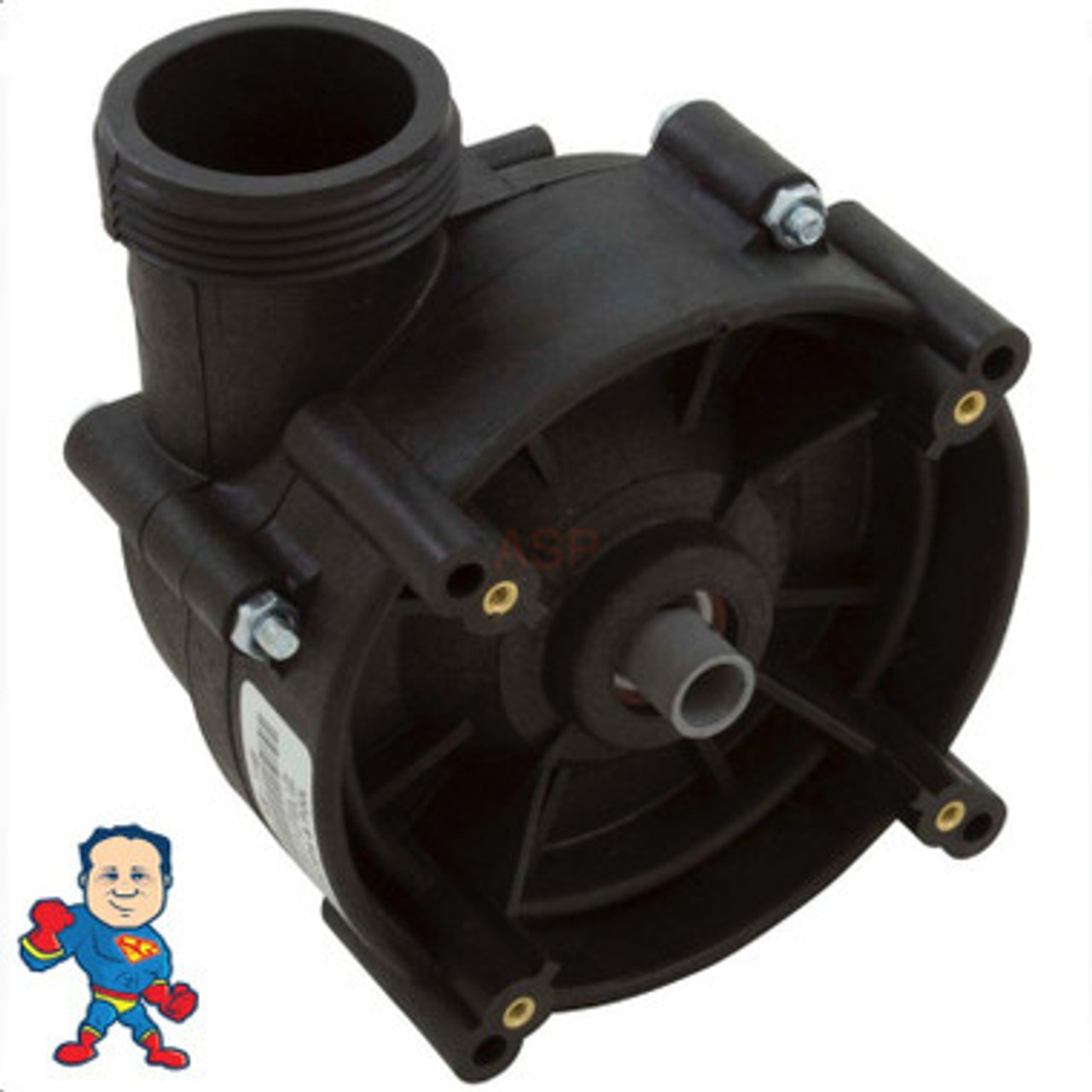

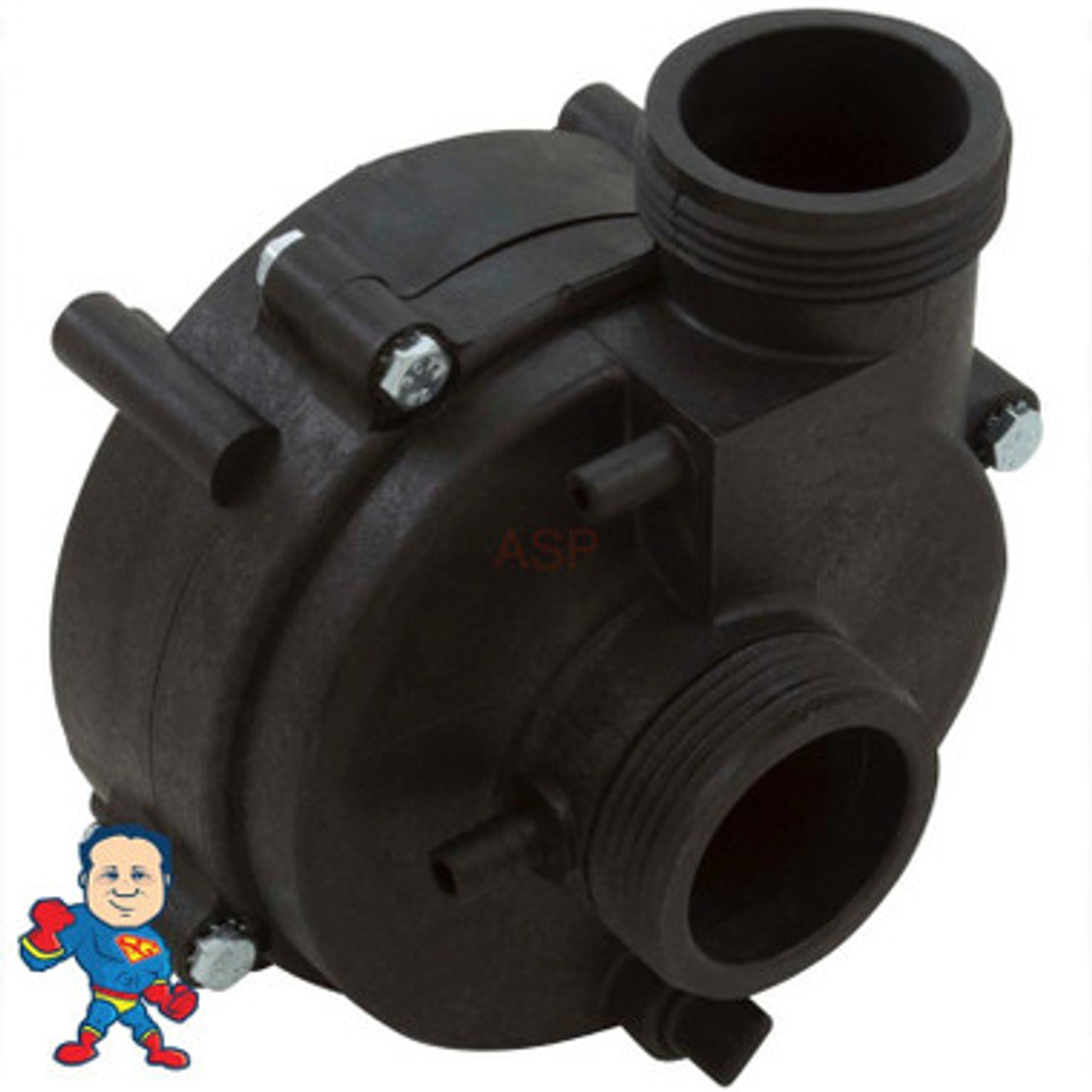

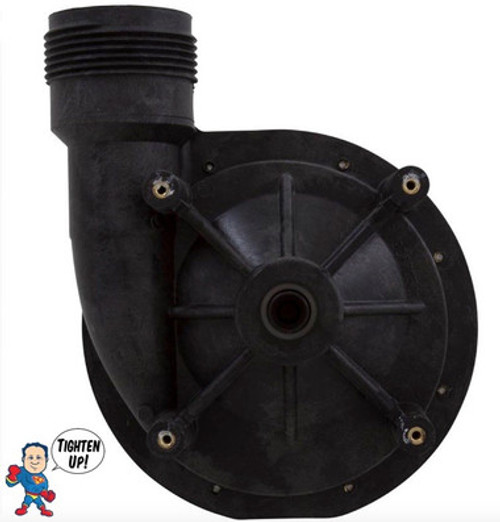

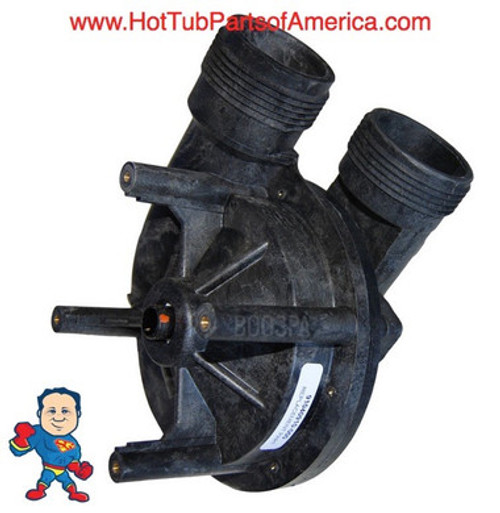

This part is a Complete 1 HP 48 Frame Vico Wet End that is very unusual with the Heat Blanket Circulation Nipples.. It is 1 1/2" x 1 1/2" meaning it measures about 2 3/8" edge to edge on the threads.. Most wet end that look like this one measures 3" edge to edge on the threads and is called a 2" Wet end.. T
Note: The motor this wet end would fit would have 9Amps on high speed at 230V or up tp 14Amps High Speed at 115V..
Note: This wet end does have the water circulation nipples on it for the motor Heat Blanket
Manufacturer Vico/Balboa
Pump Model Ultima
Motor Frame 48 Frame Thru-Bolt
Drain Plug Location 6 o`clock
Suction Style Center
Suction Connection Type Male Buttress Thread (mbt)
Suction Pipe Size 1-1/2"
Discharge Style Center
Discharge Connection Type Male Buttress Thread (mbt)
Discharge Pipe Size 1-1/2"
Horsepower 1.0-1.5hp
Volute Fastening Type 4 Bolts and 4 Nuts
