Vico Ultima Wetend 2" Side Discharge 48 Frame

Product Description

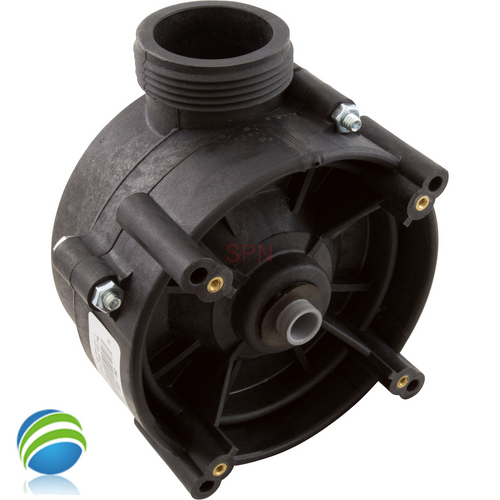

Vico Ultima 2" side discharge wetend made by Balboa Water Group. Everything you need to replace your old 48 frame wet end is included. Complete wet ends include the volute, seal assembly, impeller, wear ring, volute o-ring, suction faceplate, drain plug & suction cover screws.

AKA/Replaces: PKUL7SDCS, 1215156, PKUL10HSDCS, PKUL15TDCS, PKUL305DCS2-2, PKUL40HSDS, PVU1520CS, PUUL1515CS, PUU3020CS, PUU4020CS, PUU1515CS, 1215186, 1215161, 1215169

2" Ultima SD Features:

• 2" intake and discharge (3" thread diameter)
• 48 Frame mount
• Side Discharge

Color Coded Rings Key

• Gray = .75 HP
• Black = 1.0 HP
• Red / Green = 1.5 HP
• Red = 2.0 HP
• Red / Black = 3.0 HP
• Black / Green / Red = 4.0 HP

Please Note: Colored rings on the impeller sleeve will indicate the actual wetend horsepower (see chart below). This is important as some motor and pump assemblies will mark the uprated (BHP, SPL) horsepower, rather than the actual. An unfortunate side effect of marketing in the industry. If color coded rings are not visible please call our technical support team for assistance with motor volts, amperage and frame size.
