Product Description

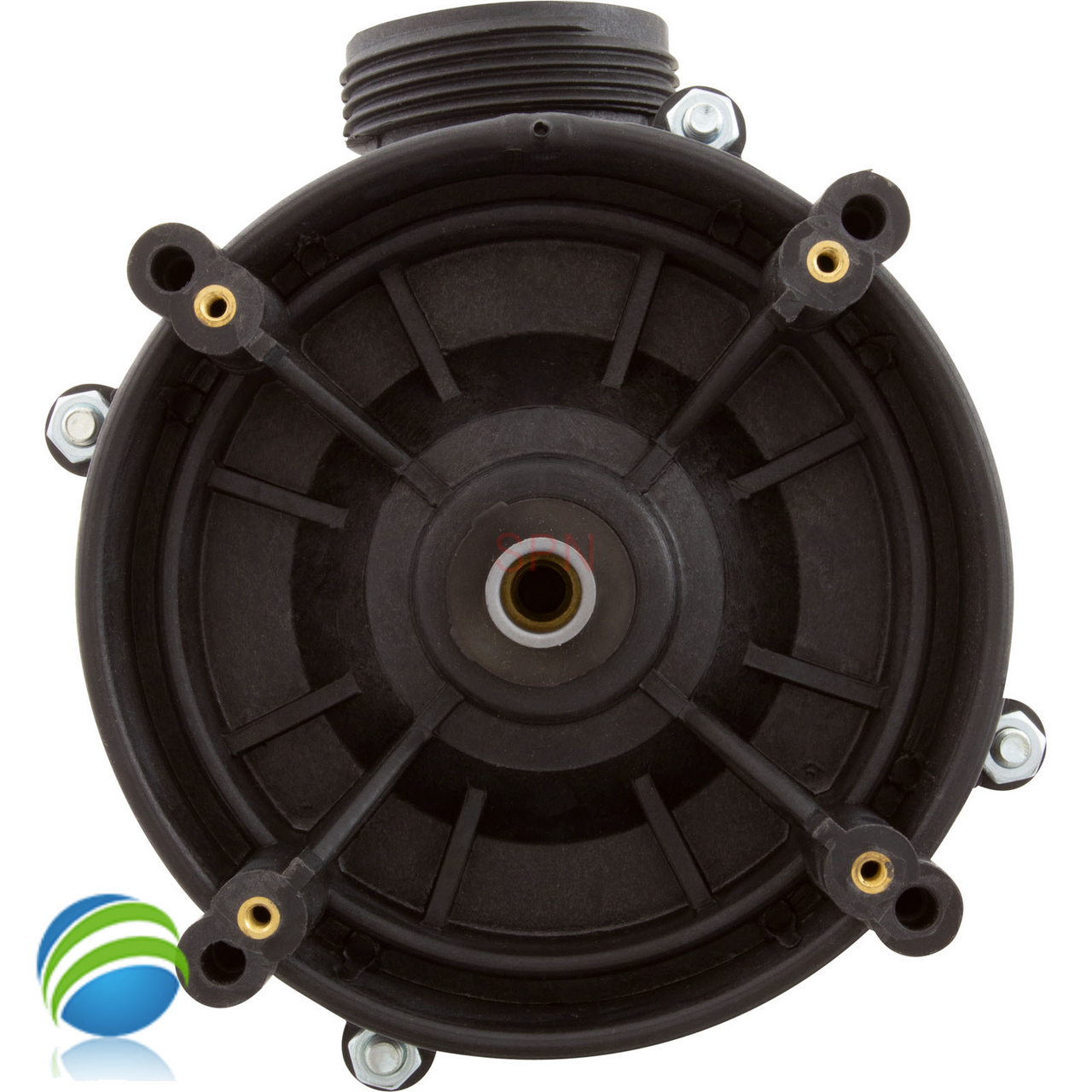

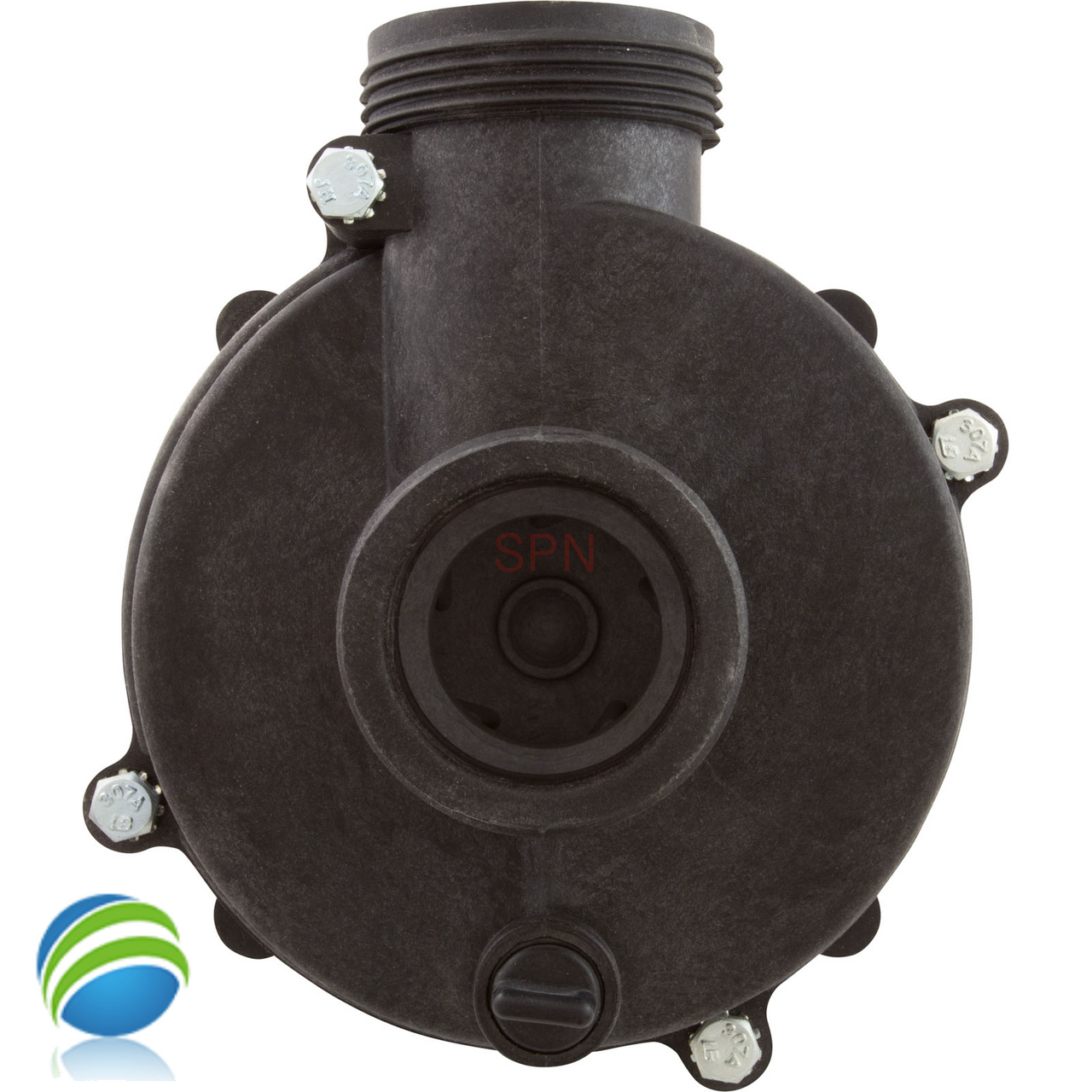

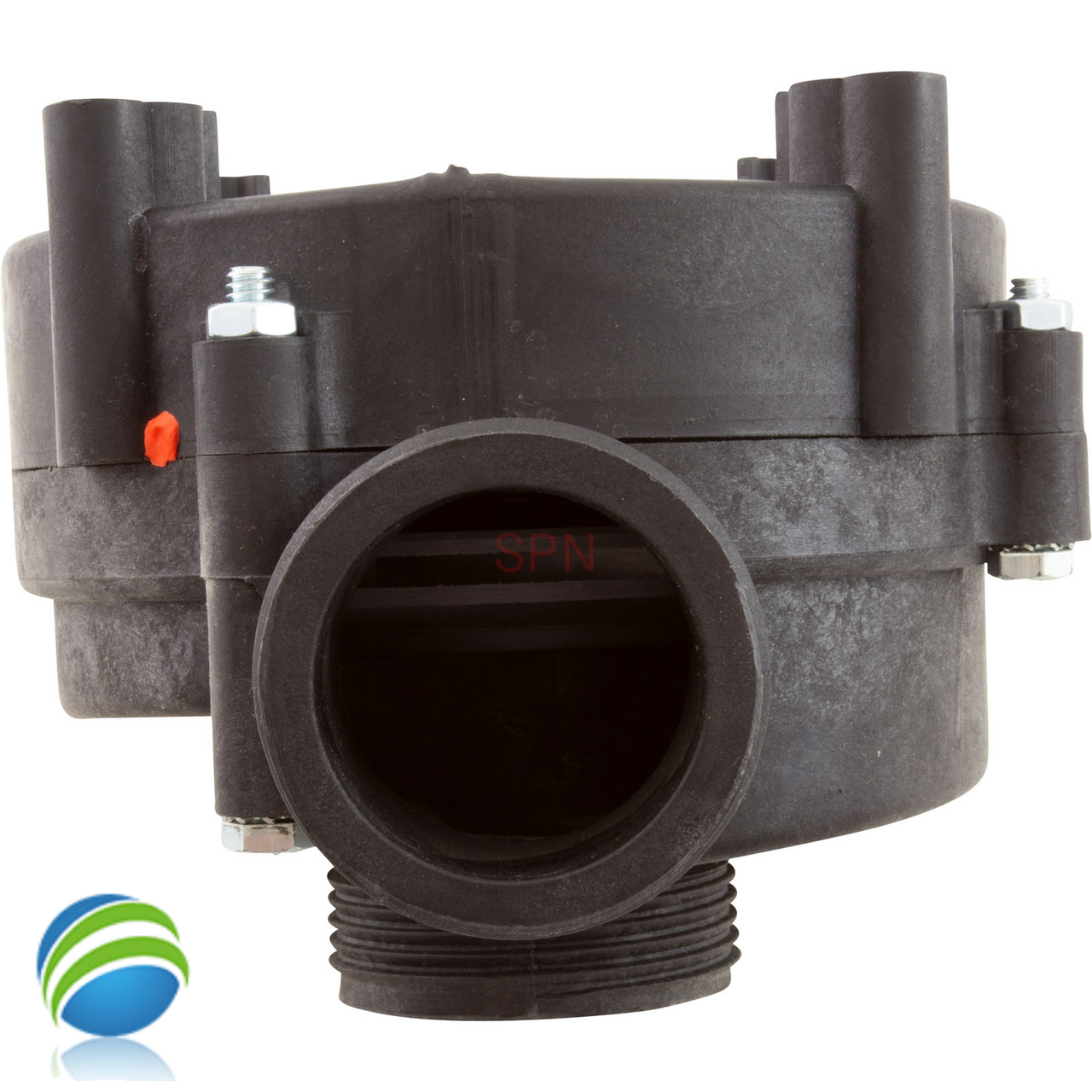

Vico Ultima 1.5" center discharge wetend made by Balboa Water Group. Everything you need to replace your old 48 frame wet end is included. Complete wet ends include the volute, seal assembly, impeller, wear ring, volute o-ring, suction faceplate, drain plug & hardware.
Horsepower ratings of .75 - 1.5 are selected through the drop down boxes. You also have an option to add a gasket - the gasket type we send is the universal flat style that replaces almost all previous types
1.5" Ultima CD Features:
- 1.5" intake and discharge (2-3/8"" thread diameter)
- 48 Frame mount
- Center Discharge (Inline with suction)
- Removable drain plug
Color Coded Rings Key On Impeller Sleeve:
- Gray = .75 HP
- Black = 1.0 HP
- Red / Green = 1.5 HP
Please Note: Colored rings on the impeller sleeve will indicate the actual wetend horsepower (see chart below). This is important as some motor and pump assemblies will mark the uprated (BHP, SPL) horsepower, rather than the actual. An unfortunate side effect of marketing in the industry. If color coded rings are not visible please call our technical support team for assistance with motor volts, amperage and frame size.
