Product Description

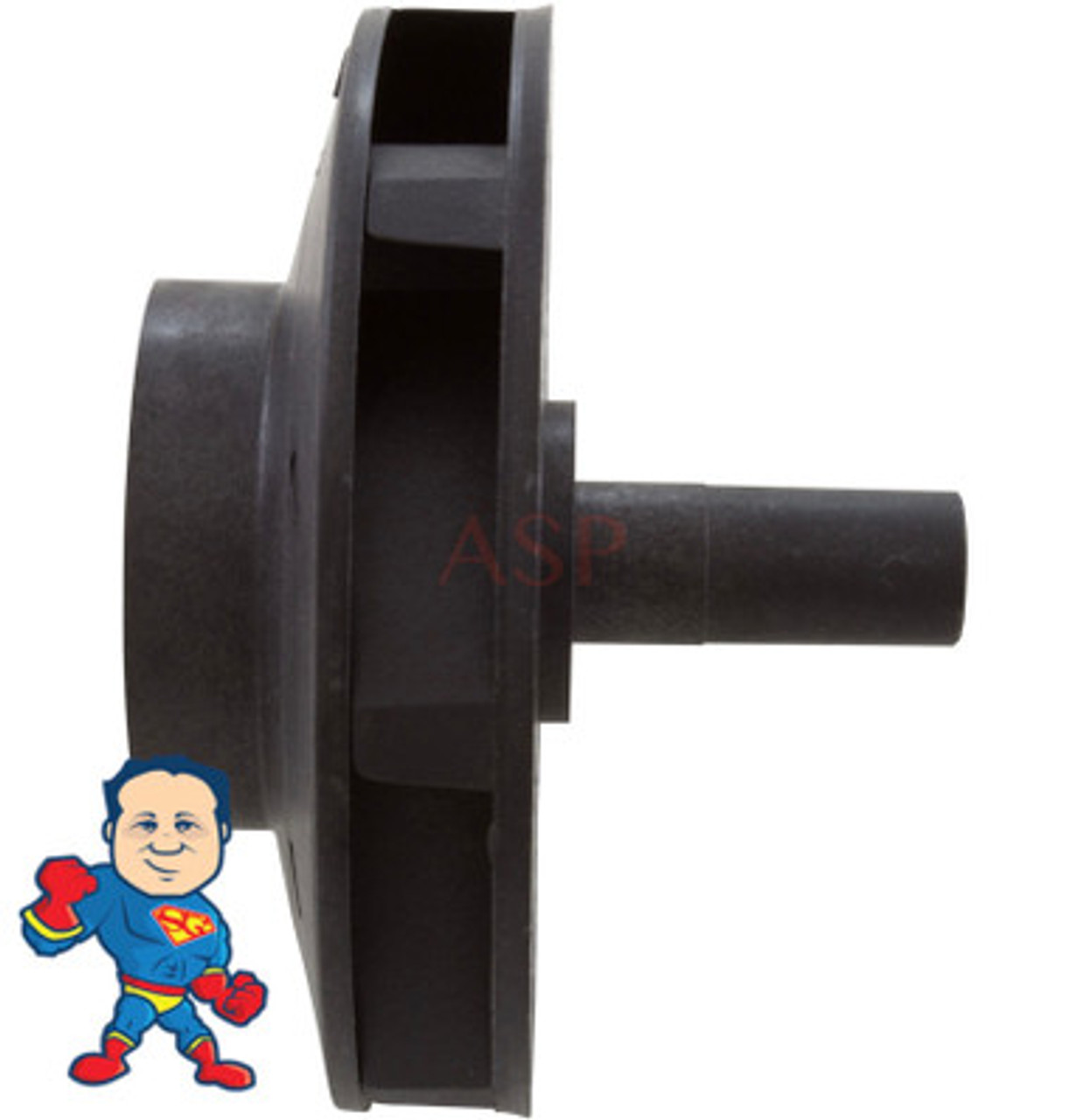

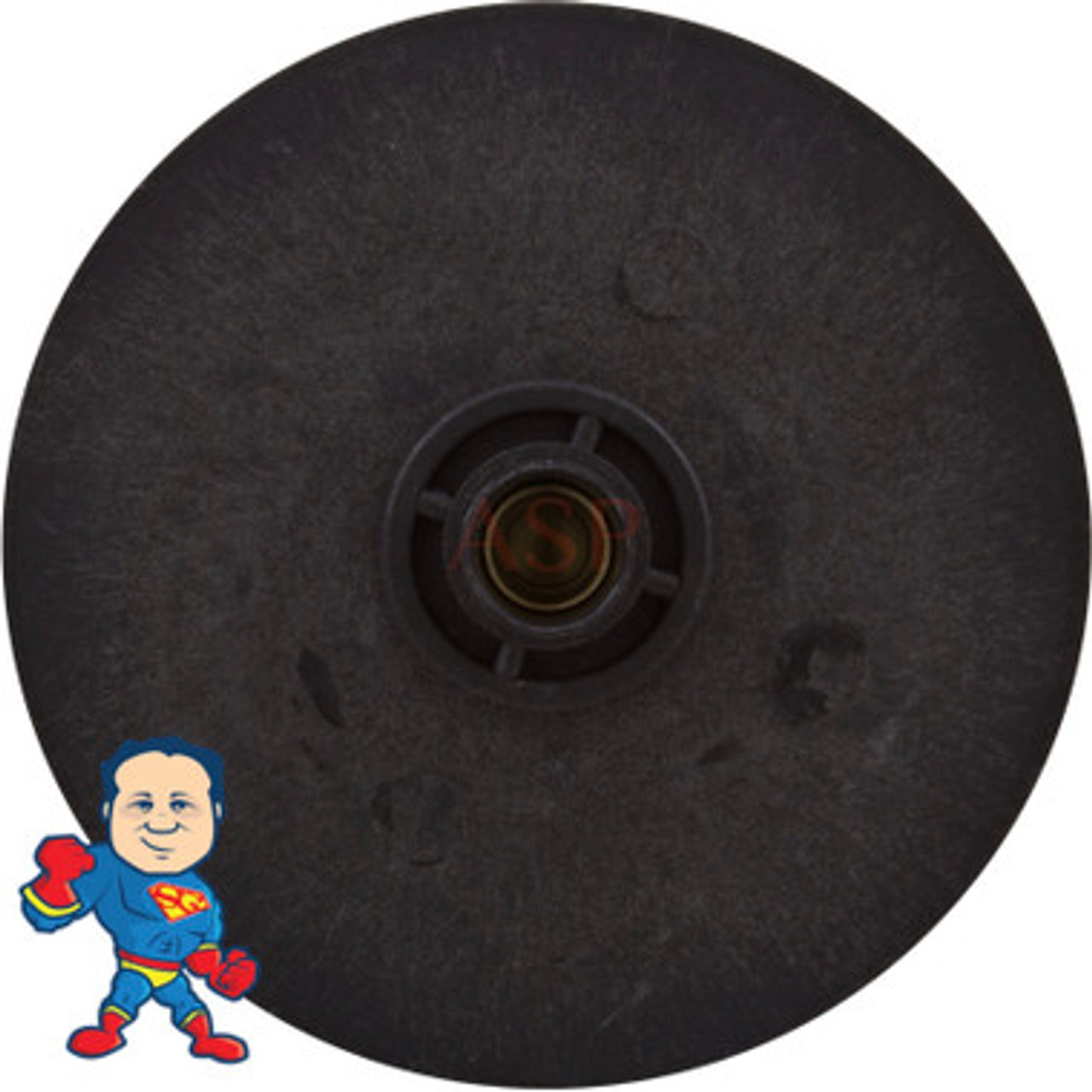

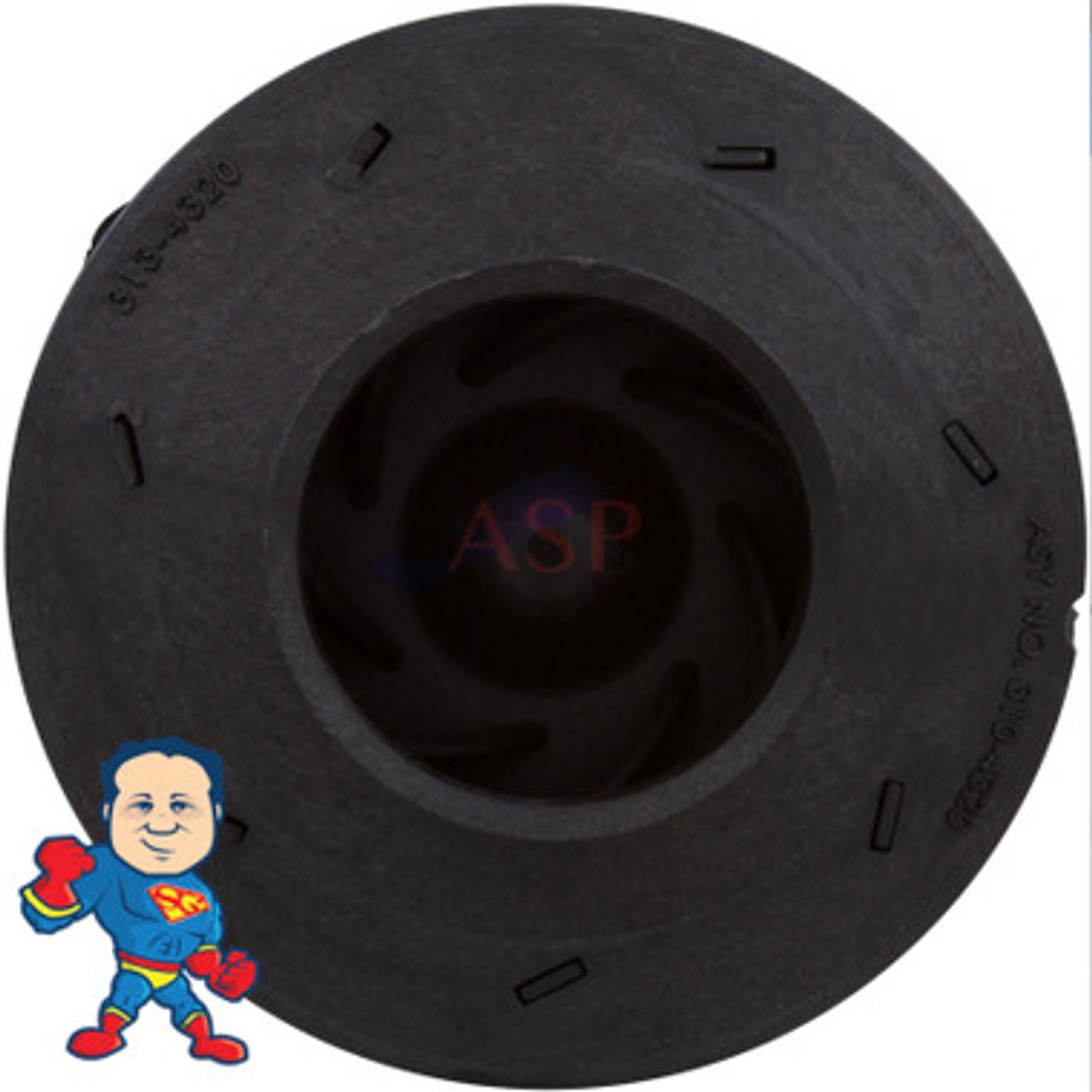

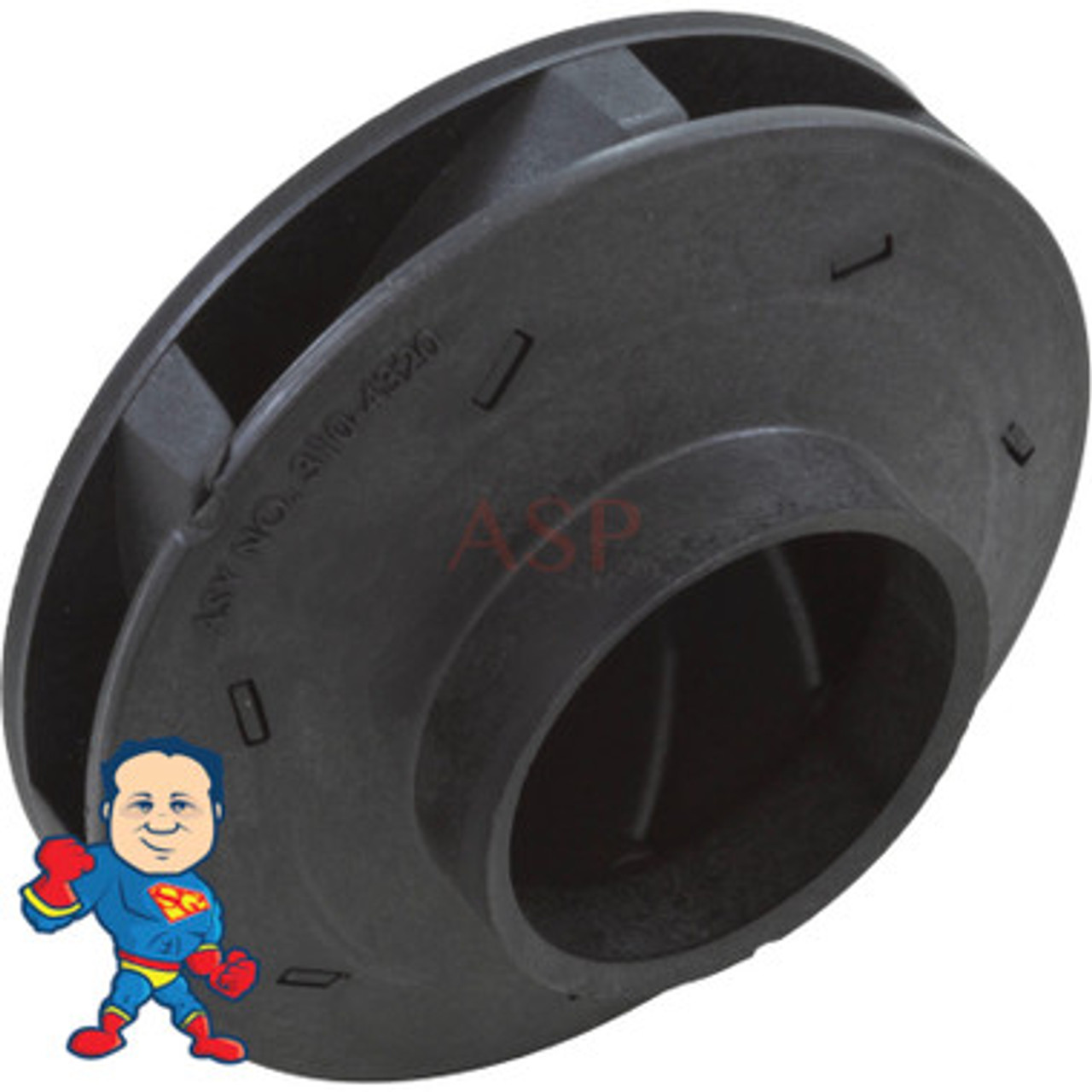

This is a 2.5HP Impeller with a 2 1/8" Eye width for a Waterway 48 or 56 Frame Wet End 2.5HP Motor that is about 11.0 Amps on High Speed.
This Impeller fits between the Face and the Volute of an Waterway EX2 Wet End which is very rare and odd.
I would advise replacing the Seal when you replace the Impeller.
This Impeller uses a PS-200 Seal that can be found Click Here.
| Impeller Type | Closed Face |
| Impeller Diameter OD | 4-1/4" |
| Vane Width ID | 7/16" |
| Eye Diameter OD | 2-1/8" |
| Eye Length | 1/2" |
| Impeller Width OD | 11/16" |
| Seal Seat Depth | 1/8" |
| Shaft Length | 1-1/2" |
| Shaft Diameter OD | 5/8" |
| Seal Seat Diameter OD | 1-1/4" |
| Manufacturer | Waterway |
| Pump Application | EX |
