Product Description

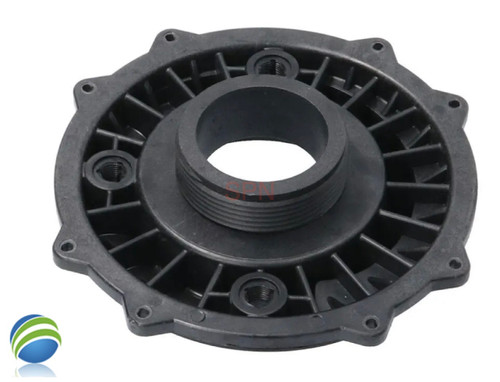

Waterway's new EX2 Series side discharge hot tub and spa wetends made by the industry leader in spa pumps. The EX2 wetend will directly replace many 48 and 56 frame Aqua-Flo XP2 and XP2e spa pumps without sacrificing performance and flow rates. Backed by USA made quality, with performance in mind. A great wetend for many older discontinued makes and models.
These wetends have mounting for 48 and 56 frame motors. The union connections are considered 2" but measure 3" across teh male threads.
Select your horsepower from the drop down list
| Manufacturer | Waterway |
| Pump Model | EX2 |
| Motor Frame | 48 Frame Thru-Bolt, 56 Frame Thru-Bolt |
| Drain Plug Location | 4,6,9 o`clock |
| Suction Style | Center |
| Suction Connection Type | Male Buttress Thread (mbt) |
| Suction Pipe Size | 2" |
| Discharge Style | Side |
| Discharge Connection Type | Male Buttress Thread (mbt) |
| Discharge Pipe Size | 2" (3" thread diameter) |
| Horsepower | 1.5hp - 3.0hp |
| Volute Fastening Type | 8 Screws |
