Product Description

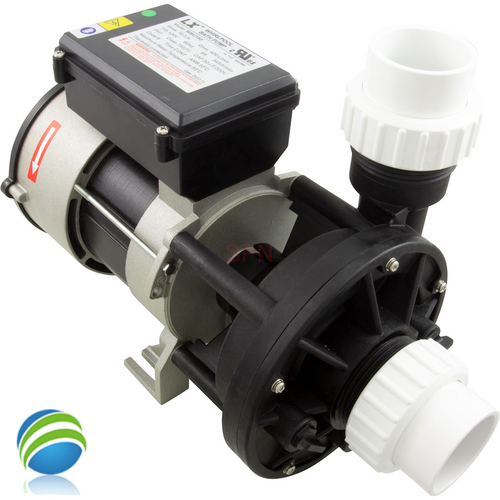

This Item is a 1.0 Horse Power 9.0 Amp (1) Speed 48 Frame Complete 1 1/2" Side Discharge Pump found in some Lifesmart Hot Tubs. It may have a Watkins Vendor Code 3536 LX Brand Pump. These pumps usually have the part number 1431501-03 on the label for a Watkins Version.
This is a link for the seal kit for this pump: Pump Seal Kit for 1431501-03 Lifesmart Pump
This is a link for the wear ring of this pump: Wear Ring Watkins Lifesmart 1431501-03 Wet End Only
This is a link for the complete wet end of this pump: Complete Wet End 1431501-03 for Lifesmart Pump
For the complete pump click this link: 1431501-03 Lifesmart Complete Pump
| Manufacturer | Lingxiao-Pump |
| Pump Model | WBC |
| Speed | 1 Speed (1-Spd) |
| Motor Voltage | 115v |
| Suction Style | Center |
| Suction Connection Type | Male Buttress Thread (mbt) |
| Suction Pipe Size | 1-1/2" |
| Discharge Style | Side |
| Discharge Connection Type | Male Buttress Thread (mbt) |
| Discharge Pipe Size | 1-1/2" |
| Motor Amperage/Wattage | 9.0A |
If your original Wet End has a Bleeder Barb and the heads of the Bleeder Screws in your old wet end have a spot for a flat screw driver you will need a new bleeder barb... If the original has a wing nut style you already have the newer style bleeder barb and will only need a new one if your original one breaks..



Click this link for the new Style Bleeder Barb: Barbed Bleeder Plug WUA Intertek LX 48 or 56 Frame Wet End Fine Threads
For the Bleeder Barb That fits this pump click Either of these links one is a 1/4" and one is a 1/2":
Barbed Bleeder Plug WUA Intertek LX 48 or 56 Frame Wet End Fine Threads
Pump Bleeder Barb, Watkins, Wavemaster, LX, 1/2" Barb x 1/4"Mpt
Independent Supplier & Replacement Part Notice
We are an independent parts supplier and are not affiliated with, sponsored by, or endorsed by Jacuzzi, Sundance Spas, Watkins, Hot Spring, Caldera, Tiger River, or Solana. These names and their part numbers are used only to show what the part fits.
Some parts we sell are genuine parts. Others are replacement parts made by another manufacturer that work in place of the original spa-brand part, and their brand and part number may be different from the original. Please check the specifications and fitment details before ordering.
