Product Description
Due to shortages of this pump we now send it as a separate motor and wetend that you will assemble onsite.

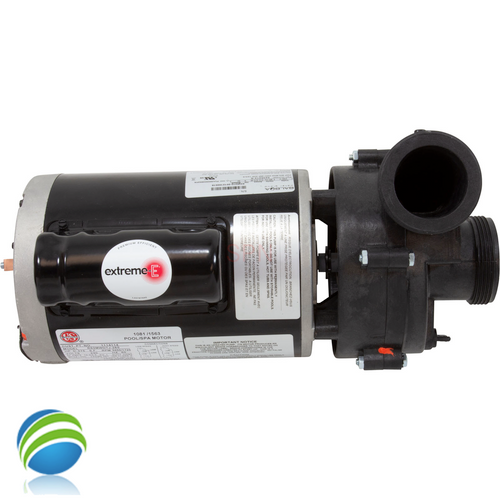

This is a direct replacement for older and discontinued Cal Spas Ultima Ultra Jet style pumps, many with the GE motor in gray or black. Your existing assembly may say 4 BHP, with a 10 amp motor and may be marked as a 56 frame (Original GE Model # 5KCR39UN2842CX). But the true frame size is 48 frame, which can be verified by measuring the motor thru bolts, which would measure roughly 3-5/8" (Under 4") vertically.
This side discharge pump has 2" unions that will measure 3" across the male threads on the wetend. Your power cord will get transferred from your old model to this one.
Replaces: PUULC220258220H, 1014201, 1014164, PUUL220258220R, 1015217, PUUPS40258220H, 5KCR39UN6051AX
Please see the additional photos for a comparison to your existing pump.
Pump assembly features:
- New Rating = 230 Volts, 12.0 amp
- Marketed As 4 BHP, true running 3 HP
- 2 Speed (1725/3450 RPM) motor
- 2" intake and discharge (3" thread diameter)
- Wetend adjustable to three positions
- Quiet 48 frame motor
IMPORTANT MOTOR VARIATION NOTICE
Due to ongoing changes in the hot tub pump industry since COVID, motor appearance and configuration may vary, even when the part number is the same. While the pump wet end will be correct, the motor may differ in areas such as capacitor location, labeling, or housing.
If you have a specific motor requirement (clearance, capacitor position, orientation, etc.), you must contact us before ordering so we can verify availability. Do not order first and contact us after delivery due to appearance differences.
Motor variations are outside of our control and may change week to week. Appearance differences do not constitute an incorrect item if specifications are met.
