Product Description
Gecko has updated this original unit to the V3 model which moved the receptacles and also defaults all component voltages to 230 Volts. This new unit replaces all previous models.

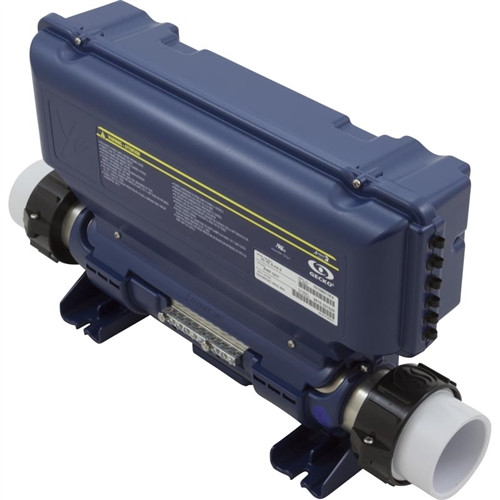

Gecko In.Ye-5 control system with heater only. The In.Ye has built in heater probes which provide for self diagnostics, freeze control and verification of water flow - No more Pressure Switch! Also WiFi Ready via In.Touch 2 system (Sold separate). Can setup for various configurations right from the topside control. These settings make the in.ye system work with spas that have a single pump all the way up to dual pumps with circ Pumps. This is truly a versatile system.
Compatible Topsides: In.K450, In.K.200, In.K.35, In.K.19 (Dual and Single Pump Versions)
If you would like to control your tub through an app on your smart phone, the WiFi module for this pack is available here:Gecko / HydroQuip In.Touch 2 WiFi Module
Features:
- Supports topside, heater, and 5 configurable relays/circuits
- Solid-state water flow detection: No pressure switch to adjust
- IPX5 rated waterproof design
- Preloaded configuration allows fast and easy installation
- in.touch WiFi module compatible (Sold Separately)
- 115v/230v Convertible
- Each output voltage can be configured to 115v or 230v
- Standard 15" 4.0 KW Heater w/ 2" unions, Fixed
Control Box Dimensions:
| Height | Width | Depth |
| 10-3/4" | 19-5/8" | 5" |
Location of receptacles for MOST setups. Check the configuration sheet below for specific locations. Each setup may route a certain component to another receptacle other than what is shown below. This is because this versatile system can be set many ways depending on needed support:
| Manufacturer | Gecko |
| Model | in.ye-5 |
| Supply Voltage | 115v, 230v - 4 Wire |
| Heater Type | Fixed - Bottom - 15" Flange to Flange - 2" Union (3" female thread) |
| Heater Wattage | 1.0kW, 4.0kW |
| Circ Pump Ready | Yes 115v/230v |
| Auxiliary Topside Ready | Yes |
| Fiber Optic | No |
| Accessory Ready | Yes |
| Wi-Fi Compatible | Yes |
| 50/60 HZ | 60Hz |
Here is some information on getting into the Low Level (LL) and Breaker (BR) Settings. The LL setting is set depending on what equipment you need to support:
Here are the Low Level Config Settings for this system. Once you find the configuration you need check under each item for the location of the receptacle - For example, Pump 1 = A2 :
