Product Description

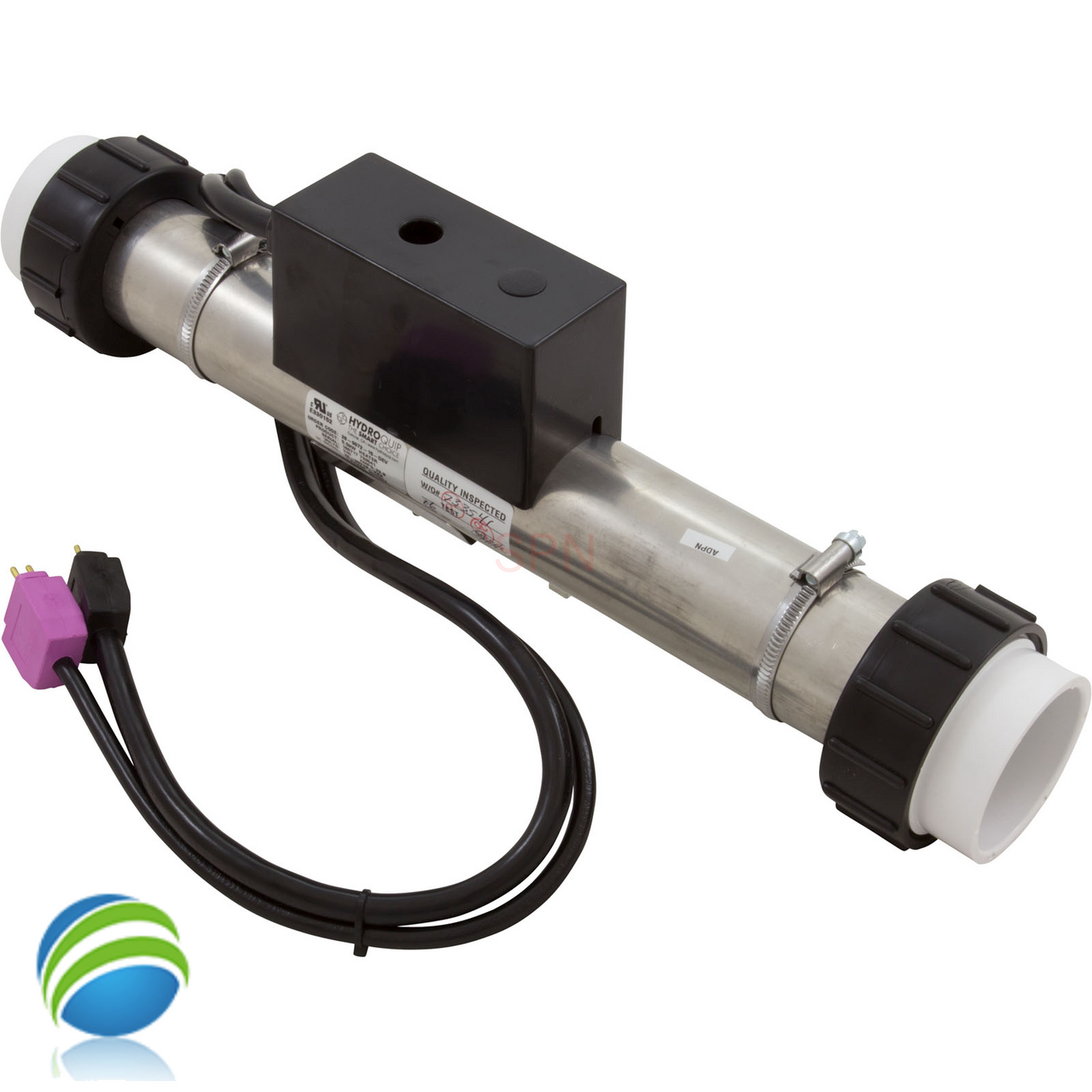

HydroQuip 5.5 KW Slide heater assembly used in the HydroQuip Gecko Series controls - CS6209, 6229, 6239, 6339 and 7509. This 15" flow thru heater is meant to mount to the bottom, or can slide up and down the back of your HydroQuip CS spa pack. It can also be mounted within 30" of the spa pack for a remote installation. Cables for the power, pressure switch and hi-limit sensor are built into this heater along with the pressure switch.
Includes 2" union which measure 3" inside diameter, tailpieces and union gaskets.
| Housing Configuration | Straight |
| Heater Length | 15" |
| Lead End Terminal Location | 5-1/4" |
| Threaded Tap Orientation | 12 O`Clock |
| Threaded Tap Location | 7-3/4" From Leading End |
| Kilowatts | 1.375kW, 5.5kW |
| voltage | 115v, 230v |
| Sensor Stud Location | 5-5/8" |
| Sensor Stud Orientation | 6 O`Clock |
| Mounting Stud Type | Adjustable |
| Heater Size | 2" |
