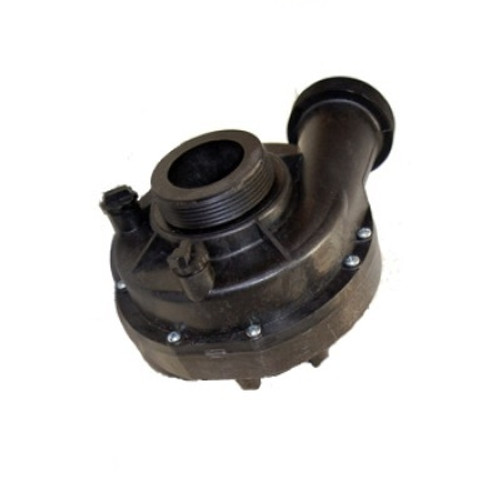

TheraFlo Wetend 2.0 HP (4.0 BHP/SPL) Sundance & Jacuzzi Spas

Product Description

Unique wetend that has been used on many models of Sundance and Jacuzzi spas from 1997- 2009. This is the most versatile wetend in the industry and has the ability to mount in one of eight positions to accommodate multiple plumbing scenarios. Considered a side discharge wetend and is truly one of a kind. Can also be used as a universal replacement for many discontinued wetends. Mounts to a 48 frame motor with or without the fixed mount. This is the preferred repair path when repairing these pumps as there are a few different diameter impellers and this wetend replaces all previous molds/versions.

Many of these pumps were stamped with 4.0 HP (BHP or SPL) which is the brake horsepower, not the true running horsepower of 2.0 HP.

TheraMax Wetend Features:

• 2" intake and discharge (3" thread diameter)
• 48 Frame Side Discharge wetend
• 2.0 HP (4.0 BHP/SPL)
• 8 mounting holes for versatility
• Can be mounted in the 12:00, 1:30, 3:00, 4:30, 7:30 or 9:00 o'clock positions

Used on Sundance & Jacuzzi Models: Maxxus, Optima, Cameo, Majesta, Altamar, Marin, Capri, Hamilton, Chelsee, Certa, Palermo, Bahia, Optima, Telluride, Caprio ST, Calypso I & II, Portofino Series, Sweetwater Spas, J-325, J-330, J-335, J-340, J-360, J365, J-370, J-375, J-380, J-385, J-345, J350,

Replaces wetend on pump models: 6500-768, 6500-762, 6500-260, 6500-761, 6500-261, 6500-254, 6500-263, 6500-268, 6500-760, 6500-269, 6500-266, 6500-262, 6500-264, 6500-257, 6500-265

Please Note: 48 Frame motors will have a vertical thru bolt spacing of 3-5/8" (center to center on each bolt) and if you get over 4" than you have the 56 frame version and this wetend will not fit your motor.
