  • Waterway Executive Wet End 48 Frame All Horsepowers.. See the next 2 pictures for the Suction Fitting Size Variation measurements.. There is a 2" and 2 1/2" Version. Be sure you know which one before ordering..
    Waterway Executive Wet End 48 Frame All Horsepowers.. See the next 2 pictures for the Suction Fitting Size Variation measurements.. There is a 2" and 2 1/2" Version. Be sure you know which one before ordering..
  • There is a 2" and 2 1/2" Version. Be sure you know which one before ordering.. This one is the 2" version which measures about 3" Across the Threads.
    There is a 2" and 2 1/2" Version. Be sure you know which one before ordering.. This one is the 2" version which measures about 3" Across the Threads.
  • There is a 2" and 2 1/2" Version. Be sure you know which one before ordering.. This one is the 2 1/2" version which measures about 3 5/8" Across the Threads.
    There is a 2" and 2 1/2" Version. Be sure you know which one before ordering.. This one is the 2 1/2" version which measures about 3 5/8" Across the Threads.
  • The Pressure Side is the same for all Executive 56fr Wet Ends. It measures about 3" Across the threads..
    The Pressure Side is the same for all Executive 56fr Wet Ends. It measures about 3" Across the threads..
  • You can add a Bleeder Barb when you check out if you need a new one.
    You can add a Bleeder Barb when you check out if you need a new one.
  • This number is the same on all frames and HP's so it cannot be used to choose a wet end..
    This number is the same on all frames and HP's so it cannot be used to choose a wet end..

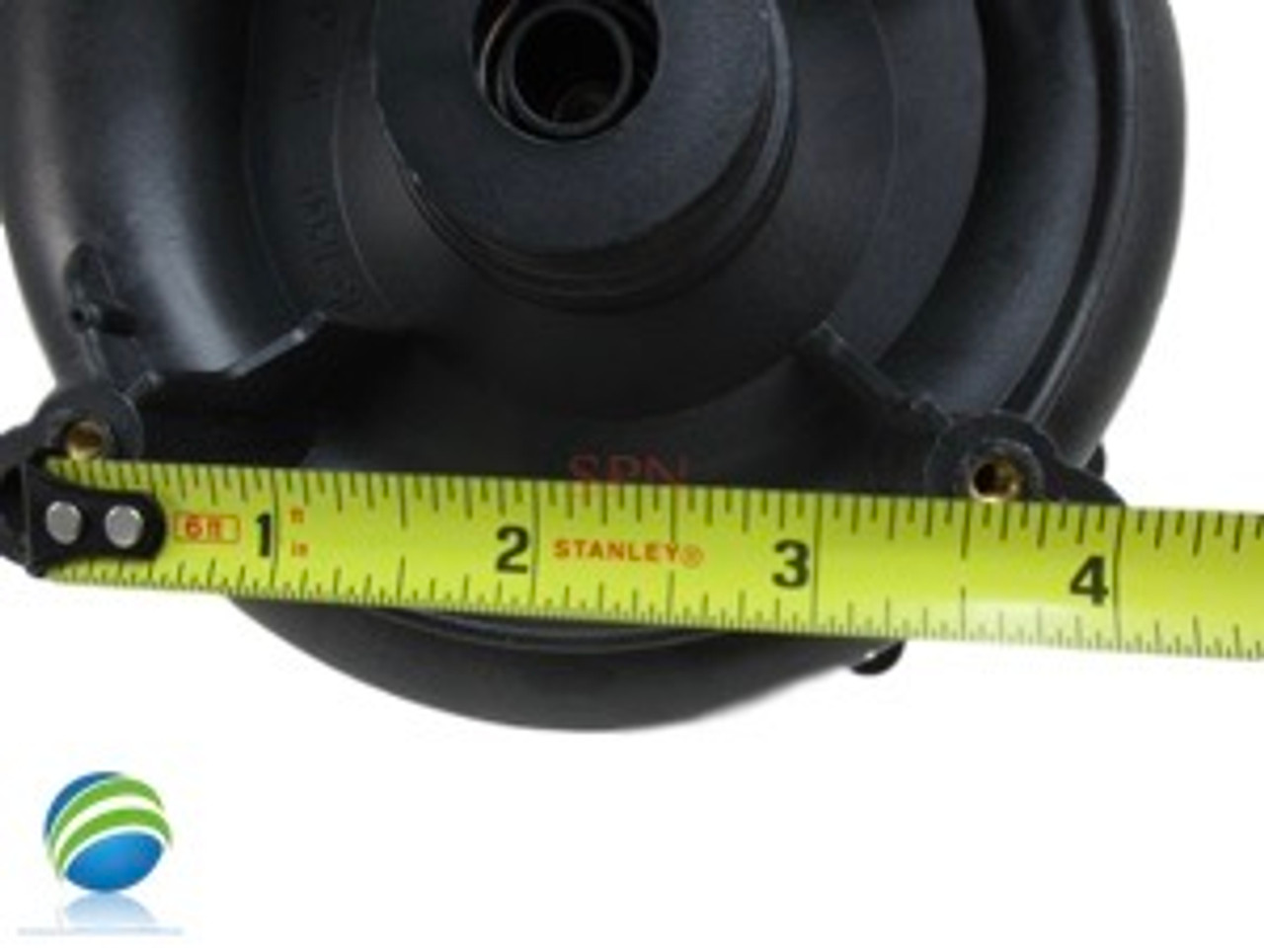

  • This is an example of the measurements of a 48fr Wet End. Another way to tell the frame is the head size of the thru bolts that hold the wet end on the motor.. 48fr is always 1/4" bolt heads..
    This is an example of the measurements of a 48fr Wet End. Another way to tell the frame is the head size of the thru bolts that hold the wet end on the motor.. 48fr is always 1/4" bolt heads..
  • This is an example of the measurements of a 48fr Wet End. Another way to tell the frame is the head size of the thru bolts that hold the wet end on the motor.. 48fr is always 1/4" bolt heads..
    This is an example of the measurements of a 48fr Wet End. Another way to tell the frame is the head size of the thru bolts that hold the wet end on the motor.. 48fr is always 1/4" bolt heads..
  • Waterway Executive Wet End 48 Frame All Horsepowers.. See the next 2 pictures for the Suction Fitting Size Variation measurements.. There is a 2" and 2 1/2" Version. Be sure you know which one before ordering..
    Waterway Executive Wet End 48 Frame All Horsepowers.. See the next 2 pictures for the Suction Fitting Size Variation measurements.. There is a 2" and 2 1/2" Version. Be sure you know which one before ordering..
  • The wet end on this pump can be turned to different positions. You simply loosen the through bolts on the back of the motor and pull the bolts out and turn the wet end the way you want it turned and put the through bolts back in..
    The wet end on this pump can be turned to different positions. You simply loosen the through bolts on the back of the motor and pull the bolts out and turn the wet end the way you want it turned and put the through bolts back in..
  • Waterway Executive Wet End 48 Frame All Horsepowers.. See the next 2 pictures for the Suction Fitting Size Variation measurements.. There is a 2" and 2 1/2" Version. Be sure you know which one before ordering..
    Waterway Executive Wet End 48 Frame All Horsepowers.. See the next 2 pictures for the Suction Fitting Size Variation measurements.. There is a 2" and 2 1/2" Version. Be sure you know which one before ordering..
  • The wet end on this pump can be turned to different positions. You simply loosen the through bolts on the back of the motor and pull the bolts out and turn the wet end the way you want it turned and put the through bolts back in..
    The wet end on this pump can be turned to different positions. You simply loosen the through bolts on the back of the motor and pull the bolts out and turn the wet end the way you want it turned and put the through bolts back in..
  • Waterway Executive Wet End 48 Frame All Horsepowers.. See the next 2 pictures for the Suction Fitting Size Variation measurements.. There is a 2" and 2 1/2" Version. Be sure you know which one before ordering..
    Waterway Executive Wet End 48 Frame All Horsepowers.. See the next 2 pictures for the Suction Fitting Size Variation measurements.. There is a 2" and 2 1/2" Version. Be sure you know which one before ordering..

    • Waterway Executive Wet End 48 Frame

    MSRP: $156.95
    $114.95
    (You save $42.00 )
    SKU:
    WW-EXEC48-WE
    Shipping:
    Calculated at Checkout
    Short Description:
    Product Code: WW-EXEC48-WE
    Adding to cart… category.add_cart_announcement

    Product Description

    The ever popular Waterway Executive 48 frame wetend available in your choice of frame and suction sizes. This wetend has been used by virtually all spa and hot tub manufacturers from 1998 forward. Common to find on many makes and models of spas and a very popular universal wetend.

    Easily identified by 8 Phillips head screws on the wetend faceplate and wetend will have part number 315-1220 stamped on the back of it. The 2" suction and discharge measures 3" across the male threads and the 2.5" suction will measure 3 5/8" across the male threads. The 48 frame wetend will have thru-bolt mounts that have a vertical measurement of roughly 3-5/8". If you get over 4" (4-1/4") then you will need the 56 frame version found under Product Code: WW-EXEC56-WE

    Executive 48 Wetend Features:

    • 48 Frame, Side Discharge wetend
    • Choice of 2" or 2.5 " suction for greater water flow and performance
    • Wetend is adjustable to one of 3 positions
    • 6 1/2" diameter wetend for greater head pressure
    • Viton Seals
    • Great replacement for many discontinued wetends


    Gaskets sent are universal flat gaskets Product Code: Flat Gasket, 2", Pump Union, Heater Union .

    If you need a hand locating the proper horsepower please contact our technical support team with amperage and voltage of your motor, this will ensure proper horsepower is selected and doesn't overload your motor.

    It is very common to find uprated horsepower markings on these pumps and wetend.
    You must go by the Amperage Sticker on the motor not stickers on the Wet End or Motor especially the BHP Stickers.

    Look on the label of the motor for the two amperages if you have a 2 speed pump or if its a single speed look for a single amperage. An example will look something like this: 10.0/3.5  The 10.0 is the high amperage in this example.
    115V Chart Below
    3/4HP 8-9 Amps
    1HP 11-12 Amps
    1.5HP 16-17 Amps
    2HP 19-20 Amps. 2HP would be very rare.

    230V Chart Below
    8.0 = 1 HP
    10.0 = 2 HP
    12.0 = 3 HP
    14.0 = 4 HP
    16.0 = 5 HP

    NOTE: Your pump or motor may say a different Horse Power than what you see here, DO NOT go by what is listed on the motor, go by the amperage on the label.

    NOTE for the NOTE: TRUST ME ON THIS, everybody lies about their Horse Power. But the amperage does not lie. Most people are told incorrectly that they have 5 HP pumps.
    If you do the math two 230V 5 HP pumps at 16 amps is: 32 amps. Plus a 5.5 KW heater is: + 21 amps.
    That means with both pumps running and the heater on it will draw  = 53 AMPS.
    I bet your HOT TUB is on a 50 AMP breaker…... Therefore contrary to what you have been told you DO NOT have a 5 or 6 or 7 Hp pump.
