Product Description

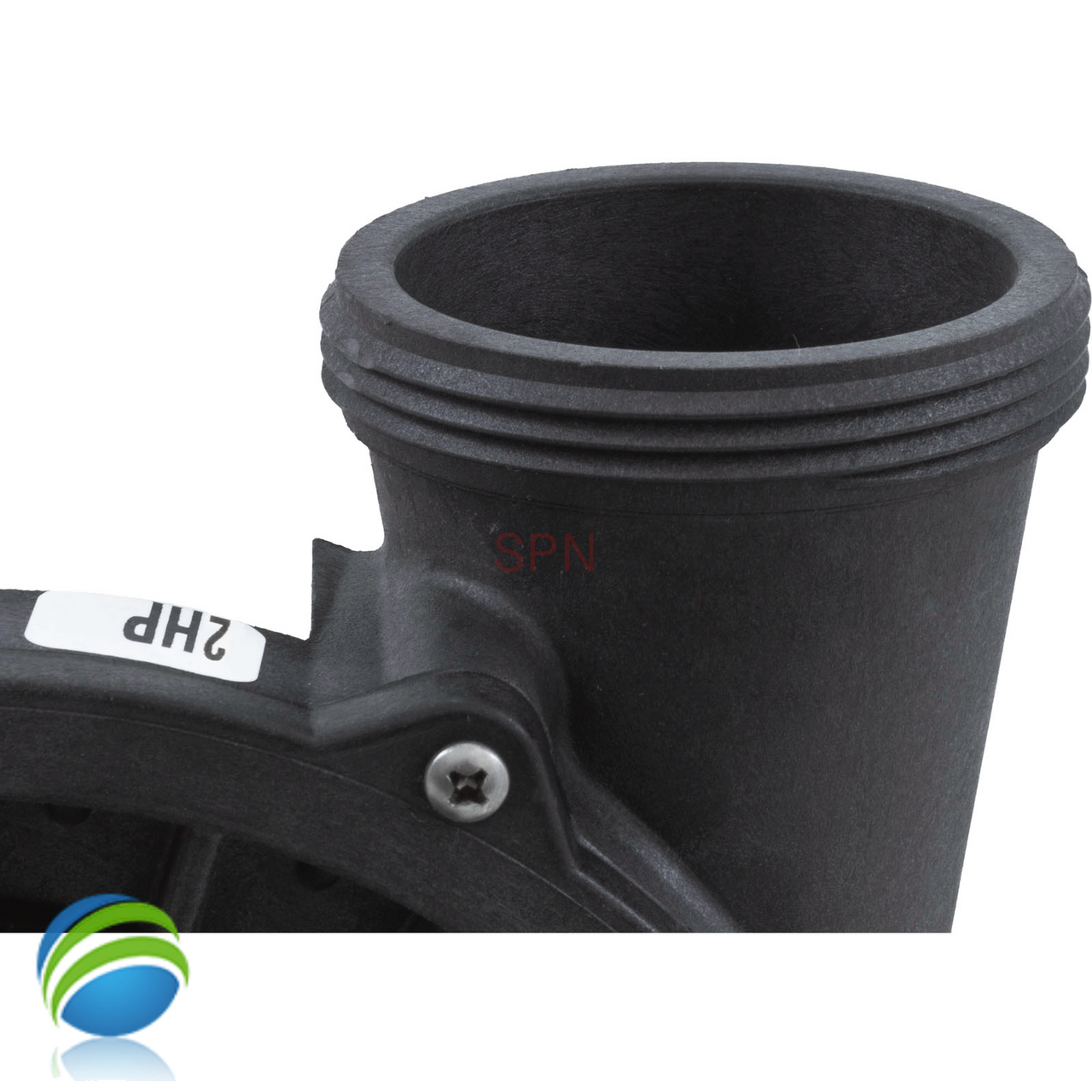

Waterway 2 HP Executive wetend for use with the 56 frame motors in the Pilates H2o and Shoerline Spas made from 2006-2008. This side discharge wetend has 2" unions that measure 3" across the threads and can be mounted in three positions on your motor. Used industry wide by many manufacturers but some common brands are Shoreline Spas, Pilates H20, Gulf Coast spas, Dynasty Spas and more.
This wetend includes the new impeller, shaft seals, wear ring and all o-rings. Everything needed to fix a leaking wetend and rebuild your pump assembly.
Tech Tip: The difference between a 48 or 56 Frame wet end is the spacing of the Motor Thru bolts. The 48 Frame will be 3 5/8" between or 5 3/16" in a X Pattern and the 56 Frame will be 4 1/8" Between or 5 3/4" in a X Pattern. This wetend is usually mated to an 8.8 or higher amperage motor.
| Manufacturer | Waterway |
| Pump Model | Executive |
| Motor Frame | 56 Frame Thru-Bolt |
| Drain Plug Location | 3,6,9 o`clock |
| Suction Style | Center |
| Suction Connection Type | Male Buttress Thread (mbt) |
| Suction Pipe Size | 2" |
| Discharge Style | Side |
| Discharge Connection Type | Male Buttress Thread (mbt) |
| Discharge Pipe Size | 2" |
| Horsepower | 2.0hp |
| Volute Fastening Type | 8 Screws |
