Product Description

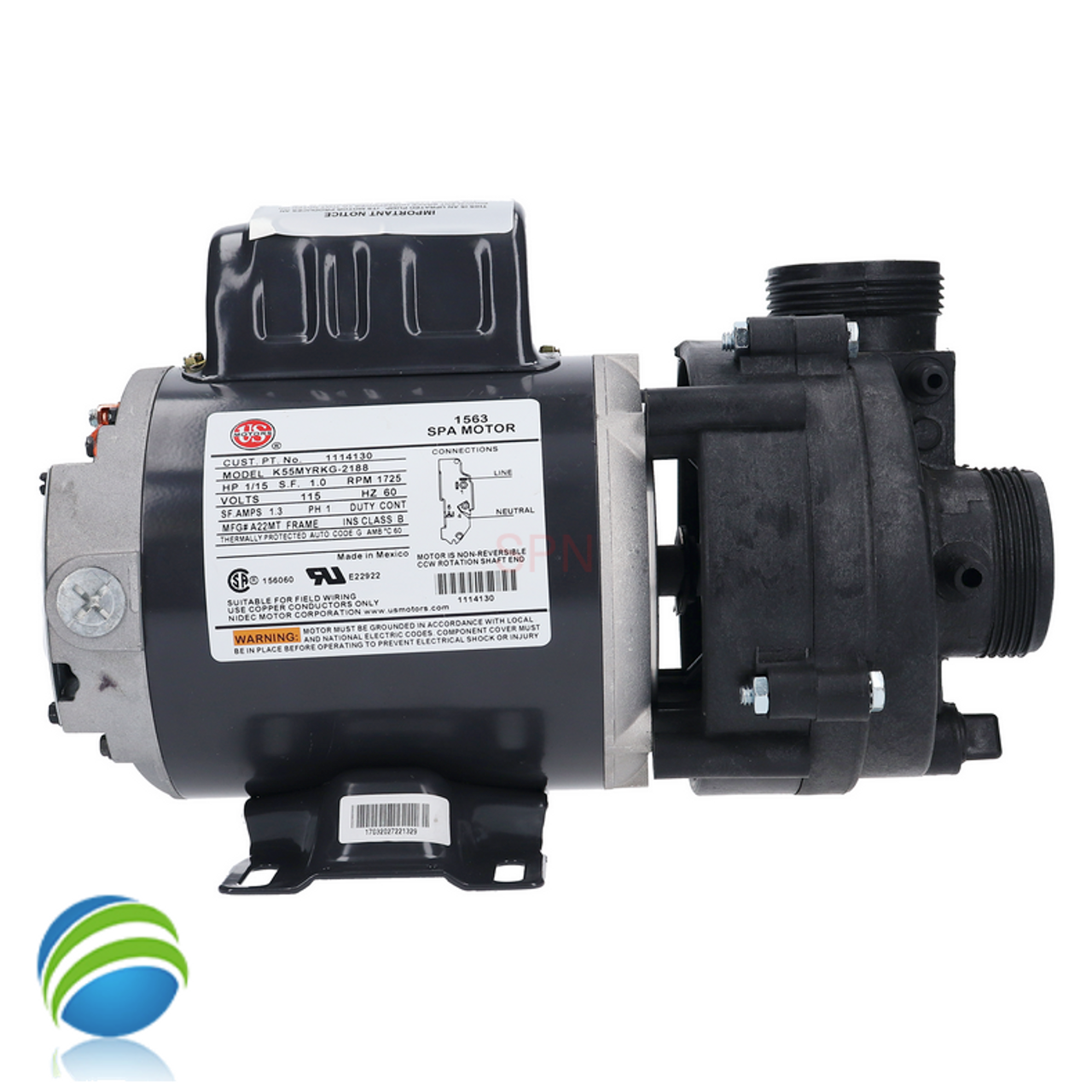

The Vico / BWG Ultima Ultra Jet circulation pumps use a space saving 1/15th HP motor (previously 1/12th HP) that provides optimal circulation for spas and hot tubs. The Ultima wet end is equipped with 3/8" barbs for use with an optional heat jacket (Barb needs to be drilled out if needed). 1-1/2" union fittings (2-3/8" thread diameter) with center suction and side discharge. The wetend is adjustable to one of three positions.
New redesigned versions of this pump now have a capacitor on the top of this motor which could play a part in your install if its in a tight spot.
| Accessory Pump Type | Circulation |
| Manufacturer | Balboa Water Group |
| Speed | 1 Speed (1-Spd) |
| Motor Voltage | 115v |
| Suction Style | Center |
| Suction Connection Type | Male Buttress Thread (mbt) |
| Suction Pipe Size | 1-1/2" |
| Discharge Style | Side |
| Discharge Connection Type | Male Buttress Thread (mbt) |
| Discharge Pipe Size | 1-1/2" |
| Horsepower | 1/15hp |
| Motor Frame | 48 Frame Thru-Bolt |
| Motor Amperage/Wattage | 1.3A |
