Product Description
Read This Note First!!
READ THIS FIRST:
NOTE: This Part will Fit Sundance® or Jacuzzi® Tubs with a Guangdong LX Wet End if you replace the entire Wet End..
Note: If your WUA400 Pump has a 6HP sticker on it you do not have a 6hp Pump as there is no such thing.. You were lied to buy the manufacturer.. There is only one WUA400 Wet End and this one is it..

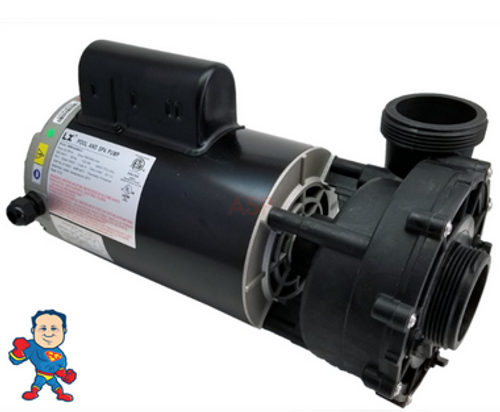

This 4 Horse Power 56 Frame Pump Wet End fits Intertek LX Brand Pump Motors only. These pumps usually have the part number WUA-400, WP-400 or LP-400 on the label.
It is about 7 1/4"" across the face of the pump, it measures about 7 3/8" from the bottom to the top of the pressure side of the volute, it also measures 4 13/16" from the back to front edge. The Suction and Pressure side thread fittings are called 2" x 2" but measure 3" from the edge of the thread to the edge of the thread.
This wet end comes complete with the Impeller, Seal and Wear Ring already installed..
NOTE: This Wet End looks a lot like an Aqua-Flo and a CMP Wet End but they do not interchange!
If your original Wet End has a Bleeder Barb and the heads of the Bleeder Screws in your old wet end have a spot for a flat screw driver you will need a new bleeder barb... If the original has a wing nut style you already have the newer style bleeder barb and will only need a new one if your original one breaks..
For the bleeder barb for this wet end Click Here: LX Pump 3/8" Barb
Note: This Wet End Fits Guangdong Chinese LX and LP series Pumps only Some Pump Part numbers are as follows: (WUA400-II, WUA400-I) (LP400) (WP400-II/,400-I)
